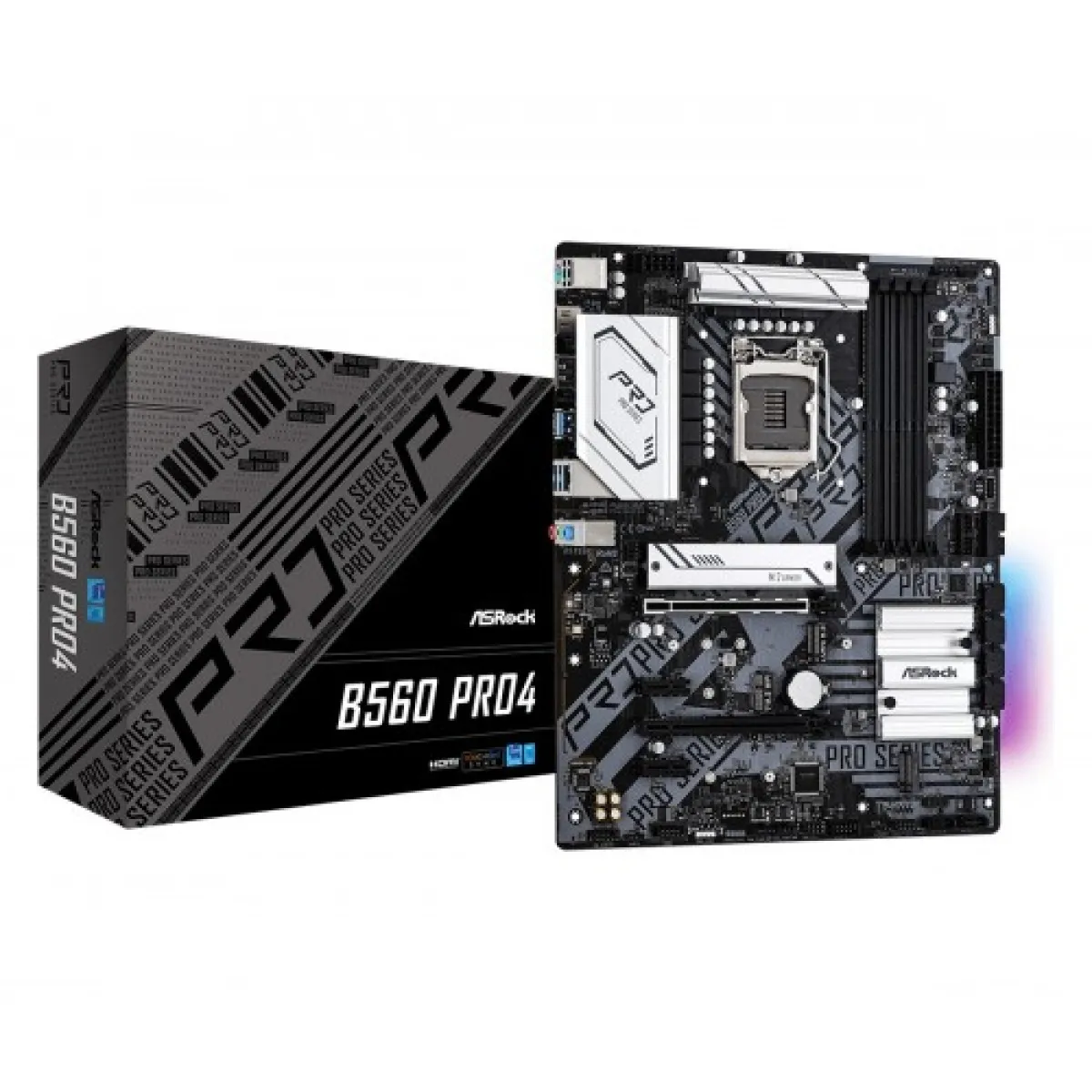

ASRock B560 Pro4 10th and 11th Gen ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- Supported CPU: Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) - Digi Power design - 8 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology
- Chipset: Intel B560
- Memory: Max. the capacity of system memory: 128GB
- Slots: 4 x DDR4 DIMM Slots
Genuine products with manufacturer warranty where applicable. Keep your invoice for warranty claims.
Contact us within the return window for defective or wrong items. Open-box returns may vary by category.
Description
High-Performance B560 Pro4 Motherboard for Gamers
ASRock B560 Pro4 Motherboard: Power Meets Performance
The ASRock B560 Pro4 is a robust ATX motherboard designed for both 10th and 11th Gen Intel processors, making it an excellent choice for gamers and professionals alike. With its advanced features and high-quality components, this motherboard provides a stable platform for building a powerful PC. Equipped with four DDR4 DIMM slots, it supports up to 128GB of RAM, ensuring smooth multitasking and enhanced performance during demanding tasks.
One of the standout features of the B560 Pro4 is its extensive connectivity options. With multiple USB 3.2 Gen1 and Gen2 ports, alongside HDMI and DisplayPort outputs, it offers flexibility for connecting various peripherals. The motherboard also supports PCIe 4.0, allowing for faster data transfers with compatible devices, making it future-proof.
In Bangladesh's growing gaming and professional market, the ASRock B560 Pro4 stands out with its durable build quality and reliable performance. The premium capacitors and high-quality chokes ensure longevity and stability, providing users with peace of mind for their investment. Whether you're building a workstation or a gaming rig, the B560 Pro4 offers unparalleled value and performance.
Upgrade Your PC with ASRock B560 Pro4 Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Supported CPU | Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) - Digi Power design - 8 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | Intel B560 |
| Memory | Max. the capacity of system memory: 128GB |
| Slots | 4 x DDR4 DIMM Slots |
| Audio | Connector: - 1 x Front Panel Audio Connector Rear Panel I/O: - HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST, VCCSA Voltage Multi-adjustment |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) |
| PCI | 11th Gen Intel Core Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x2 (PCIE3)) 10th Gen Intel Core Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x2 (PCIE3)) - 2 x PCI Express 3.0 x1 Slots |
| Graphics Specifications | |
| Graphics | 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built-In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc Dual graphics output: Support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports |
| Memory Specifications | |
| Supported Memory | - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC) - 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
| Type | Dual Channel DDR4 Memory Technology |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI Port |
| LAN Port (s) | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Supported Storage | 6 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) 1 x M.2 Socket (M2_3), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s) |
| USB (s) | Connector: - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) Rear Panel I/O: - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) |
| Internal I/O Connectors | Connector: - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 2 x RGB LED Headers - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) Rear Panel I/O: 3 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Special | |
| Bundled Software | - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
