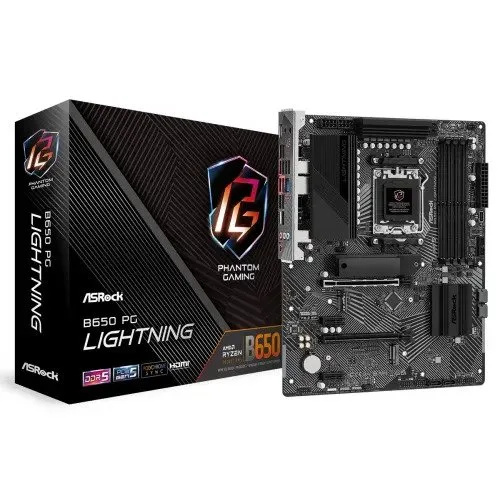

Buy ASRock B650 PG Lightning AMD AM5 ATX Motherboard Online
- Brand: ASRock
- Product Code: B650 PG Lightning
- Availability: Up Coming
Specification
| BASIC INFORMATION | |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB |
| Graphics | Integrated AMD RDNA 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Supported CPU | Supports AMD Socket AM5 Ryzen 7000 Series Processors |
| Chipset | AMD B650 |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| Expansion Slots | |
| PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 DIMMs |
| Supported Memory | - Dual Channel DDR5 Memory Technology - Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC) - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver) |
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| USB (s) | - 1 x USB 3.2 Gen2x2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-C (Front) - 9 x USB 3.2 Gen1 (7 Rear, 2 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
| Special | |
| Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
Experience Unmatched Performance with ASRock B650 PG Lightning Motherboard
The ASRock B650 PG Lightning AMD AM5 ATX Motherboard is a powerhouse designed for gamers and PC builders who demand the best. With its advanced features and robust build quality, this motherboard is perfect for high-performance computing. The AM5 socket supports the latest AMD Ryzen processors, offering enhanced processing power and speed. Support for dual-channel DDR5 memory ensures that you can take full advantage of fast data transfer rates, which is critical for gaming and heavy multitasking.
Equipped with PCIe 5.0 slots, the ASRock B650 PG Lightning allows for lightning-fast graphics card installations, enabling you to play the latest games at high settings without lag. Multiple M.2 slots provide ample storage options with support for NVMe SSDs, ensuring quick load times and a smooth gaming experience. Additionally, the motherboard features RGB lighting, allowing you to customize your build aesthetically.
Designed with user-friendly BIOS and overclocking capabilities, this motherboard is ideal for both novice builders and experienced enthusiasts alike. With its durable components and high-quality capacitors, the ASRock B650 PG Lightning guarantees longevity and reliability, making it a worthy investment for your next build.
Reviews (0)
Tags: ASRock, B650 PG Lightning, AMD, AM5, ATX, motherboard, gaming, DDR5, Ryzen 7000, PCIe 5.0, high performance, Bangladesh, PC building, overclocking, RGB lighting
