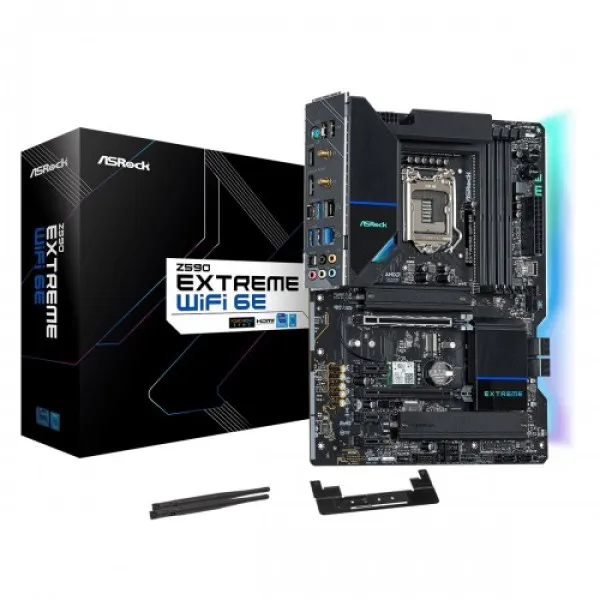

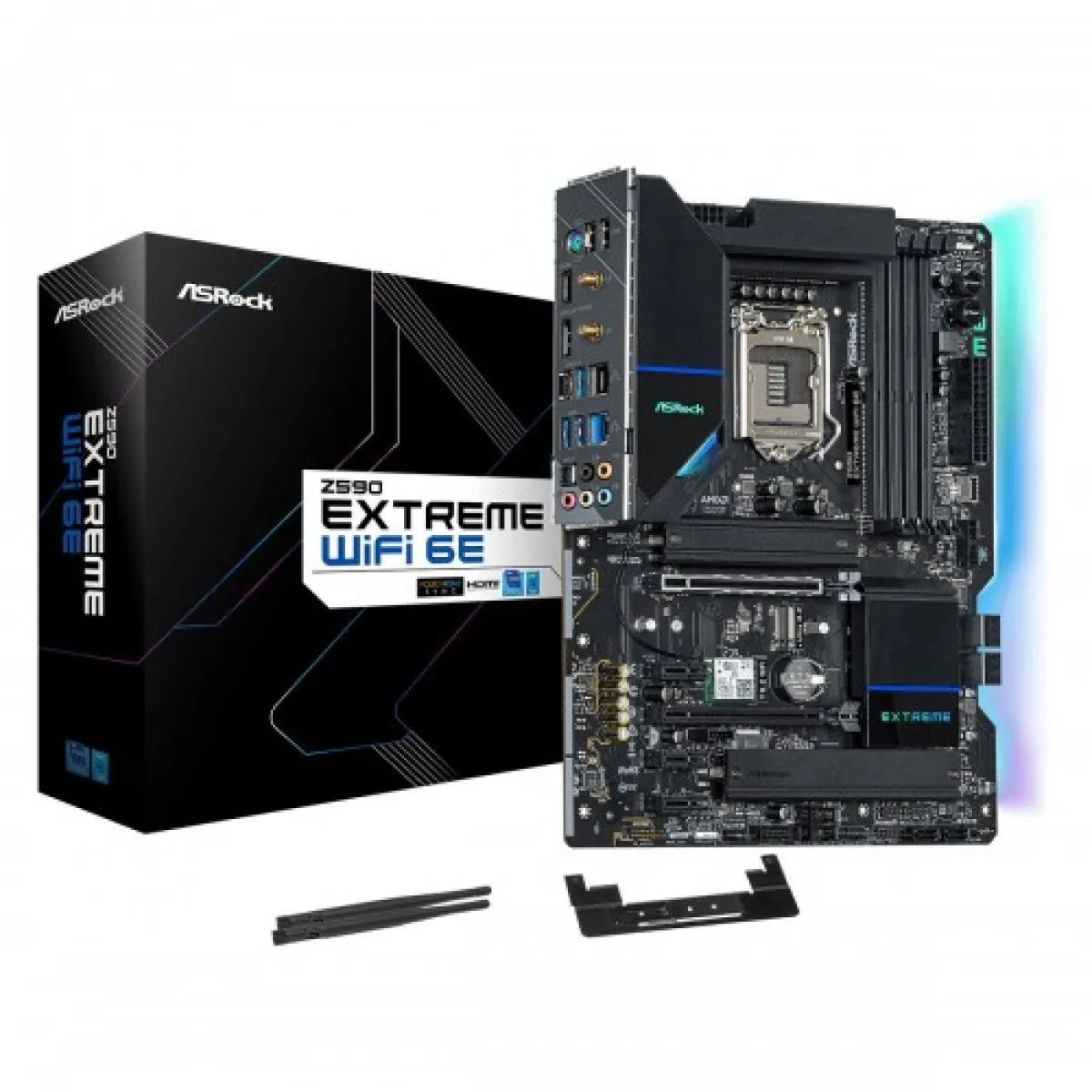

ASRock Z590 Extreme Wi-Fi 6E 10th and 11th Gen ATX Motherboard (No Warranty)
- Brand:ASRock
- Product Code: Z590 Extreme WiFi 6E
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
|---|---|
| Supported CPU | - Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) - Digi Power design - 14 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel K-Series unlocked CPUs |
| Chipset | Intel Z590 |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment |
| Expansion Slots | |
| M.2 Socket | - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| PCI | 11th Gen Intel Core Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3)) 10th Gen Intel Core Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3)) - 3 x PCI Express 3.0 x1 Slots - Supports AMD Quad CrossFireX and CrossFireX - 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe |
| Memory Specifications | |
| Slots | 4 x DDR4 DIMM Slots |
| Supported Memory | - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC) - 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) - 1 x Power Button with LED - 1 x Reset Button with LED |
| LAN Port (s) | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V) - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Supported Storage | - 6 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header |
| USB (s) | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) |
| Power | |
| Type | Dual Channel DDR4 Memory Technology |
| WARRANTY | |
| Manufacturing Warranty | No Warranty |
Description
ASRock Z590 Extreme Wi-Fi 6E: Elevate Your Gaming and Computing Experience
The ASRock Z590 Extreme Wi-Fi 6E motherboard stands as a pinnacle of innovation and performance for both 10th and 11th generation Intel processors. Designed with the latest technology and user-centric features, this ATX motherboard is engineered to meet the demands of gamers, content creators, and tech enthusiasts alike. With integrated Wi-Fi 6E capabilities, you can experience ultra-fast wireless connectivity, ensuring you stay ahead of the game with minimal lag and maximum efficiency.
Comprehensive Connectivity: Equipped with multiple PCIe slots, USB 3.2 Gen 2 ports, and M.2 slots, the Z590 Extreme allows for extensive customization and upgrades. Whether you're looking to install high-speed SSDs or powerful graphics cards, this motherboard has got you covered. The advanced thermal design ensures stability even during intense gaming sessions, keeping your system cool and performing optimally.
Why Choose ASRock Z590 Extreme? The motherboard's robust build quality is complemented by premium capacitors and a reinforced PCIe slot, ensuring durability and longevity. Users can leverage the ASRock Polychrome SYNC technology to customize their RGB lighting, creating an aesthetically pleasing setup that reflects personal style. Furthermore, the intuitive BIOS interface simplifies overclocking and system customization, making it accessible even for novice users.
The Z590 Extreme is perfect for gaming setups, professional workstations, and multimedia editing rigs. With its ability to handle demanding applications and multitasking, this motherboard is an investment that pays dividends in productivity and performance.
In conclusion, the ASRock Z590 Extreme Wi-Fi 6E motherboard is not just a component; it’s a gateway to superior performance and incredible user experiences. Choose this motherboard today to unlock the full potential of your 10th or 11th generation Intel CPU and enjoy seamless connectivity, expansive upgrade options, and unmatched reliability.
