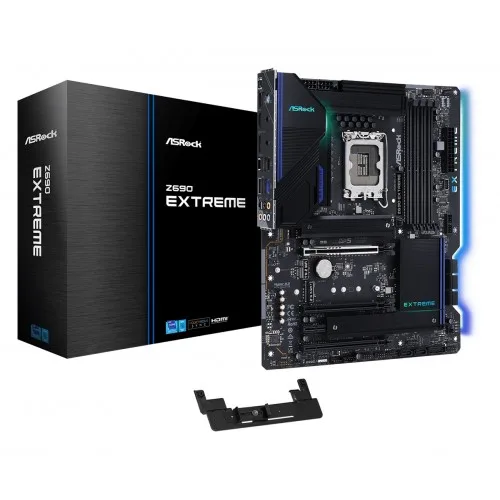

ASRock Z690 Extreme 13th Gen & 12th Gen ATX Motherborad (No Warranty)
- Brand:ASRock
- Product Code: Z690 Extreme
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
|---|---|
| SpecialFeatures | ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - 60A SPS (Smart Power Stage) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Shaped PCB Design - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB 2.5G LAN 802.11ax Wi-Fi 6E ASRock Auto Driver Installer ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Ultra USB Power ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) |
| Supported CPU | - Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 13 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | Intel Z690 |
| Slots | 4 x DDR4 DIMM Slots |
| Audio | - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| BIOS | - 256Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
| Graphics Specifications | |
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @60Hz / 5K (5120x3200) @120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button |
| Supported Storage | - 8 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/ 2242/ 2260/ 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| USB (s) | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) |
| Wireless Communication module | Supports ECC UDIMM memory modules (operate in non-ECC mode) |
| WARRANTY | |
| Manufacturing Warranty | No Warranty |
Description
ASRock Z690 Extreme 13th Gen & 12th Gen ATX Motherboard Overview
The ASRock Z690 Extreme motherboard is designed to cater to the needs of gamers, content creators, and tech enthusiasts alike. This high-performance ATX motherboard offers compatibility with both Intel's 13th and 12th generation processors, ensuring that you can take full advantage of the latest advancements in technology. With its robust features and extensive connectivity options, the Z690 Extreme is engineered to deliver exceptional performance and reliability.
Benefits of the ASRock Z690 Extreme
The Z690 Extreme motherboard is equipped with advanced cooling solutions, ensuring optimal thermal management even during intense gaming sessions or heavy workloads. Its premium capacitors and power phases allow for stable power delivery, resulting in enhanced overclocking capabilities. The motherboard supports DDR5 memory, providing superior speed and bandwidth for demanding applications. Additionally, with PCIe 5.0 support, users can experience lightning-fast data transfer rates, making it an ideal choice for high-performance graphics cards and NVMe SSDs.
Use Cases
This motherboard is perfect for building a high-end gaming rig, a powerful workstation for video editing, or a reliable home server. Gamers will appreciate the motherboard’s compatibility with the latest GPUs and its ability to handle multiple graphics cards in SLI or CrossFire configurations. Content creators can leverage the extensive I/O options, including Thunderbolt 4 support, to connect high-speed peripherals and external storage devices efficiently.
Why Buy the ASRock Z690 Extreme?
Choosing the ASRock Z690 Extreme means investing in a product that combines cutting-edge technology with longevity and durability. Its build quality and extensive feature set not only make it a powerful motherboard but also provide excellent value for money in the highly competitive market. Whether you are looking to build a new system or upgrade your existing setup, the Z690 Extreme is a decision you won’t regret.
