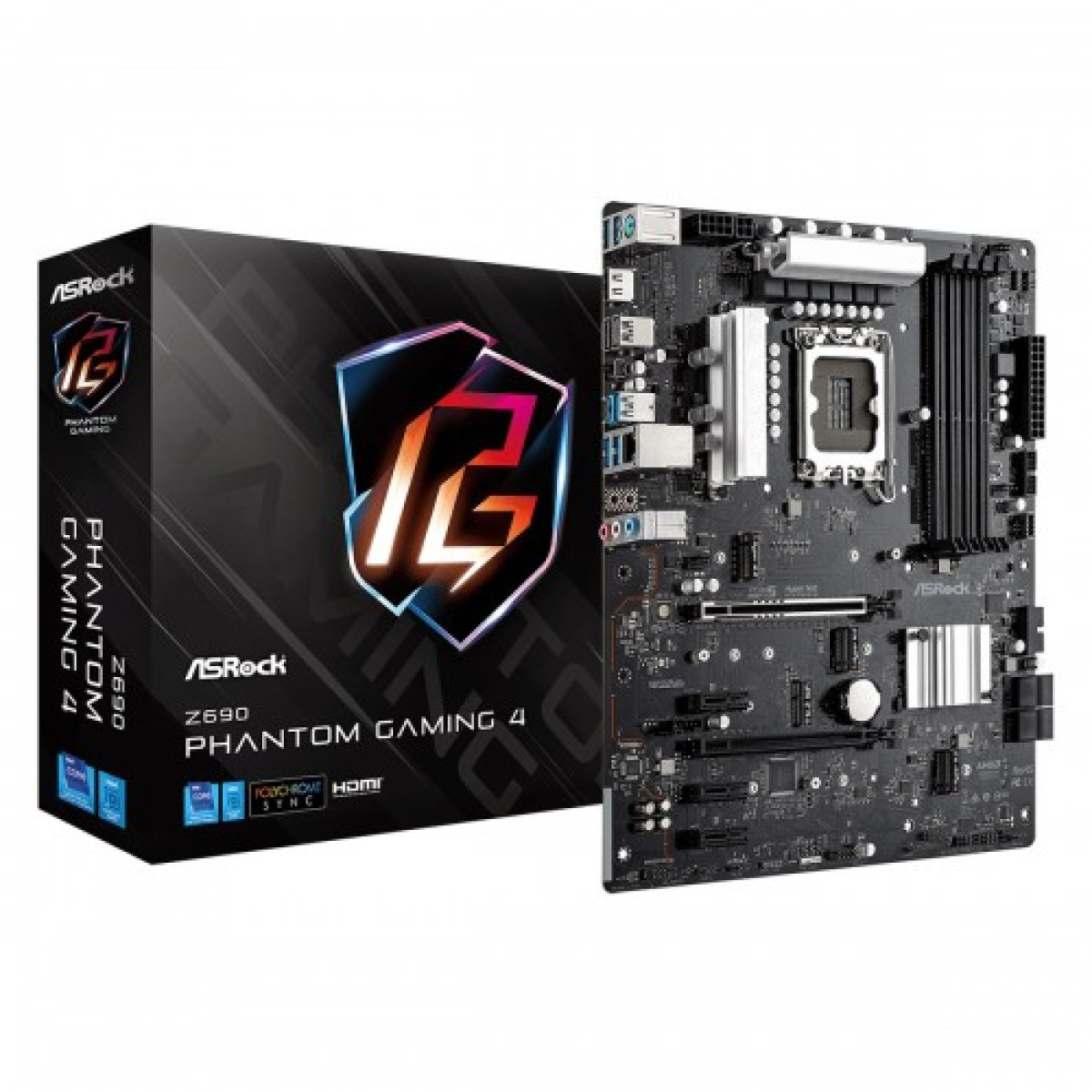

ASRock Z690 Phantom Gaming 4 12th Gen ATX Motherboard
Key highlights
- Form Factor: - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid Capacitor design
- SpecialFeatures: ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - Premium Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Steel Slot ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
- Supported CPU: - Supports 12th Gen Intel Core Processors (LGA1700) - 9 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology
- BIOS: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake-up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
- Type: Dual Channel DDR4 Memory Technology
Description
High-Performance ATX Motherboard for Gaming and Beyond
ASRock Z690 Phantom Gaming 4: Unleash the Power of 12th Gen Intel Processors
The ASRock Z690 Phantom Gaming 4 ATX Motherboard is designed for gamers and PC enthusiasts seeking high-performance and cutting-edge technology. Built for the 12th Generation Intel Core processors, this motherboard supports the latest advancements in computing with its LGA 1700 socket. Experience extreme performance with PCIe 5.0 support, offering unparalleled bandwidth for graphics cards and storage devices. The motherboard features a sleek black and silver design, ensuring it complements any gaming setup.
Key benefits include robust power delivery with a 12 + 1 + 1 phase design, ensuring stable operation even during intense gaming sessions. With four DDR4 DIMM slots, you can achieve a maximum memory capacity of 128GB, perfect for multitasking and demanding applications. The ASRock Z690 Phantom Gaming 4 also includes multiple M.2 slots for lightning-fast NVMe SSDs, enhancing your system's loading times and overall efficiency.
Additionally, advanced cooling solutions are integrated to maintain optimal temperatures, allowing for sustained performance. The motherboard is equipped with customizable RGB lighting, adding a personal touch to your build. Whether you're a casual gamer or a hardcore enthusiast, the ASRock Z690 Phantom Gaming 4 is the ideal choice for building your dream PC.
Upgrade Your Gaming Setup with ASRock Z690 Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid Capacitor design |
| SpecialFeatures | ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - Premium Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Steel Slot ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Supported CPU | - Supports 12th Gen Intel Core Processors (LGA1700) - 9 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake-up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
| Type | Dual Channel DDR4 Memory Technology |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI Port |
| LAN Port (s) | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE |
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
