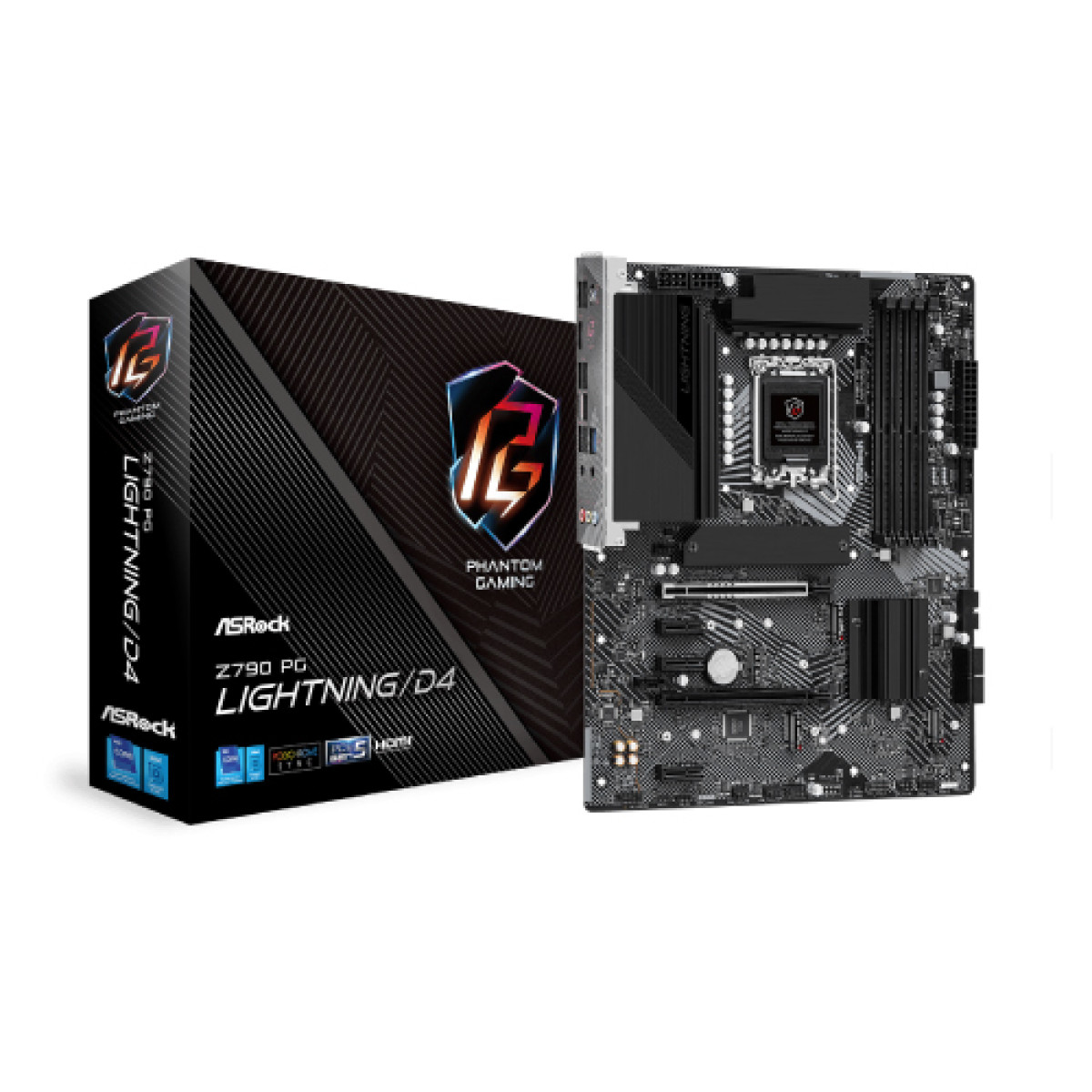

ASRock Z790 PG Lightning/D4 13th Gen & 12th Gen ATX Motherboard
- Brand:ASRock
- Product Code: Z790 PG Lightning/D4
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
|---|---|
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
| Supported CPU | - Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) |
| Chipset | Intel Z790 |
| Slots | 4 x DDR4 DIMM Slots |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Expansion Slots | |
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode - 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE3 and PCIE5) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI Port |
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| USB (s) | - 1 x USB 3.2 Gen2x2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 9 x USB 3.2 Gen1 Type-A (5 Rear, 4 Front) - 3 x USB 2.0 (1 Rear, 2 Front) |
| Special | |
| Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
ASRock Z790 PG Lightning/D4: Unleash Your Gaming Potential
The ASRock Z790 PG Lightning/D4 ATX Motherboard is designed for gamers and PC builders who demand performance and reliability. Supporting both 13th and 12th Gen Intel processors, this motherboard combines cutting-edge technology with exceptional features. With its sleek design and advanced thermal management, it ensures optimal performance even during intense gaming sessions. Experience lightning-fast data transfer with PCIe 5.0 and USB 3.2 Gen 2 connectivity, allowing you to maximize your gaming and productivity tasks. Enhanced audio capacitors provide an immersive sound experience, making it perfect for gaming and media consumption. The motherboard also features customizable RGB lighting, enabling you to create a unique aesthetic for your build.
Equipped with robust power delivery and high-quality components, the ASRock Z790 PG Lightning/D4 ensures stability and longevity. Whether you're a competitive gamer or a content creator, this motherboard is engineered to handle demanding applications with ease. Upgrade your system with support for DDR4 memory, delivering high-speed performance and multitasking capabilities. Invest in your gaming rig with a motherboard that stands out in both performance and design.
