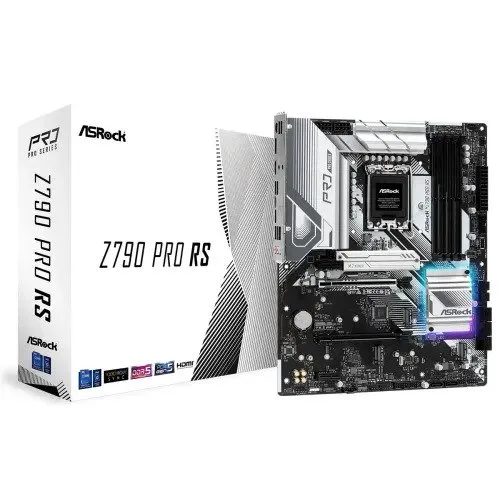

ASRock Z790 Pro RS ATX Motherboard
- Brand:ASRock
- Product Code: Z790 Pro RS
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
|---|---|
| Raid controller | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| SpecialFeatures | Superb Productivity - PCIe Gen5 (Graphics) Rock-Solid Durability - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| Supported CPU | - Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) |
| Chipset | Intel Z790 |
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Type | DDR5 |
| Expansion Slots | |
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
| Graphics Specifications | |
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | - Dual Channel DDR5 Memory Technology - Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC) - Supports Intel Extreme Memory Profile (XMP) 3.0 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | - 1 x eDP Signal Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| USB (s) | - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
| Special | |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
Introducing the ASRock Z790 Pro RS ATX Motherboard
The ASRock Z790 Pro RS ATX Motherboard is engineered for the modern gamer and professional user who demands high performance and reliability. This motherboard is built on the Intel Z790 chipset, designed to support the latest 13th Gen Intel Core processors, providing unmatched speed and efficiency. With its robust power delivery system and cutting-edge features, the Z790 Pro RS is ready to handle intensive workloads and gaming sessions without breaking a sweat.
Key Features and Benefits: The Z790 Pro RS boasts a 14-phase power design that ensures stable power delivery even during overclocking. Equipped with 4 DIMM slots, this motherboard supports up to 128GB of DDR5 RAM, allowing users to run multiple applications and games simultaneously without lag. The inclusion of PCIe 5.0 slots means you can take advantage of the latest graphics cards and SSDs, enhancing your system's overall performance.
One of the standout features is the premium capacitors and alloy chokes that enhance the durability of the motherboard. This is particularly advantageous in Bangladesh's tropical climate, where electronic devices often face heat-related issues. The ASRock Z790 Pro RS also includes advanced cooling solutions with multiple fan headers and a robust heatsink design to ensure optimal thermal performance.
Use Cases: Whether you're a hardcore gamer, content creator, or just a tech enthusiast, the ASRock Z790 Pro RS caters to all. Its high-speed network capabilities, including 2.5G LAN and WiFi 6E support, ensure that you can download and stream content without interruptions. This makes it an ideal choice for gamers who participate in online competitions or content creators who need to upload large files quickly.
Why Choose ASRock Z790 Pro RS?: Investing in the ASRock Z790 Pro RS is a decision that guarantees not only performance but also longevity. With a 3-year warranty provided in Bangladesh, you can have peace of mind knowing that your investment is protected. This motherboard stands out against competitors due to its combination of features, build quality, and customer support, making it a smart choice for anyone looking to build or upgrade their PC.
