Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 21.5cm
- Graphics: Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon
- Chipset: AMD B450
- BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- M.2 Socket: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) Actual support may vary by CPU. Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
Description
Affordable GIGABYTE B450M DS3H WIFI Motherboard for Gamers

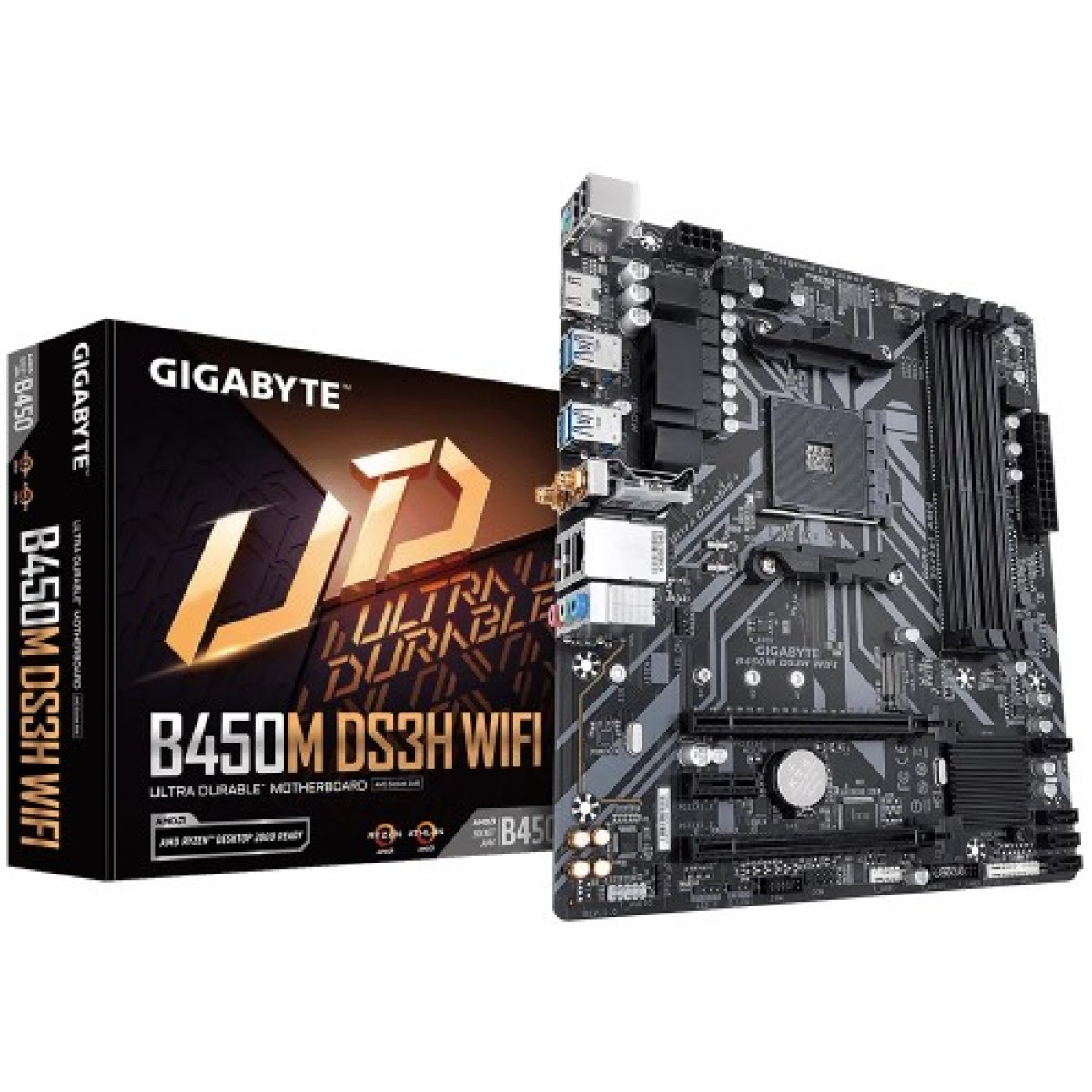

GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard
The GIGABYTE B450M DS3H WIFI AM4 motherboard is your ideal partner for building a powerful and efficient PC setup. Designed for AMD Ryzen processors, this motherboard guarantees exceptional performance and high-speed connectivity. With its compact Micro ATX form factor, it fits seamlessly into smaller cases without compromising on features or expandability.
Integrated Wi-Fi allows for easy wireless networking, making it perfect for users looking to minimize cable clutter. The motherboard supports dual-channel DDR4 memory up to 3200MHz, ensuring smooth multitasking and enhanced gaming experiences. Additionally, the Smart Fan 5 technology provides advanced cooling solutions, maintaining optimal temperatures during intensive tasks.
Multiple connectivity options including USB 3.1 Gen 1, HDMI, and audio outputs ensure compatibility with a wide range of peripherals. The durable build quality, reinforced PCIe slots, and high-quality capacitors enhance longevity and reliability, making it a smart investment for any PC builder.
Get High Performance with GIGABYTE B450M DS3H WIFI
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| Graphics | Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon |
| Chipset | AMD B450 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) Actual support may vary by CPU. Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.) |
| Memory Specifications | |
| Maximum Memory | 128 GB |
| Supported Memory | Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| PORTS, CONNECTORS & SLOTS | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) Actual support may vary by CPU. Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. |
| USB (s) | CPU: 4 x USB 3.1 Gen 1 ports on the back panel Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Wireless Communication module | Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate Actual data rate may vary depending on environment and equipment. |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
