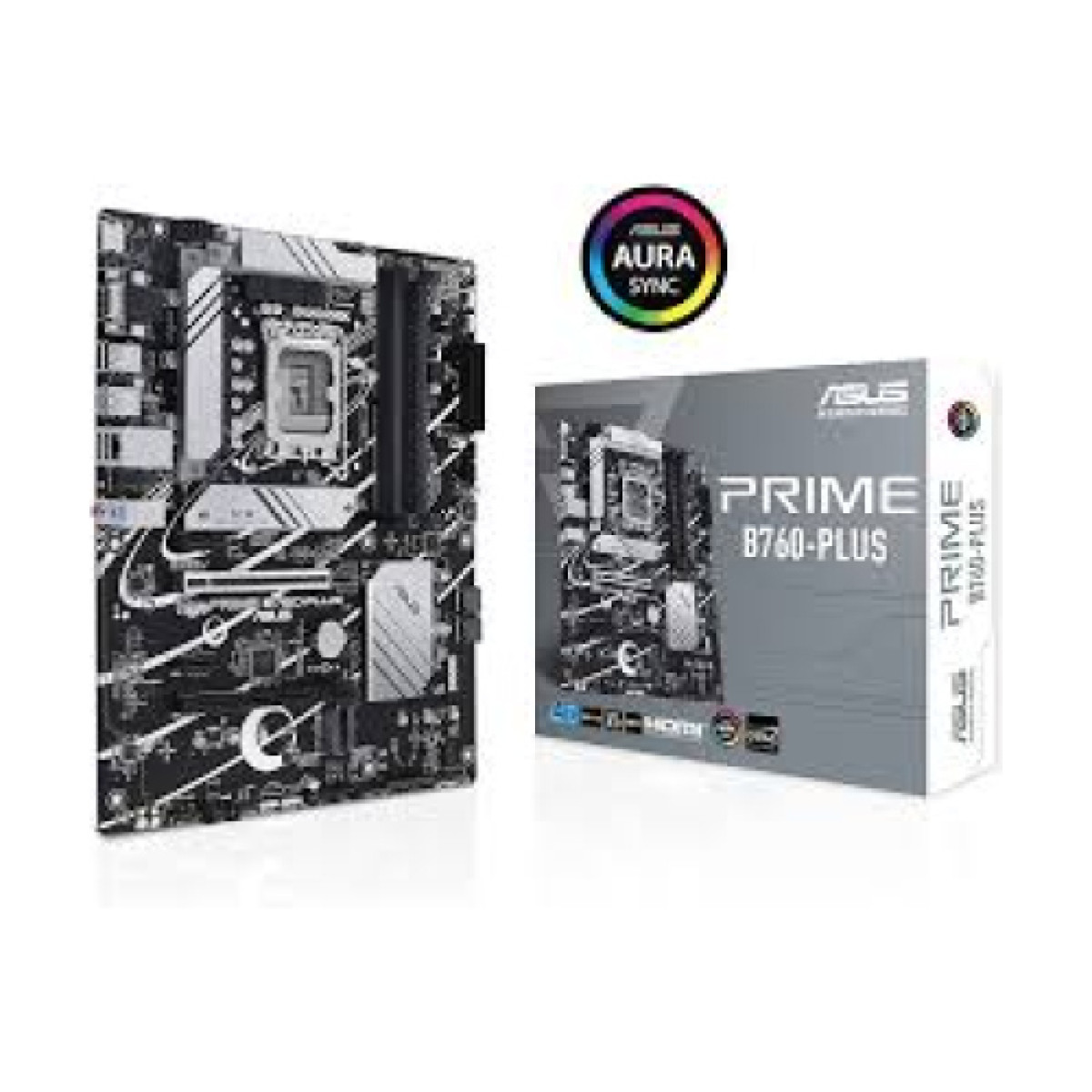

ASUS PRIME B760-PLUS ATX Motherboard for Optimal Performance
- Brand:Asus
- Product Code: PRIME B760-PLUS
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|---|---|
| Raid controller | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| Audio | 3 x Audio jacks |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Connectivity | |
| VGA | 1 x VGA port |
| Expansion Slots | |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4.) 1 x VGA port 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.) |
| Memory Specifications | |
| Maximum Memory | 192GB |
| Supported Memory | DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet Wireless Communication module Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Feature | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
ASUS PRIME B760-PLUS ATX Motherboard Overview
The ASUS PRIME B760-PLUS ATX Motherboard is a perfect blend of performance, reliability, and expandability, designed for gamers, content creators, and tech enthusiasts alike. This motherboard supports Intel's latest 12th and 13th generation processors, ensuring you have the power to handle any task with ease. With its robust build quality and advanced cooling solutions, this motherboard is engineered to provide exceptional performance even under heavy workloads.
Benefits of the ASUS PRIME B760-PLUS
One of the standout features of the ASUS PRIME B760-PLUS is its comprehensive cooling system, which includes multiple fan headers and dedicated cooling options for your CPU. This ensures that your system remains cool and stable, even during demanding tasks such as gaming or video editing. Furthermore, the motherboard supports DDR5 memory, allowing for higher speeds and improved efficiency, which translates into a smoother computing experience.
Use Cases
This motherboard is particularly well-suited for users who require high performance for demanding applications. Gamers will appreciate the enhanced frame rates and responsiveness, while content creators will benefit from faster render times and improved multitasking capabilities. Additionally, the motherboard’s compatibility with various graphics cards and high-speed storage options makes it an excellent choice for anyone looking to build a future-proof gaming rig or a powerful workstation.
Why Choose the ASUS PRIME B760-PLUS?
In the competitive market of motherboards, the ASUS PRIME B760-PLUS stands out due to its combination of features, performance, and price. Customers in Jashore, Bangladesh, will appreciate the availability of local support and warranty services, making it a smart choice for a reliable long-term investment. With its user-friendly installation process and comprehensive documentation, even first-time builders will find it easy to set up their systems.
