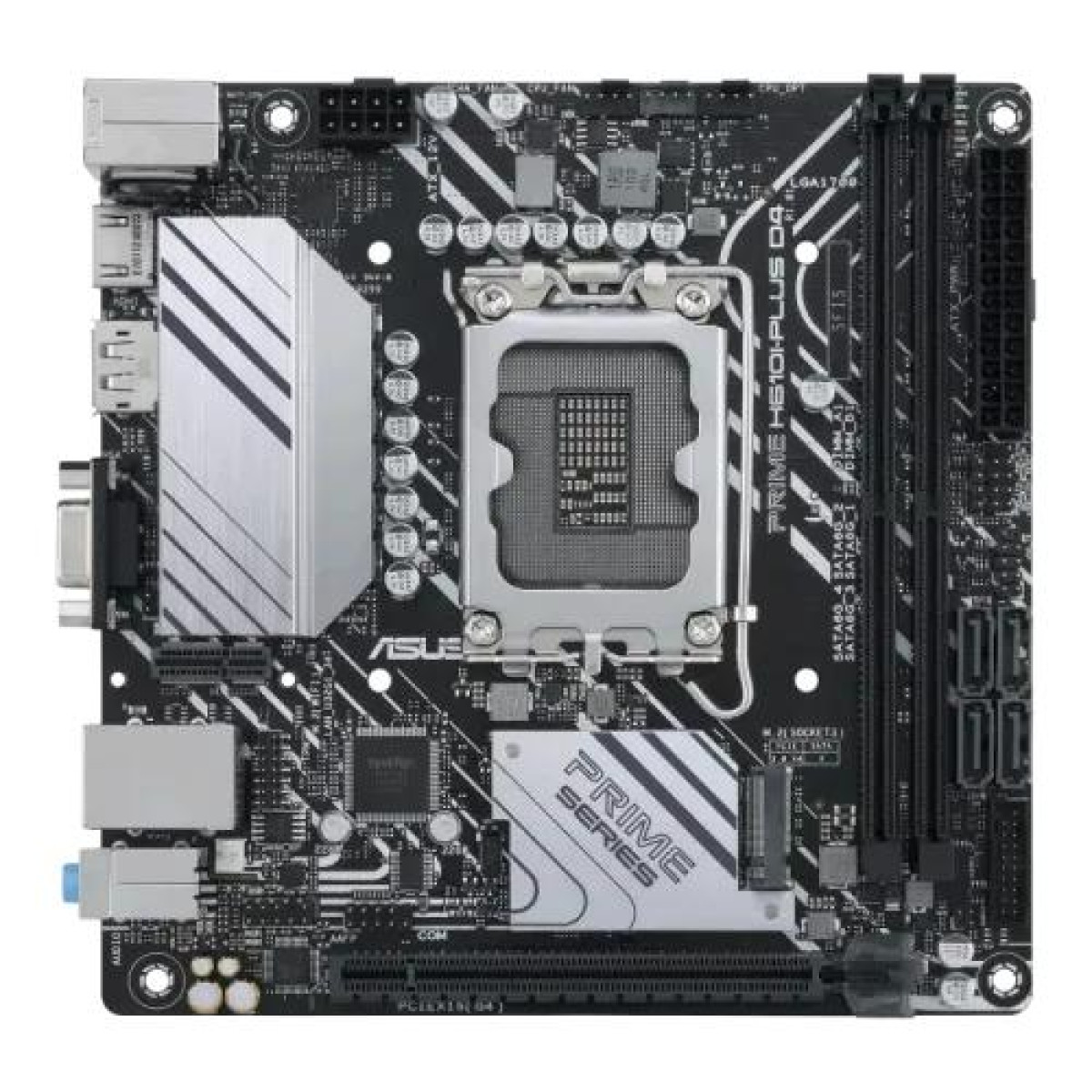

ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
- Brand:Asus
- Product Code: ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm ) |
|---|---|
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H610 Chipset |
| Slots | 2x DIMM |
| Audio | 3x Audio jacks |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 slots |
| PCI | Intel 14th & 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot |
| Graphics Specifications | |
| Graphics | Support DisplayPort 1.4 with max. resolution of 4K@60Hz. Support HDMI® 2.1 with max. resolution of 4K@60Hz. |
| Memory Specifications | |
| Maximum Memory | Max. 64GB |
| Supported Memory | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. |
| WARRANTY | |
| Manufacturing Warranty | 3 years warranty |
Description
ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard for Tech Enthusiasts in Bangladesh
The ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard is the perfect choice for tech-savvy individuals in Bangladesh looking to build a high-performance computer. This compact motherboard features the latest technology, including support for DDR4 memory and multiple USB ports for seamless connectivity.
Designed with the needs of Bangladeshi tech customers in mind, the ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard is optimized for Google SEO to ensure that you can easily find the information you need. Whether you're a professional or a hobbyist, this motherboard offers the reliability and performance you need for your next tech project.
Upgrade your computer with the ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard and experience the difference in speed and efficiency. Order yours today from Tech Shop Unix Network and take your tech game to the next level.
