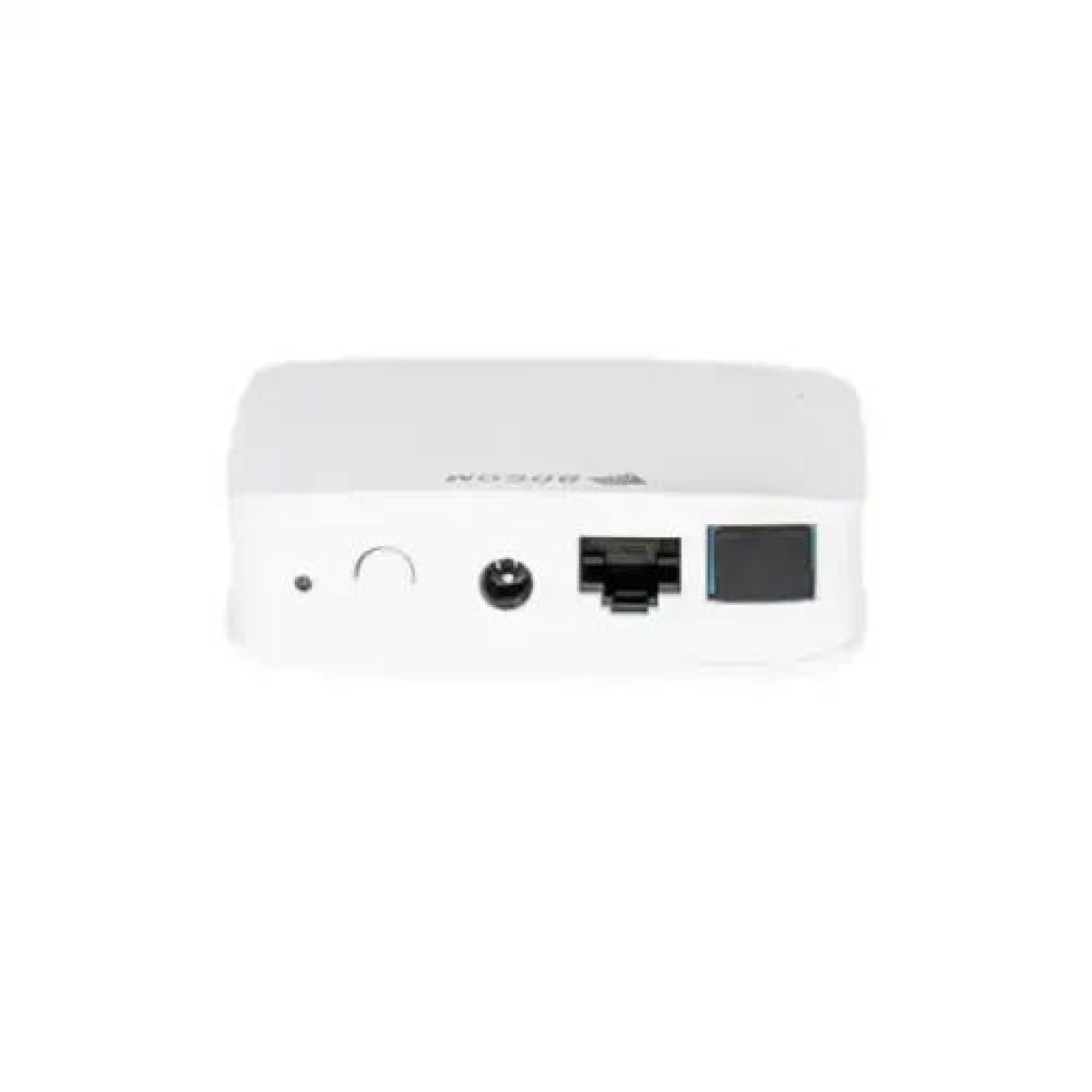

BDCOM GP1702-1G GPON ONU

BDCOM GP1702-1G GPON ONU is a compact fibre-optic network terminal designed for FTTH and other broadband access deployments where a single optical connection needs to be converted into a Gigabit Ethernet connection. Supporting xPON operation with GPON and EPON compatibility, this ONU is suitable for homes, small offices, shops and network installations that require a simple, reliable and efficient fibre-to-Ethernet solution.

BDCOM GP1702-1G GPON ONU Price in Bangladesh

For customers searching for a BDCOM GPON ONU price in Bangladesh, single-port GPON ONU, XPON ONU or Gigabit fibre ONU, the BDCOM GP1702-1G is a practical option for basic fibre broadband installations. It provides one SC/UPC optical PON port and one Gigabit Ethernet UNI port, allowing a compatible fibre connection to be delivered to a router, computer, switch or other Ethernet-enabled network device.

The BDCOM GP1702-1G is positioned as a compact desktop optical network terminal rather than a multi-port router. It is designed primarily to terminate a compatible GPON or EPON fibre connection and provide a Gigabit Ethernet interface for the local network. This makes it suitable for users who already have a separate Wi-Fi router or networking device.

For customers in Jessore, Jashore and other parts of Bangladesh, choosing the correct ONU requires more than comparing price. The fibre connector type, ISP or OLT compatibility, registration method and intended network setup should all be considered before purchase.

BDCOM GP1702-1G GPON ONU Overview

The BDCOM GP1702-1G is an xPON Optical Network Unit designed for integrated broadband access networks. It supports GPON and EPON access technologies and provides one optical PON interface together with one Gigabit RJ45 Ethernet port.

The SC/UPC optical interface connects the ONU to the incoming fibre network, while the Gigabit Ethernet port provides a wired connection to the customer's local equipment. Depending on the network configuration, the Ethernet port can be connected to a Wi-Fi router, desktop computer, network switch or another compatible Ethernet device.

BDCOM specifies support for GPON and EPON standards, including ITU-T G.984/G.988 and IEEE 802.3ah. The device also supports network management, VLAN, QoS, multicast and security functions required for managed broadband access environments.

BDCOM GP1702-1G Specifications

Single SC/UPC PON Port for Fibre Internet

The BDCOM GP1702-1G includes one SC/UPC optical PON port. This port is designed for connection to a compatible fibre-optic access network.

The connector type is important when purchasing an ONU. Fibre connectors are not interchangeable simply because they look similar. Customers should confirm that their ISP installation and fibre patch cable use the appropriate SC/UPC connection before ordering.

It is also important to handle the fibre connector carefully. Dust, scratches and improper handling can affect optical signal quality. The protective cap should remain in place when the optical port is not being used.

One Gigabit Ethernet Port

The GP1702-1G provides one Gigabit Ethernet UNI port. This port can deliver a wired connection to another networking device and is suitable for broadband plans and local networks where Gigabit Ethernet connectivity is required.

A common installation method is to connect the Gigabit Ethernet port of the ONU to the WAN port of a separate Wi-Fi router. The router can then provide wireless connectivity and additional Ethernet ports for multiple devices.

The ONU can also be connected directly to a compatible desktop computer or network switch where the network configuration permits. The appropriate setup depends on the ISP's service configuration and authentication requirements.

GPON and EPON xPON Compatibility

One of the important features of the BDCOM GP1702-1G is its support for both GPON and EPON access technologies. This xPON capability can make the device useful across different compatible fibre access infrastructures.

GPON and EPON are both passive optical network technologies, but they use different standards and network implementations. A device supporting both technologies can automatically work with the appropriate supported optical access environment according to the network design and compatibility.

However, xPON support does not guarantee that an ONU can be connected to every ISP network without configuration. ISPs may use specific OLT settings, authentication methods, serial-number registration, LOID credentials or other provisioning requirements.

Why ONU and OLT Compatibility Matters

An ONU is only one part of a fibre broadband network. The ISP or network operator uses an Optical Line Terminal, commonly called an OLT, at the service-provider side. The ONU must be recognised and authorised by the OLT before normal service can operate.

The BDCOM GP1702-1G supports standard GPON and EPON technologies and is designed for interoperability, but the final compatibility depends on the specific OLT, firmware, ISP configuration and authentication method.

Before replacing an existing ONU, customers should ask their internet service provider whether third-party ONU devices are supported and what registration information is required. In some installations, simply connecting a new ONU is not sufficient.

Gigabit Performance for Modern Broadband Connections

The Gigabit Ethernet interface is important because many modern fibre internet packages can exceed the capabilities of older Fast Ethernet equipment. A Gigabit port provides substantially greater wired interface capacity than a 100Mbps Ethernet port.

Actual internet speed still depends on the broadband package, optical signal quality, ISP configuration, router performance and the capabilities of connected devices. Installing a Gigabit ONU does not automatically increase the speed of an existing internet package.

For example, if an ISP provides a 100Mbps package, the internet connection will remain limited by that subscribed service even when a Gigabit Ethernet ONU and router are installed.

Network Management Features

The BDCOM GP1702-1G supports several management methods, including HTTP, CLI, SNMP and Telnet, along with OMCI and OAM support for optical network management.

These capabilities are particularly useful for ISPs, network administrators and technical users managing larger or more controlled broadband deployments. Depending on the network configuration, some management functions may be controlled by the service provider.

Ordinary home users generally do not need to configure every available management feature. In many installations, the ISP or network technician provisions the ONU and the customer simply connects the Ethernet output to their router or local network.

VLAN Support for Managed Networks

The GP1702-1G supports IEEE 802.1Q VLAN functionality. VLAN technology allows network traffic to be logically separated according to network requirements.

This can be useful for service providers and managed networks where internet access, IPTV, voice services or other network traffic need to be separated and delivered using specific VLAN configurations.

The device also supports several VLAN operating methods, allowing more advanced network deployment options when configured by a qualified network administrator.

Quality of Service and Bandwidth Management

Quality of Service features help manage different types of network traffic. The GP1702-1G supports IEEE 802.1p and CoS functions, multiple priority queues, port rate limiting and related QoS mechanisms.

These functions are relevant in networks where different services may have different priorities. For example, real-time services can require more predictable traffic handling than ordinary background downloads.

Actual QoS behaviour depends on how the ONU and the wider network are configured. Simply connecting the device does not automatically optimise every application's performance.

Multicast Support

The BDCOM GP1702-1G supports multicast-related features including IGMP Snooping and multicast management functions. Multicast is commonly used in network environments where one data stream needs to be efficiently delivered to multiple recipients.

This can be relevant to IPTV and other managed broadband services, depending on the configuration provided by the ISP or network administrator.

Customers planning to use IPTV should confirm the required VLAN and multicast settings with their service provider before purchasing or replacing an ONU.

Security and Access Control

The ONU includes network security capabilities such as MAC address limitations, MAC filtering and port protection. These features can help administrators apply access controls within managed deployments.

BDCOM also specifies authentication options including MAC, LOID and hybrid authentication methods, depending on the network configuration.

For normal residential users, these functions may be configured by the ISP rather than manually. Incorrect changes to optical authentication or service parameters can interrupt the internet connection, so advanced settings should be handled carefully.

Optical Signal Monitoring

Optical signal quality is an important part of any fibre network. The GP1702-1G supports optical TX/RX power alarms, allowing relevant network conditions to be monitored.

Low optical signal levels can result from damaged fibre, poor connectors, excessive cable loss, dirty optical surfaces or problems elsewhere in the network. An ONU replacement alone may not solve an internet problem caused by poor fibre signal quality.

If a fibre connection repeatedly disconnects or fails to register, checking the optical signal and consulting the ISP can be more effective than repeatedly restarting or replacing networking equipment.

Compact Design and Low Power Consumption

With dimensions of approximately 80 x 75 x 24mm, the BDCOM GP1702-1G has a compact desktop design that can be installed near a fibre termination point without requiring significant space.

The maximum listed power consumption is 6W, and the supplied power arrangement is specified as 12V/0.5A. This makes it suitable for continuous operation as part of a home or small-office broadband setup.

Because an ONU normally operates continuously, it should be placed in a dry and reasonably ventilated location. Avoid placing it directly beside excessive heat sources or in an area where the fibre cable may be bent sharply or damaged.

Real-World Usage Scenarios

The BDCOM GP1702-1G can be used in several fibre networking environments where a single Gigabit Ethernet connection is sufficient.

• Home FTTH broadband connections.
• Small office fibre internet setups.
• Retail shop and business internet connections.
• Connecting a separate Wi-Fi router to a fibre network.
• Providing a Gigabit Ethernet hand-off from a compatible optical network.
• Replacing a compatible single-port ONU when approved by the ISP.
• Managed networking installations requiring GPON or EPON access.

Using the GP1702-1G with a Wi-Fi Router

The GP1702-1G itself is primarily an ONU and should not be confused with a full-featured multi-port Wi-Fi router. It does not replace the need for a separate wireless router if you require Wi-Fi coverage throughout your home or office.

A typical setup connects the incoming fibre line to the SC/UPC PON port. The ONU's Gigabit Ethernet port is then connected to the appropriate port on a compatible router. The router handles Wi-Fi and local network connectivity according to the chosen network configuration.

Depending on the ISP's requirements, the router may need PPPoE credentials, VLAN settings or other configuration. Some networks may instead provide an already configured Ethernet connection through the ONU.

Performance Considerations

The performance of a fibre internet connection depends on the entire network chain rather than the ONU alone. A Gigabit ONU cannot compensate for a slow broadband package, poor optical signal, an overloaded router or an older device with limited Ethernet capability.

For the best wired performance, use a suitable Cat5e or better Ethernet cable between the ONU and router or computer. Older or damaged cables can reduce connection stability or prevent Gigabit Ethernet from negotiating correctly.

If the internet connection is slower than expected, test the service using a wired Gigabit-capable device before assuming that the ONU is responsible. Wi-Fi coverage, router placement and connected-device limitations can also affect speed-test results.

Advantages of the BDCOM GP1702-1G

• Supports both GPON and EPON access technologies.
• Includes one SC/UPC optical PON port.
• Provides one Gigabit Ethernet UNI port.
• Suitable for FTTH and other compatible fibre broadband applications.
• Compact desktop form factor.
• Supports VLAN and QoS features.
• Includes multicast management capabilities.
• Supports OMCI and OAM management.
• Offers multiple authentication and network security functions.
• Low maximum power consumption.
• Suitable for connection to a separate Wi-Fi router.

Things to Consider Before Buying

The most important consideration is ISP compatibility. Before purchasing the BDCOM GP1702-1G as a replacement for an existing ONU, confirm whether your ISP allows a customer-provided ONU and whether it supports this model.

Check the fibre connector type as well. The GP1702-1G uses an SC/UPC PON interface. Do not assume that an SC/APC fibre connector is interchangeable with SC/UPC equipment.

Also consider the number of Ethernet ports required. This model provides only one Gigabit Ethernet port. If you need to connect several wired devices directly, you will require a network switch or router with additional LAN ports.

Finally, remember that this is not a Wi-Fi ONU. If wireless connectivity is required, pair it with a separate compatible Wi-Fi router or access point.

Who Should Buy the BDCOM GP1702-1G?

• Home users with a compatible GPON or EPON fibre connection.
• Customers replacing a single-port ONU with ISP approval.
• Users who already have a separate Wi-Fi router.
• Small offices requiring a single Gigabit Ethernet fibre hand-off.
• Network technicians and installers working with compatible xPON infrastructure.
• Retail shops and small businesses using managed fibre broadband.
• Users looking for a compact ONU with Gigabit Ethernet connectivity.

Who May Need a Different ONU?

If you need built-in Wi-Fi, multiple Ethernet ports, voice ports or CATV connectivity, the GP1702-1G may not be the correct model. BDCOM and other networking manufacturers offer ONU models with different interface combinations.

Users who require several wired LAN connections may prefer a multi-port ONU or may use the GP1702-1G with a separate Gigabit router or network switch.

For installations using a different optical connector or requiring a specific ISP-certified ONU, compatibility should be confirmed before purchase.

Why Buy from Unix Network?

Unix Network (ইউনিক্স নেটওয়ার্ক) is a trusted local retailer for computers, networking equipment, IT accessories and technology products in Jessore, also known as Jashore. We serve customers looking for networking solutions for home, office and business use.

When selecting a GPON ONU, technical compatibility is important. Unix Network can help customers understand the difference between GPON, EPON, xPON, SC/UPC connectors, Gigabit Ethernet ports and Wi-Fi routers so that the chosen product fits the intended network.

Customers can visit our local showroom in Jessore for product guidance and purchasing assistance. We also serve online buyers throughout Bangladesh with nationwide delivery options.

Whether you are setting up a home fibre connection, replacing compatible networking equipment or building a small business network, our team can provide practical advice and professional customer support based on your requirements.

Buying Guide for a GPON ONU in Bangladesh

Before buying an ONU, start by identifying the technology used by your internet service provider. Ask whether the connection is GPON, EPON or requires a specific ONU model approved by the provider.

Next, check the optical connector type. The BDCOM GP1702-1G uses SC/UPC. Connector compatibility is essential because fibre connectors with different polishing types should not be treated as interchangeable.

Then consider your local network requirements. This model provides one Gigabit Ethernet port, making it suitable for connecting a single router, switch or wired device. If you need Wi-Fi, choose a separate router with the appropriate coverage and performance for your home or office.

Finally, confirm the ONU registration procedure. Your ISP may need the device's serial number, MAC address, LOID or other information before activating it on the network.

Basic Installation Considerations

A typical installation begins with connecting the compatible fibre patch cable to the ONU's SC/UPC PON port. The Gigabit Ethernet port can then be connected to a router, switch or computer according to the network design.

The power adapter should be connected to a stable electrical source. Once powered on, the ONU must establish an optical connection and complete the necessary authentication with the ISP's OLT.

If the ONU does not establish a connection, do not repeatedly change random configuration settings. Check the fibre connector, optical signal, ISP registration status and device compatibility first.

Care and Maintenance

Place the ONU in a dry, clean and ventilated location within its supported operating environment. Avoid covering the device or placing it directly on excessive heat sources.

Fibre cables should not be sharply bent, crushed or pulled. The optical connector should also be protected from dust and physical damage.

During thunderstorms or unstable electrical conditions, suitable power protection may help protect networking equipment, depending on the overall electrical installation.

Warranty Information

Warranty coverage for the BDCOM GP1702-1G should be confirmed with Unix Network at the time of purchase because warranty terms can depend on the product source, distributor and current sales conditions.

Customers should retain their purchase documentation and packaging where required for warranty or after-sales service. Physical damage, fibre connector damage, electrical damage and incorrect installation may not be covered under normal warranty terms.

Delivery Across Bangladesh

Unix Network provides networking products for customers in Jessore, Jashore and across Bangladesh. Customers from Jhenaidah, Magura, Narail, Satkhira, Khulna, Kushtia, Chuadanga and other regions can purchase eligible products through nationwide delivery arrangements.

Before ordering an ONU online, customers should verify compatibility with their ISP. This is especially important when replacing an existing ONU because the new device may require registration or configuration by the service provider.

After-Sales Support

Networking equipment can involve technical configuration beyond simply connecting a cable. Unix Network provides professional customer support and practical product guidance to help customers understand the appropriate use of compatible networking equipment.

For customers in Jessore, local showroom availability provides an opportunity to discuss networking requirements directly. Customers elsewhere in Bangladesh can seek assistance through available support channels.

For ISP-related provisioning, authentication or OLT registration issues, the internet service provider may need to complete the required network-side configuration.

Frequently Asked Questions

What is the BDCOM GP1702-1G?

The BDCOM GP1702-1G is an xPON Optical Network Unit designed for compatible fibre broadband networks. It provides one SC/UPC optical PON port and one Gigabit Ethernet port.

Does BDCOM GP1702-1G support GPON?

Yes. The device supports GPON technology and is also designed with EPON compatibility as part of its xPON functionality.

Does the BDCOM GP1702-1G have Wi-Fi?

No. The GP1702-1G is a single-port ONU with one Gigabit Ethernet port. A separate Wi-Fi router or access point is required for wireless networking.

How many LAN ports does the GP1702-1G have?

It provides one Gigabit RJ45 Ethernet UNI port.

Can I replace my ISP ONU with the BDCOM GP1702-1G?

Possibly, but compatibility and registration must be confirmed with your ISP. The provider may need to register the ONU's identification details or configure authentication before the device can access the network.

What type of fibre connector does it use?

The BDCOM GP1702-1G uses one SC/UPC PON port.

Can I connect the GP1702-1G to my Wi-Fi router?

Yes. The ONU's Gigabit Ethernet port can be connected to a compatible router, subject to the required ISP and network configuration.

What is the maximum power consumption?

The listed maximum power consumption is 6W.

Does the BDCOM GP1702-1G support Gigabit Ethernet?

Yes. It includes one Gigabit RJ45 UNI port. Actual internet speed will still depend on your ISP package, optical network and connected equipment.

Is the BDCOM GP1702-1G suitable for home fibre internet?

Yes, it can be suitable for compatible FTTH and fibre broadband installations, particularly when a single Gigabit Ethernet output is sufficient and the ISP supports or provisions the device.

Final Verdict

The BDCOM GP1702-1G GPON ONU is a practical choice for compatible fibre broadband networks that require one SC/UPC optical connection and one Gigabit Ethernet output. Its xPON support, compact design, VLAN capabilities, QoS functions, multicast support and network management features make it suitable for residential, small-office and managed networking applications.

Its biggest strength is simplicity. The device focuses on providing a fibre-to-Gigabit Ethernet connection rather than combining Wi-Fi, multiple LAN ports and other functions into one unit. This makes it a good match for users who already own a separate router or need a straightforward single-port ONU.

Before purchasing, always confirm the SC/UPC connector requirement, GPON or EPON compatibility and, most importantly, whether your ISP will register and support the BDCOM GP1702-1G on its network. For customers looking for a GPON ONU in Bangladesh, Unix Network offers competitive pricing, expert technical guidance, local showroom availability in Jessore and nationwide delivery with professional after-sales support.
