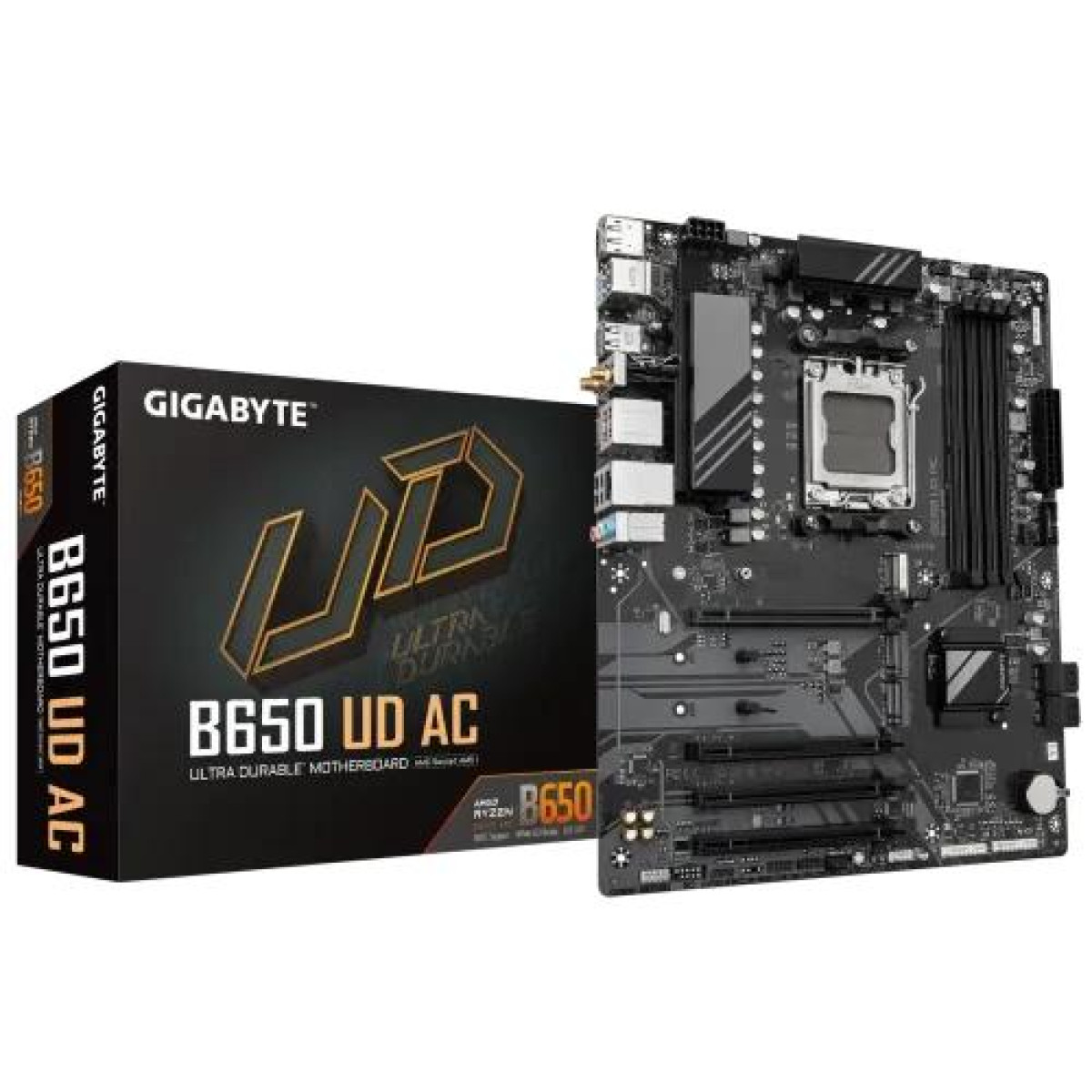

GIGABYTE B650 UD AC AM5 ATX Motherboard

BASIC INFORMATION
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset	AMD B650
Slots	4 x DIMM
Audio	3 x audio jacks
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used. 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Graphics Specifications
Graphics	supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
Memory Specifications
Maximum Memory	supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Supported Memory	7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Type	DDR5
PORTS, CONNECTORS & SLOTS
Display Port (s)	1 x DisplayPort
HDMI	1 x HDMI
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x serial port header j 1 x Clear CMOS jumper Back Panel Connectors 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 1 support
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s)	CPU: - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Wireless Communication module	AzureWave Wi-Fi AW-CB304NF/AW-CB515NF (Realtek RTL8821CE) - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.0 - Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.)
Special
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
WARRANTY
Manufacturing Warranty	3 Years

The GIGABYTE is a high-performance ATX motherboard designed for AMD's latest processors, utilizing the AM5 socket to support AMD Ryzen 7000, 8000, and 9000 series processors. It offers robust performance and advanced features suitable for gaming and professional applications. The motherboard features a 6+2+2 phases digital VRM solution, ensuring stable and efficient power delivery, even under heavy loads, which supports overclocking and maintains system stability. It supports dual-channel DDR5 memory with four SMD DIMM slots, accommodating high-speed RAM modules and offering AMD EXPO and Intel XMP profiles for easy overclocking. The B650 UD AC includes one PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, providing ultra-fast data transfer rates and improved system responsiveness. The EZ-Latch PCIe x16 slot simplifies the installation and removal of graphics cards with a quick-release design. Network connectivity is ensured through built-in Wi-Fi 802.11ac and a Gigabit Ethernet LAN port, offering fast and reliable options for online gaming and streaming. The also includes DisplayPort and HDMI outputs, supporting high-resolution displays and multiple monitor setups. The rear I/O features high-speed USB 10Gb/s ports for quick data transfers and peripheral connectivity. The Smart Fan 6 technology provides comprehensive cooling management with multiple temperature sensors and hybrid fan headers, including a FAN STOP function for quieter operation. The Q-Flash Plus feature allows users to update the BIOS without needing to install a CPU, memory, or graphics card, simplifying firmware updates. Overall, the GIGABYTE B650 UD AC is a well-rounded motherboard offering high-end features and connectivity for building a powerful and future-proof PC, making it an excellent choice for gamers, content creators, and enthusiasts alike. In Bangladesh, you can get original From Unix Network. We have a large collection of the latest to purchase for your . Order Online Or Visit your Nearest Shop to get yours at the lowest price. The GIGABYTE B650 UD AC AM5 Motherboard comes with 3 years of warranty.

Are you looking to build a high-performance computer that can keep up with your demanding tasks and workload? Look no further than the GIGABYTE B650 UD AC AM5 ATX Motherboard, available at Unix Network in Jashore, Bangladesh. This powerhouse of a motherboard is designed with quality and performance in mind, making it the perfect choice for computer users and students alike.

The GIGABYTE B650 UD AC AM5 ATX Motherboard is built to provide exceptional speed and efficiency, allowing you to tackle your everyday computing needs with ease. Whether you are working on school projects, gaming, or multitasking, this motherboard can handle it all. With its advanced features, you can expect smooth and seamless performance every time.

One of the key features of the GIGABYTE B650 UD AC AM5 ATX Motherboard is its sturdy construction and top-notch quality. Made with durable materials and cutting-edge technology, this motherboard is built to last, ensuring that you can rely on it for years to come. Say goodbye to frequent upgrades and repairs – the GIGABYTE B650 UD AC AM5 ATX Motherboard is here to stay.

In addition to its quality and performance, the GIGABYTE B650 UD AC AM5 ATX Motherboard is also designed with your convenience in mind. With its user-friendly interface and easy installation process, setting up your computer has never been easier. You can spend less time troubleshooting and more time enjoying the amazing speed and power of your new system.

Don't settle for a subpar motherboard that can't keep up with your needs. Upgrade to the GIGABYTE B650 UD AC AM5 ATX Motherboard today and experience the difference for yourself. Visit Unix Network in Jashore, Bangladesh, and get your hands on this exceptional motherboard. Your computer will thank you for it.
