Key highlights
- Form Factor: Micro ATX Form Factor; 22.6cm x 17.4cm
- Supported CPU: Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU
- Chipset: Intel H310 Express Chipset
- Slots: 2 x DDR4 DIMM
- Audio: Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Description

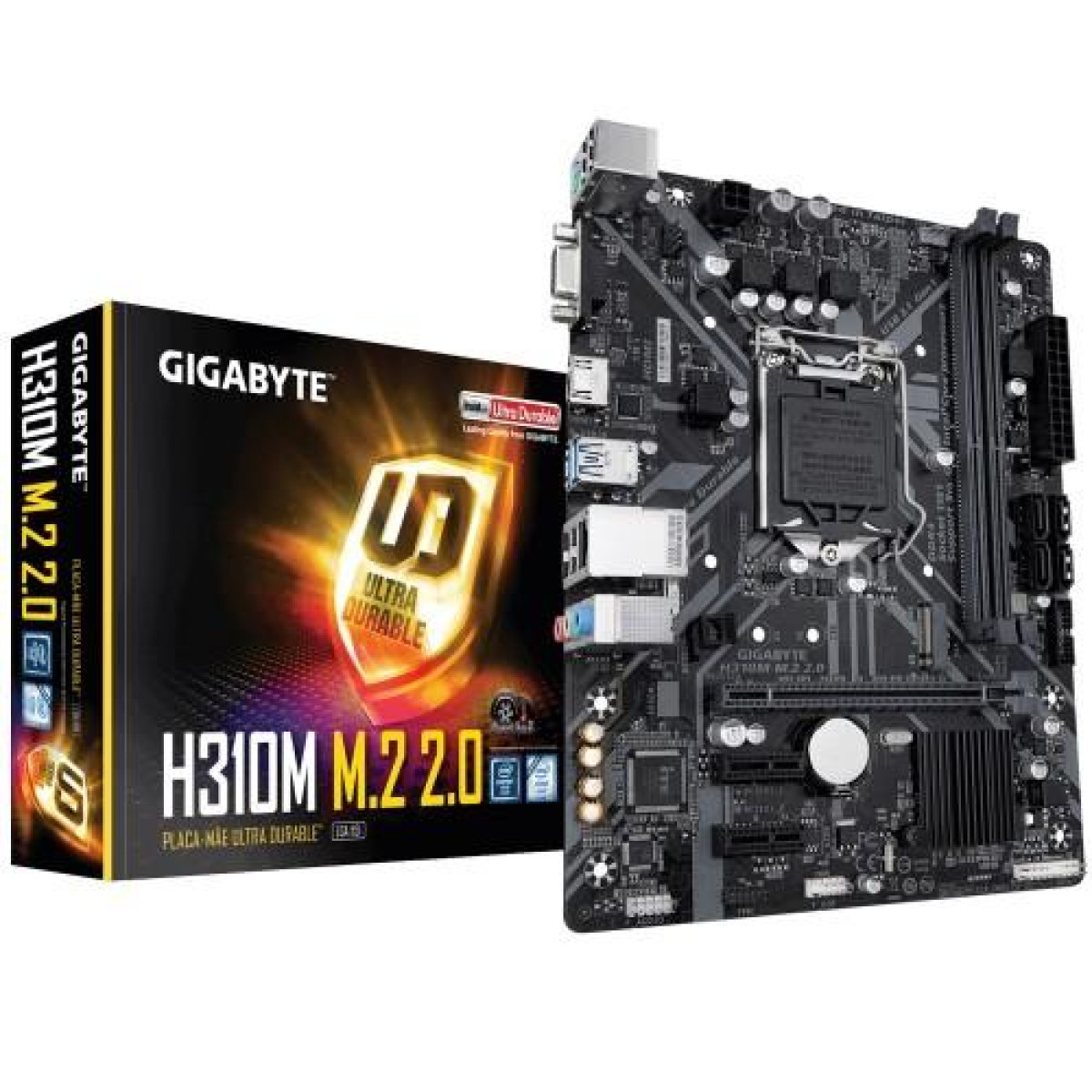

Gigabyte H310M M.2 9th Gen Micro ATX Motherboard
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, but 5 more hybrid fan headers that support both PWM and Voltage mode fans have also been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking. Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be a fan or pump with different PWM or Voltage mode. GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes. There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuits and system malfunction caused by humid and damp conditions. The BIOS is essential for users during the initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.Are you looking to upgrade your computer's motherboard for improved speed and performance? Look no further than the Gigabyte H310M M.2 9th Gen Micro ATX Motherboard available at Unix Network in Jashore, Bangladesh.
This motherboard is designed to enhance your computing experience with its high-quality components and cutting-edge technology. It is specifically engineered to support 9th Gen processors, ensuring seamless performance for all your computing needs. Whether you are a computer user or a student, this motherboard is perfect for handling everyday tasks and demanding applications with ease.
One of the standout features of the Gigabyte H310M M.2 motherboard is its M.2 slot, which allows for ultra-fast storage capabilities, significantly reducing load times for your operating system and applications. This means you can spend less time waiting and more time being productive or gaming.
In addition, this Micro ATX motherboard offers a compact design without compromising on performance, making it ideal for smaller form factor builds. You can enjoy the benefits of a high-performance system without the bulkiness of a larger motherboard.
When it comes to speed and efficiency, the Gigabyte H310M M.2 9th Gen Micro ATX Motherboard delivers. With support for DDR4 memory and USB 3.1 ports, you can expect lightning-fast data transfer speeds and multitasking capabilities.
Upgrade your computer's performance today with the Gigabyte H310M M.2 9th Gen Micro ATX Motherboard from Unix Network in Jashore, Bangladesh. Trust in our professional team to provide you with the best products and services for all your computing needs.
Gigabyte H310M M.2 9th Gen Micro ATX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
| Supported CPU | Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU |
| Chipset | Intel H310 Express Chipset |
| Slots | 2 x DDR4 DIMM |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Graphics Specifications | |
| Max Shared Memory | 1 GB |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| Memory Specifications | |
| Maximum Memory | 32 GB |
| Supported Memory | Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | Dual-channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for HDMI 1.4 version and HDCP 2.2. |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| USB (s) | 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
