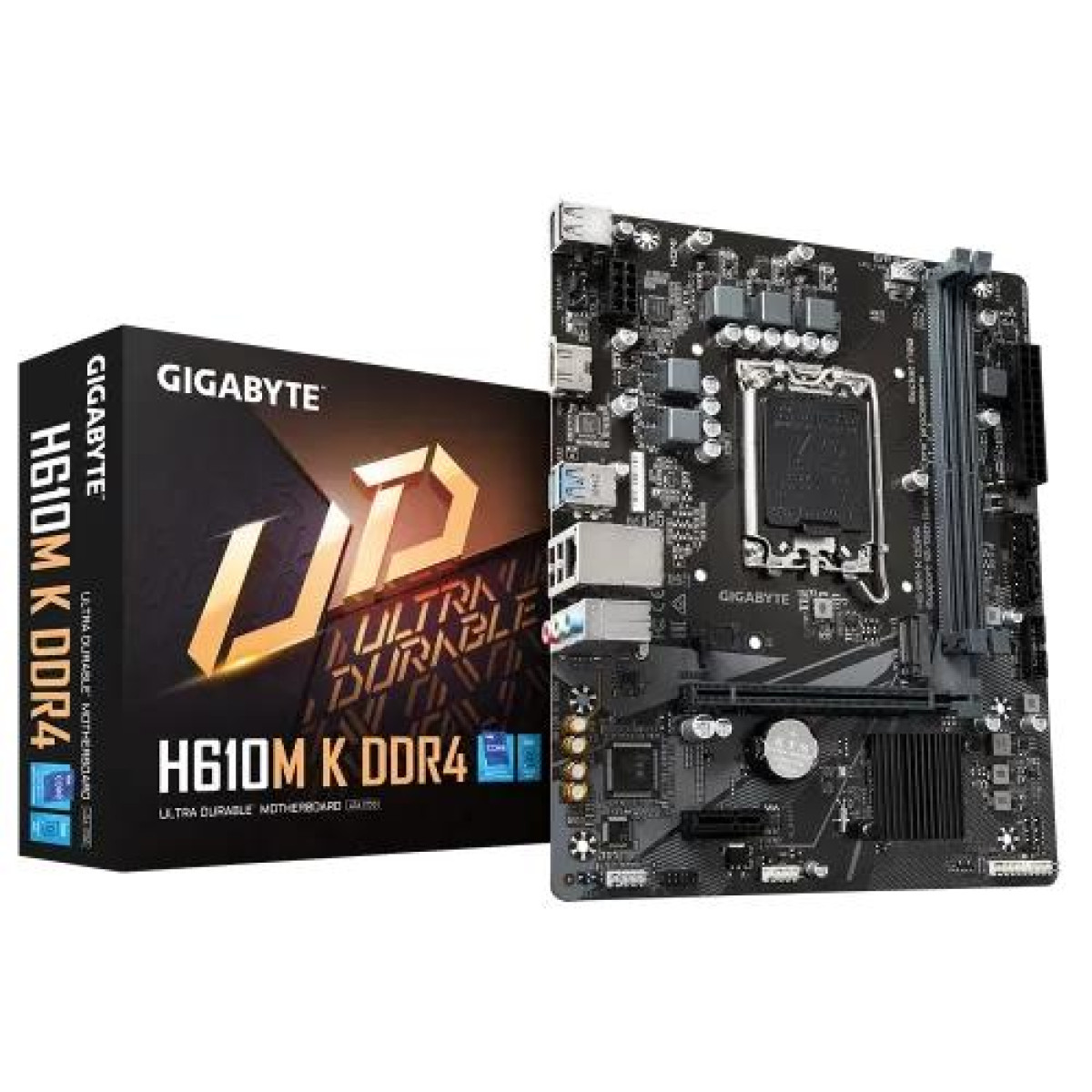

GIGABYTE H610M K DDR4 Micro ATX Motherboard
- Brand:Gigabyte
- Product Code: GIGABYTE H610M K DDR4 Micro ATX Motherboard
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
|---|---|
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| Chipset | Intel H610 Express Chipset |
| Slots | 2 x DIMM sockets |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Memory Specifications | |
| Maximum Memory | supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
| Supported Memory | Support for 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| WARRANTY | |
| Manufacturing Warranty | 3 years Warranty |
Description
The GIGABYTE H610M K DDR4 Micro ATX Motherboard is an affordable and efficient solution for those looking to build a powerful, reliable system with Intel’s 12th Gen Alder Lake processors. Offering a blend of essential features, robust performance, and strong durability, this motherboard is ideal for budget-conscious users, including gamers, content creators, and everyday PC enthusiasts.
With support for DDR4 memory up to 3200MHz, this motherboard offers excellent memory bandwidth for multi-tasking, gaming, and productivity tasks. It also features PCIe 4.0 support, high-speed USB connectivity, and M.2 storage for fast read and write speeds, ensuring a smooth user experience. Additionally, the motherboard’s Compact Micro ATX form factor makes it a great option for building in smaller cases, without compromising on key features.
Designed for those who prioritize value and functionality, the H610M K DDR4 provides a solid foundation for a 12th Gen Intel system. Whether you're upgrading an existing build or starting from scratch, this motherboard offers dependable performance and compatibility at an affordable price point.
People Also Ask (PAA) Section (300-400 words)
1. What processors are compatible with the GIGABYTE H610M K DDR4 Micro ATX Motherboard?
The GIGABYTE H610M K DDR4 motherboard is compatible with Intel 12th Gen Alder Lake processors, including Intel Core i9, Core i7, Core i5, Core i3, and Pentium series CPUs. This motherboard uses the LGA 1700 socket, which is the latest socket type for 12th Gen Intel chips. It provides strong performance for gaming, video editing, and general multitasking, making it a solid choice for various users.
2. How much RAM can the GIGABYTE H610M K DDR4 motherboard support?
The GIGABYTE H610M K DDR4 motherboard supports up to 64GB of DDR4 RAM across its two memory slots, with speeds of up to 3200MHz. This ample RAM capacity is perfect for gaming and productivity applications, as well as running multiple applications simultaneously without compromising on speed. Whether you're using your PC for content creation, work, or casual gaming, the 64GB capacity ensures plenty of headroom for your needs.
3. Does the GIGABYTE H610M K DDR4 support PCIe 4.0?
Yes, the GIGABYTE H610M K DDR4 motherboard supports PCIe 4.0 for faster data transfer speeds, providing higher bandwidth for devices like graphics cards and M.2 SSDs. PCIe 4.0 offers a significant performance boost over PCIe 3.0, especially for high-end gaming GPUs and
The GIGABYTE H610M K DDR4 Micro ATX Motherboard is a high-quality component designed for reliable performance in yo
