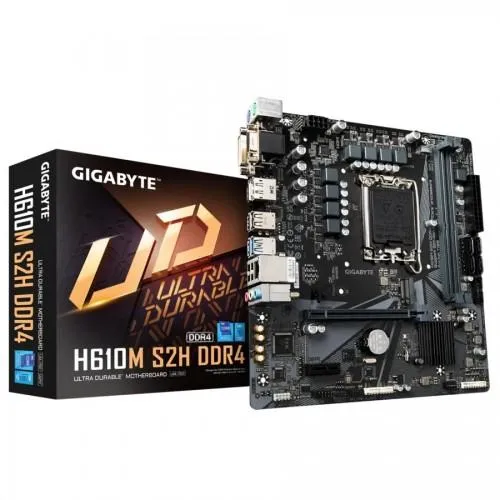

"Extreme Speed H610M Micro ATX Motherboard with DDR4 Support"
- Brand: Gigabyte
- Product Code: GIGABYTE H610M S2H DDR4 Micro ATX Motherboard
- Availability: In Stock
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Supported CPU | Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package L3 cache varies with CPU |
| Chipset | Intel H610 Express Chipset |
| Slots | 2 x DDR DIMM sockets |
| Audio | 3 x audio jacks |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Memory Specifications | |
| Maximum Memory | supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
| Supported Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port |
| Display Port (s) | 1 x DisplayPort |
| DVI-D (s) | 1 x DVI-D port |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI 2.0 port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| LAN Port (s) | Intel GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
The GIGABYTE H610M S2H DDR4 Micro ATX Motherboard is a compact yet powerful solution for building an efficient and reliable system. Designed for Intel 12th and 13th Gen Core processors with the LGA 1700 socket, this motherboard brings excellent performance to budget-conscious users, gamers, and home office setups. Despite its compact Micro ATX form factor, the H610M S2H offers a robust set of features, including support for DDR4 memory, PCIe 4.0, and high-speed connectivity options.
Ideal for users looking for an affordable but feature-rich motherboard, the H610M S2H provides high-speed storage support with M.2 slots for faster load times and USB 3.2 Gen 1 ports for quick data transfers. Whether you’re building a basic workstation, a home entertainment system, or a budget gaming rig, this motherboard ensures reliable performance and upgrade potential without the need for a high-end chipset. With the GIGABYTE H610M S2H, users can build an efficient, cost-effective PC without sacrificing quality or essential features.
People Also Ask (PAA) Section (300-400 words)
1. What is the GIGABYTE H610M S2H DDR4 motherboard best for?
The GIGABYTE H610M S2H DDR4 Micro ATX motherboard is best for building affordable PCs that deliver solid performance for everyday computing tasks, light gaming, and productivity applications. It is ideal for users looking to build a budget-friendly system without compromising on reliability or essential features. With support for Intel 12th and 13th Gen processors, DDR4 memory, and M.2 NVMe storage, this motherboard is a versatile choice for home office setups, basic gaming rigs, or multimedia PCs.
2. Does the GIGABYTE H610M S2H motherboard support overclocking?
No, the GIGABYTE H610M S2H DDR4 motherboard does not support overclocking. It is based on the Intel H610 chipset, which is designed for non-overclocking CPUs. If you are looking to overclock your CPU, you would need a motherboard based on the Z-series chipset (such as the Z690). However, the H610M S2H is ideal for users who are not interested in overclocking and are focused on stable, reliable performance for general computing and light gaming.
The GIGABYTE H610M S2H DDR4 Micro ATX Motherboard is a high-quality and reliable motherboard designed for your computing needs. With support for DDR4 memory and Micro ATX form factor, this motherboard is perfect for building a compact yet powerful system.
Featuring an H610 chipset, this motherboard supports the latest Intel processors and provides a stable platform for gaming, multimedia, and everyday tasks. It offers a range of connectivity options, including USB 3.2 Gen 1 ports, HDMI and DVI-D outputs, and a Gigabit LAN port for fast and reliable network connections.
