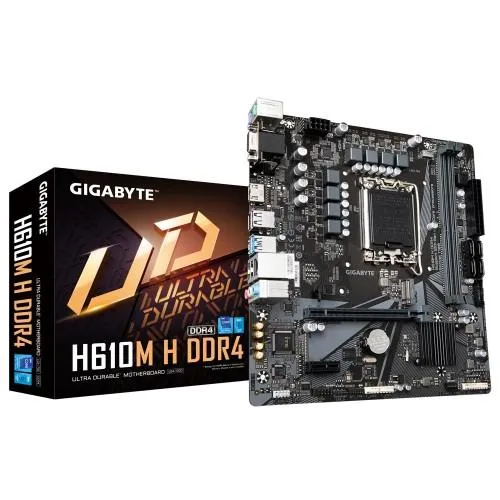

GIGABYTE H610M H DDR4 Micro ATX Motherboard
- Brand: Gigabyte
- Product Code: GIGABYTE H610M H DDR4 Micro ATX Motherboard
- Availability: In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
|---|---|
| Supported CPU | LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel H610 Express Chipset |
| Slots | 2 x DDR DIMM sockets |
| Audio | 3 x audio jacks |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports |
| Memory Specifications | |
| Maximum Memory | Up to 64 GB (32 GB single DIMM capacity) of system memory |
| Supported Memory | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port |
| HDMI | 1 x HDMI 2.0 port |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| LAN Port (s) | Intel GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
The GIGABYTE H610M H DDR4 Micro ATX Motherboard is a budget-friendly yet feature-rich option designed to provide excellent performance for users building a compact PC or budget gaming system. With support for the latest Intel 12th Gen Alder Lake processors (LGA 1700 socket), this motherboard brings next-level efficiency to users looking to create systems that can handle both everyday tasks and moderate gaming or workloads.
Equipped with DDR4 memory support (up to 3200MHz), it ensures fast and reliable system performance while offering a micro ATX form factor that fits into smaller cases without compromising on expandability. The H610M H is designed with multiple connectivity options, including USB 3.2 ports, PCIe 4.0 x16 slot, and M.2 NVMe SSD support, ensuring that users can install their desired components for both speed and storage. The motherboard also features solid capacitors and durable power phases for enhanced stability, making it ideal for entry-level gaming, productivity tasks, and media consumption.
Whether you're upgrading your PC or building a new one, the GIGABYTE H610M H provides a solid base for your components while delivering performance, reliability, and expandability at a great price.
People Also Ask (PAA) Section (300-400 words)
1. What CPU is compatible with the GIGABYTE H610M H DDR4 Micro ATX Motherboard?
The GIGABYTE H610M H motherboard supports Intel 12th Gen Alder Lake processors with the LGA 1700 socket. It is compatible with processors like the Intel Core i9, i7, i5, i3, and Pentium series. This makes it a great choice for users who want to build a budget-friendly yet powerful system with the latest Intel technology.
2. How much RAM can I install on the GIGABYTE H610M H motherboard?
The GIGABYTE H610M H motherboard supports up to 64GB of DDR4 RAM across two memory slots. It is compatible with DDR4 memory with speeds up to 3200MHz. This provides ample memory for
The GIGABYTE H610M H DDR4 Micro ATX Motherboard is a versatile and reliable option for your PC build. This motherboard supports 10th Gen Intel Core processors and has 4 DIMM slots for up to 64GB of DDR4 RAM. It features PCIe 3.0 slots for expansion cards, USB 3.2 Gen 1 ports for fast data transfer, and SATA 6Gb/s ports for storage drives. The Micro ATX form factor is perfect for compact builds without sacrificing performance. Trust in the quality and durability of GIGABYTE for your computing needs.
