Key highlights
- Form Factor: XL-ATX Form Factor; 32.5cm x 27.5cm
- Graphics: Support for AMD Quad-GPU CrossFire and 4-Way/ 3-Way/ 2-Way AMD CrossFire technologies Support for NVIDIA Quad-GPU SLI and 4-Way/ 3-Way/ 2-Way NVIDIA SLI technologies
- Supported CPU: Support 3rd Generation AMD Ryzen Threadripper processors
- Chipset: AMD TRX40
- BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Description
Powerful AMD XL-ATX Motherboard for Gamers and Creators

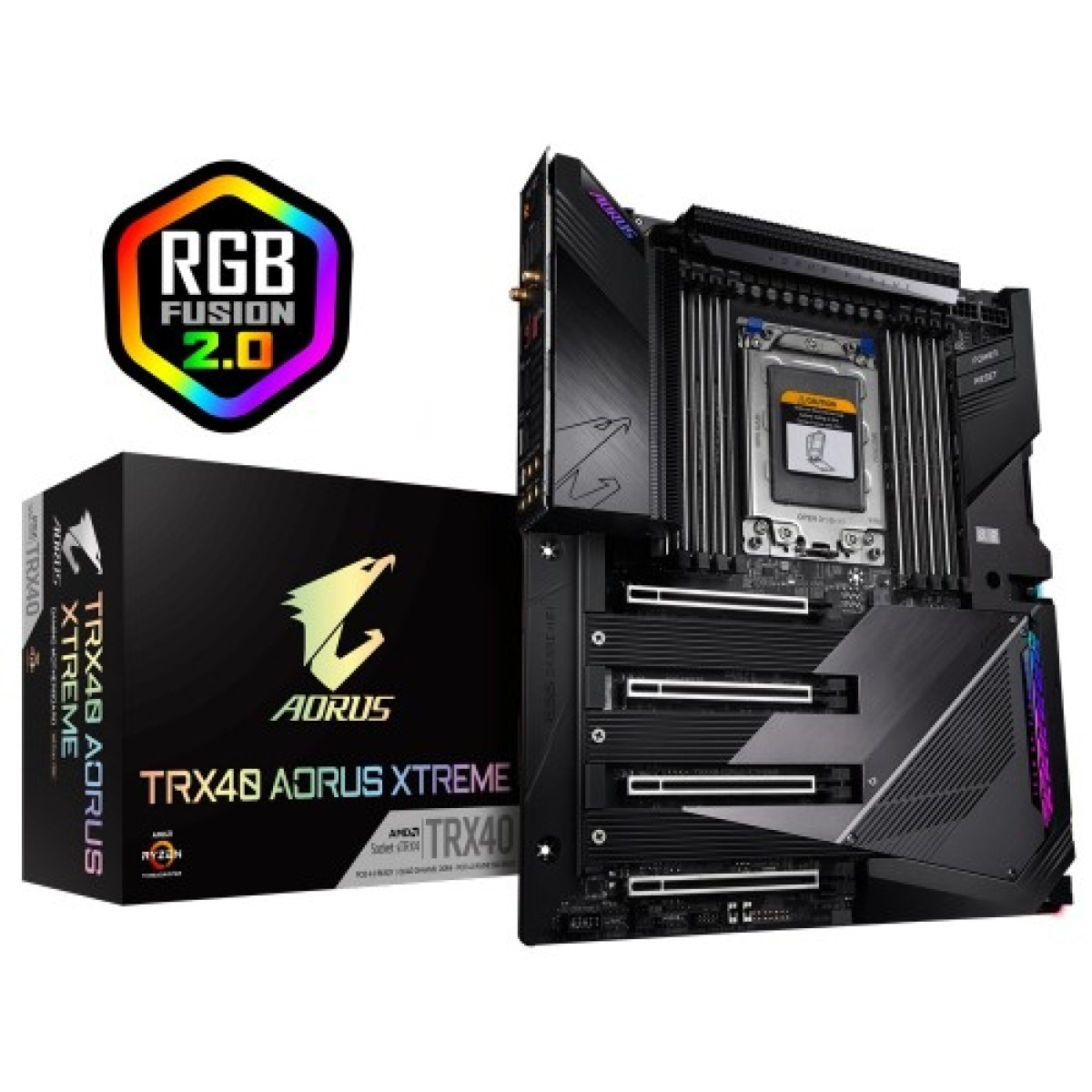

GIGABYTE TRX40 AORUS Xtreme: Unleashing Power and Performance
The GIGABYTE TRX40 AORUS Xtreme AMD XL-ATX Motherboard is designed for the ultimate enthusiast and professional user, providing a robust platform for AMD Threadripper processors. With its advanced power delivery system and extensive connectivity options, this motherboard ensures that your system runs smoothly and efficiently, even under heavy workloads.
Featuring a unique thermal design, the AORUS Xtreme keeps your components cool, which is crucial for maintaining performance during demanding tasks such as gaming, video editing, and 3D rendering. The motherboard supports PCIe 4.0, delivering faster data transfer rates and improved performance for high-end graphics cards and storage devices.
Additionally, the integrated Wi-Fi 6 and Bluetooth 5.0 provide top-notch wireless connectivity, making it easier than ever to connect to the internet and other devices. With support for up to 256GB of RAM, this motherboard is perfect for professionals who require high memory capacity for multitasking and resource-intensive applications.
Whether you are building a workstation or a gaming rig, the GIGABYTE TRX40 AORUS Xtreme is the perfect choice for those seeking performance, reliability, and cutting-edge technology.
Unleash Your PC's Potential with TRX40 AORUS Xtreme
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | XL-ATX Form Factor; 32.5cm x 27.5cm |
| Graphics | Support for AMD Quad-GPU CrossFire and 4-Way/ 3-Way/ 2-Way AMD CrossFire technologies Support for NVIDIA Quad-GPU SLI and 4-Way/ 3-Way/ 2-Way NVIDIA SLI technologies |
| Supported CPU | Support 3rd Generation AMD Ryzen Threadripper processors |
| Chipset | AMD TRX40 |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR4 |
| Expansion Slots | |
| M.2 Socket | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2P) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/ x2 SSD support) (M2C_SOCKET) |
| Memory Specifications | |
| Maximum Memory | 256 GB (32 GB single DIMM capacity) |
| Slots | 8 x DIMM |
| Supported Memory | Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Quad Channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC_PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 3 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 10 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 1 x GIGABYTE add-in card connector 1 x noise detection header 1 x power button 1 x reset button 2 x temperature sensor headers 2 x BIOS switches Voltage Measurement Points |
| LAN Port (s) | Intel 10GbE LAN chip (10 Gbit/ 5 Gbit/ 2.5 Gbit/ 1 Gbit/ 100 Mbit), supporting 2 RJ-45 ports |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2P) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/ x2 SSD support) (M2C_SOCKET) 8 x SATA 6Gb/s connectors (SATA3 0~7) Support for RAID 0, RAID 1, and RAID 10 ASMedia SATA 6Gb/s Controller: 2 x SATA 6Gb/s connectors (SATA3 8, 9), supporting AHCI mode only |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| USB (s) | CPU: 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+1 USB 2.0 Hub: 4 x USB 2.0/ 1.1 ports available through the internal USB headers (with the included front USB header extention cable) Chipset+ASMedia USB 3.2 Gen 2 Controller: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
