Key highlights
- Graphics: Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
- SpecialFeatures: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
- Chipset: AMD X570
- Audio: 5 x audio jacks
- BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Description
High-Performance AMD AM4 ATX Motherboard Available Now

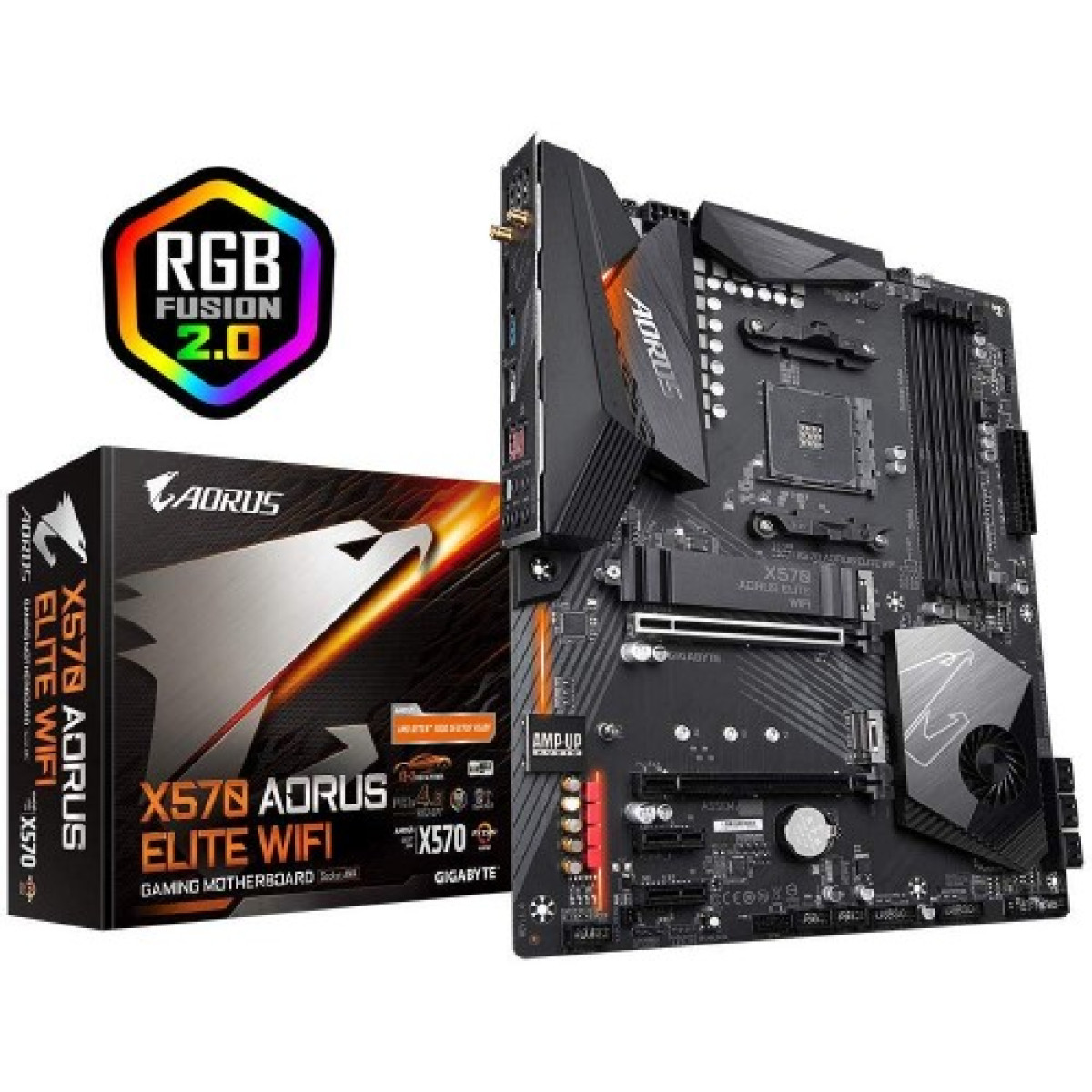

Overview of the Gigabyte X570 AORUS ELITE WIFI AMD AM4 ATX Motherboard
The Gigabyte X570 AORUS ELITE WIFI is a high-performance motherboard designed specifically for AMD Ryzen processors, offering an exceptional blend of features, performance, and reliability. This ATX motherboard is packed with advanced technology that caters to both gamers and professionals, making it an ideal choice for anyone looking to build a powerful PC. With support for the latest PCIe 4.0 technology, this motherboard ensures lightning-fast data transfer speeds, enhancing the overall performance of your system.
One of the standout benefits of the X570 AORUS ELITE WIFI is its robust power delivery system, which features a 6+2 phased digital VRM design. This setup allows for stable overclocking, ensuring that your Ryzen CPU can achieve its maximum potential without overheating or throttling. Additionally, the board includes a comprehensive cooling solution with multiple temperature sensors, Smart Fan 5 technology, and advanced thermal design, which work together to keep your system cool even during intense gaming sessions or heavy workloads.
Use Cases and Benefits
This motherboard is perfect for a variety of use cases. Gamers will appreciate the enhanced graphics performance that comes with PCIe 4.0 support, enabling faster loading times and smoother frame rates. Content creators and professionals can take advantage of the extensive connectivity options, including multiple USB 3.2 Gen 2 ports and M.2 slots for high-speed SSDs, allowing for quicker data transfers and efficient workflows.
Customers should consider the Gigabyte X570 AORUS ELITE WIFI for its superior build quality and reliability. It is designed with high-quality components that ensure longevity, making it a wise investment for anyone looking to build a future-proof system. Furthermore, its aesthetic appeal, with customizable RGB lighting, allows users to personalize their setups, making it not only functional but also visually stunning.
Upgrade Your Gaming Setup with AORUS ELITE Features
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. |
| SpecialFeatures | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Chipset | AMD X570 |
| Audio | 5 x audio jacks |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR4, Dual channel memory architecture |
| Expansion Slots | |
| M.2 Socket | 2 x M.2 Socket 3 connectors |
| PCI | Integrated in the CPU (PCIEX16): · AMD Ryzen 5000 Series/ 3rd Gen Ryzen Processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen Processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4) 2 x PCI Express x1 slots, supporting PCIe 4.0/3.0 |
| Graphics Specifications | |
| Max Shared Memory | Maximum shared memory of 16 GB |
| Memory Specifications | |
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) of system memory |
| Supported Memory | 3rd Generation AMD Ryzen processors: - Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules - 2nd Generation AMD Ryzen processors/AMD Ryzen with Radeon Vega Graphics processors: - Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules ECC mode supported by 3rd Gen AMD Ryzen/ 2nd Gen AMD Ryzen and only PRO sku of 2nd Gen AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors. - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Supported Storage | Integrated in the CPU (M2A_SOCKET): · AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen Processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · AMD Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ 2nd Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics Processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| USB (s) | Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Wireless Communication module | Wi-Fi 802.11 a/ b/ g/ n/ ac, supporting 2.4/ 5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate |
