Key highlights
- Graphics: Onboard Graphics Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support forAMDQuad-GPU CrossFire and 2-WayAMD CrossFire technologies Multi-Graphics Technology Support forAMDQuad-GPU CrossFire and 2-WayAMD CrossFire technologies For AMD Ryzen 5000 Series/5000 G-Series/4000 G-Series/3000 Series/2000 Series Processors only.
- Supported CPU: AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors
- Chipset: AMD X570
- Audio: Realtek ALC1220-VB Audio CODEC The back panel line out jack supports DSD audio. Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
- BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Description

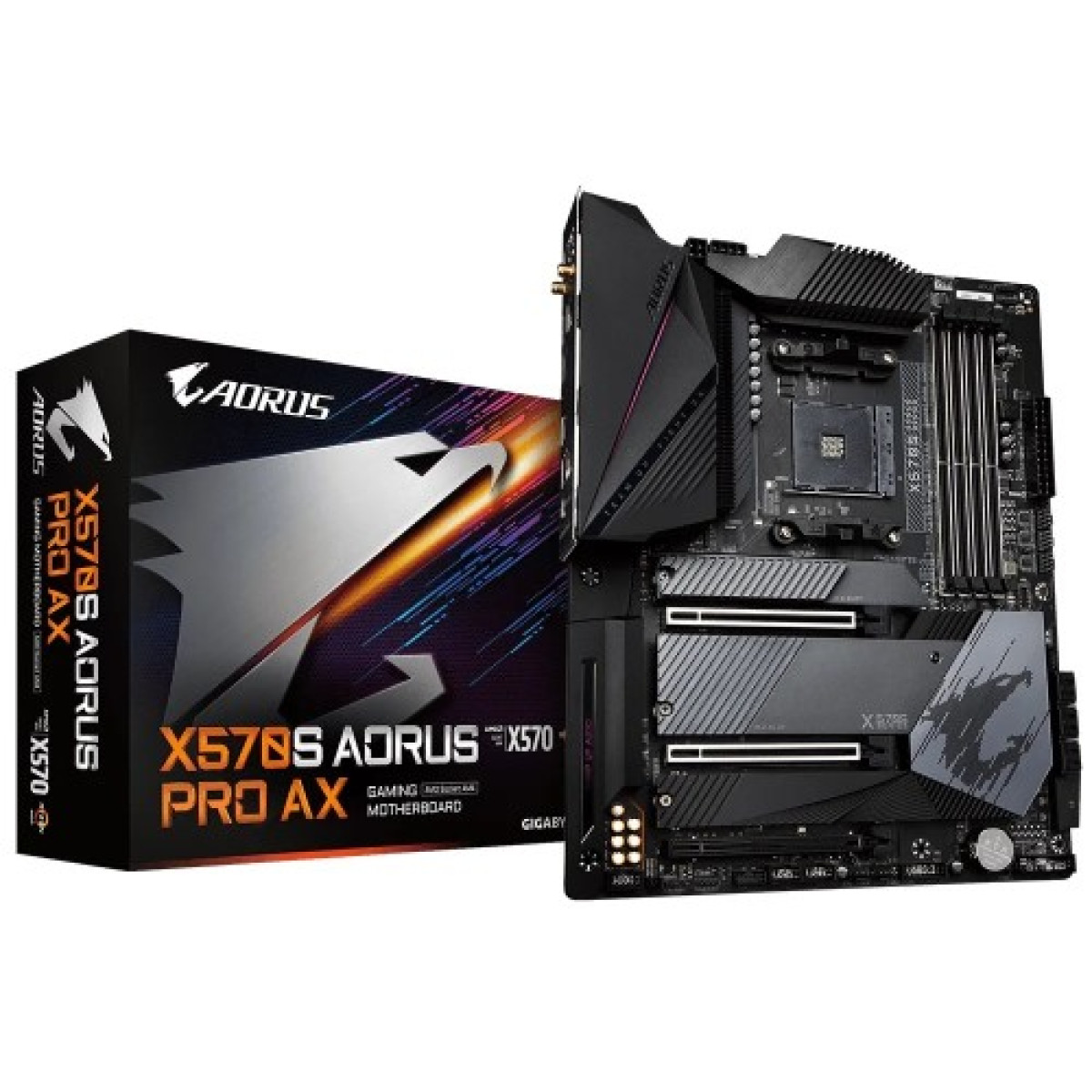

Explore GIGABYTE X570S AORUS PRO AX Features and Specs
Elevate Your Gaming Experience with GIGABYTE X570S AORUS PRO AX
The GIGABYTE X570S AORUS PRO AX is the ultimate AMD ATX gaming motherboard, meticulously designed for gamers who demand superior performance and unmatched reliability. Built on the advanced X570 chipset, this motherboard supports the latest AMD Ryzen processors, ensuring lightning-fast speeds and seamless multitasking. Featuring PCIe 4.0, it provides enhanced bandwidth for next-gen graphics cards and storage devices, giving you the competitive edge you need in high-stakes gaming.
With its robust thermal design, including a premium heatsink and an advanced thermal solution, the X570S AORUS PRO AX maintains optimal temperatures even during intense gaming sessions. The motherboard is equipped with Wi-Fi 6 technology, offering ultra-fast wireless connectivity, which is crucial for online gaming in today’s fast-paced environment.
Additionally, the customizable RGB lighting allows gamers to personalize their build, creating an immersive gaming atmosphere. With multiple M.2 slots, you can install high-speed NVMe SSDs for lightning-fast load times. The motherboard also features a comprehensive rear I/O panel with ample USB ports, ensuring all your peripherals are easily connectable.
In the bustling tech market of Jashore, Bangladesh, the GIGABYTE X570S AORUS PRO AX stands out as a top choice for gamers looking for high-performance components that don’t compromise on quality or aesthetics.
Why Choose GIGABYTE X570S AORUS PRO AX for Gaming
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | Onboard Graphics Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support forAMDQuad-GPU CrossFire and 2-WayAMD CrossFire technologies Multi-Graphics Technology Support forAMDQuad-GPU CrossFire and 2-WayAMD CrossFire technologies For AMD Ryzen 5000 Series/5000 G-Series/4000 G-Series/3000 Series/2000 Series Processors only. |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors |
| Chipset | AMD X570 |
| Audio | Realtek ALC1220-VB Audio CODEC The back panel line out jack supports DSD audio. Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x16 mode AMD Ryzen 3000 G-Series/2000 G-Series Processors support PCIe 3.0 x8 mode 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: AMD Ryzen 5000 Series/3000 Series Processors support PCIe 4.0 x8 mode AMD Ryzen 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x8 mode AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors do not support this slot. For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 4.0/3.0 x4 mode - For AMD Ryzen 5000 Series/3000 Series Processors only. |
| Memory Specifications | |
| Maximum Memory | up to 128 GB (32 GB single DIMM capacity) of system memory |
| Supported Memory | Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: AMD Ryzen 5000-Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting PCIe 4.0*/3.0 x4/x2 SSDs - For AMD Ryzen 5000 Series/3000 Series Processors only. 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting SATA and PCIe 4.0/3.0 x4/x2 SSDs - For AMD Ryzen 5000 Series/3000 Series Processors only. 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 - Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
| USB (s) | CPU: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 3 x USB 3.2 Gen 1 ports on the back panel Chipset+ASMedia USB 3.2 Gen 2x2 Controller: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
