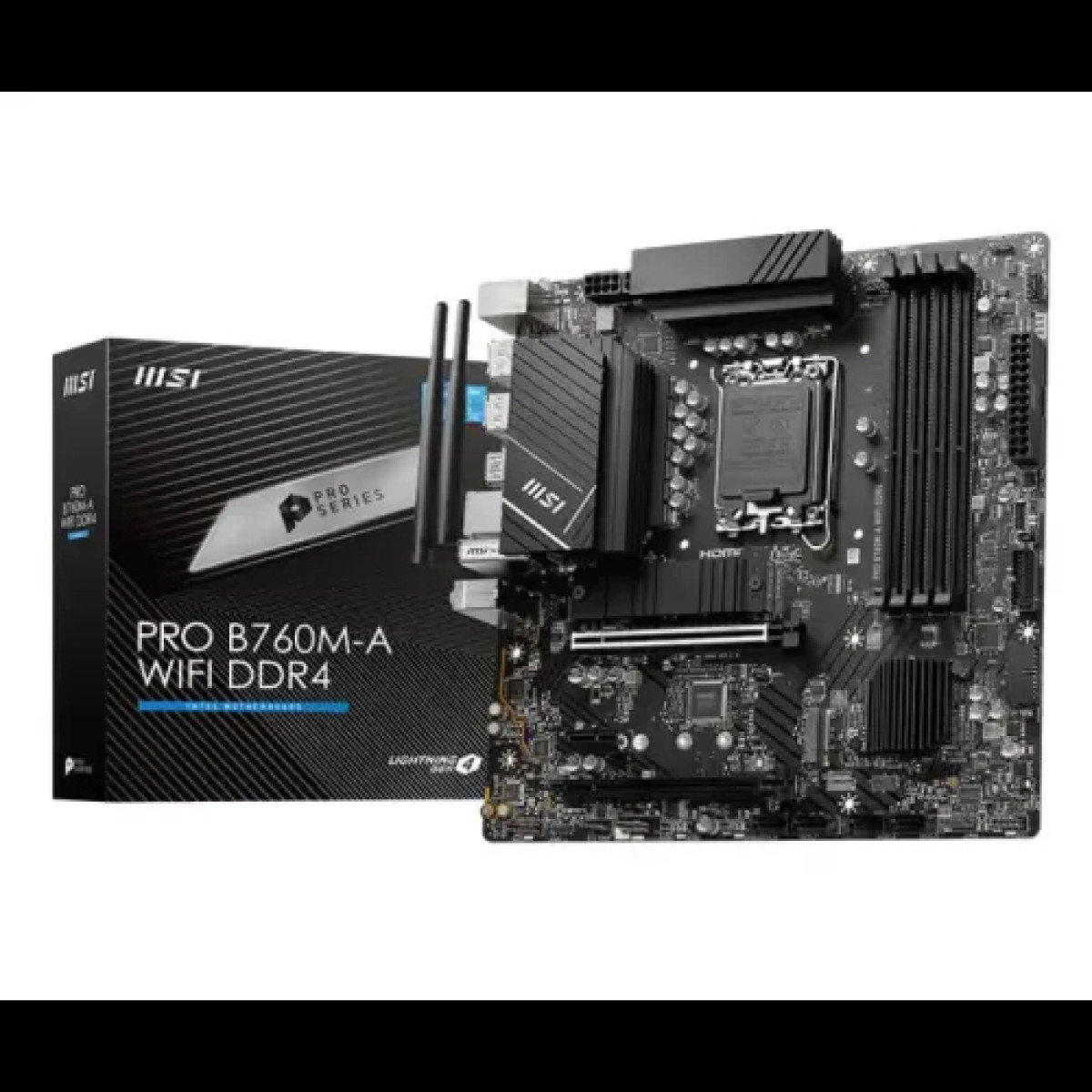

MSI PRO B760M-A WIFI DDR4 12th Gen & 13th Gen mATX Motherboard
৳20,700
Key highlights
- Form Factor: mATX 243.84mmx243.84mm
- Graphics: 2x HDMI Support HDMI 2.1, the maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, the maximum resolution of 4K 60Hz
- Raid controller: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supported CPU: Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
- Chipset: INTEL B760
Description
Top Features of MSI PRO B760M-A WIFI Motherboard
MSI PRO B760M-A WIFI DDR4: The Ultimate Motherboard for Your Next Build
The MSI PRO B760M-A WIFI DDR4 motherboard is designed to cater to the needs of both casual users and experienced builders alike. This micro-ATX motherboard is compatible with Intel's 12th and 13th Generation processors, making it a versatile choice for various computing needs. With its robust feature set, it promises to deliver remarkable performance for gaming, content creation, and everyday tasks.
One of the standout features of this motherboard is its built-in Wi-Fi connectivity. Integrated Wi-Fi 6E technology ensures fast and reliable internet connections, allowing you to enjoy online gaming, streaming, and downloading with ease. Coupled with Bluetooth 5.2, you can connect multiple devices simultaneously without compromising speed.
Expandability is another significant benefit of the MSI PRO B760M-A. It comes equipped with multiple PCIe slots, allowing you to install additional graphics cards, sound cards, or other expansion cards as needed. The motherboard supports up to 128GB of DDR4 RAM, giving you ample memory for multitasking and demanding applications.
Installation is straightforward, thanks to the user-friendly design that includes clearly labeled connectors and an intuitive layout. This feature is particularly beneficial for novice builders who may feel overwhelmed by complex setups. The motherboard also supports MSI's Click BIOS 5, which provides a streamlined interface for tweaking settings and optimizing performance.
In terms of durability, the MSI PRO B760M-A comes with high-quality capacitors and a reinforced PCIe slot to ensure stability and longevity. This makes it an excellent investment for long-term use.
Choosing the MSI PRO B760M-A WIFI DDR4 motherboard means investing in a product that not only meets but exceeds expectations. Whether you’re a gamer, a content creator, or simply someone who needs a reliable system for daily tasks, this motherboard is designed to keep up with your demands.
Upgrade Your PC with MSI PRO B760M-A Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX 243.84mmx243.84mm |
| Graphics | 2x HDMI Support HDMI 2.1, the maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, the maximum resolution of 4K 60Hz |
| Raid controller | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL B760 |
| Slots | 4 |
| Audio | 1x Front Audio (JAUD) |
| Type | DDR4 |
| Interface | |
| HDMI | 2x HDMI |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 2x DisplayPort |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
