Key highlights
- Form Factor: 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) m-ATX Form Factor
- Supported CPU: Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
- Chipset: AMD B450 Chipset
- M.2 Socket: 1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices
- PCI: 1 x PCIe 3.0 x16 slot 1st, 2nd and 3rd Gen AMD Ryzen support x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode Athlon with Radeon Vega Graphics support x4 mode 2 x PCIe 2.0 x1 slots
Description
High-Performance AMD AM4 Gaming Motherboard in Jashore

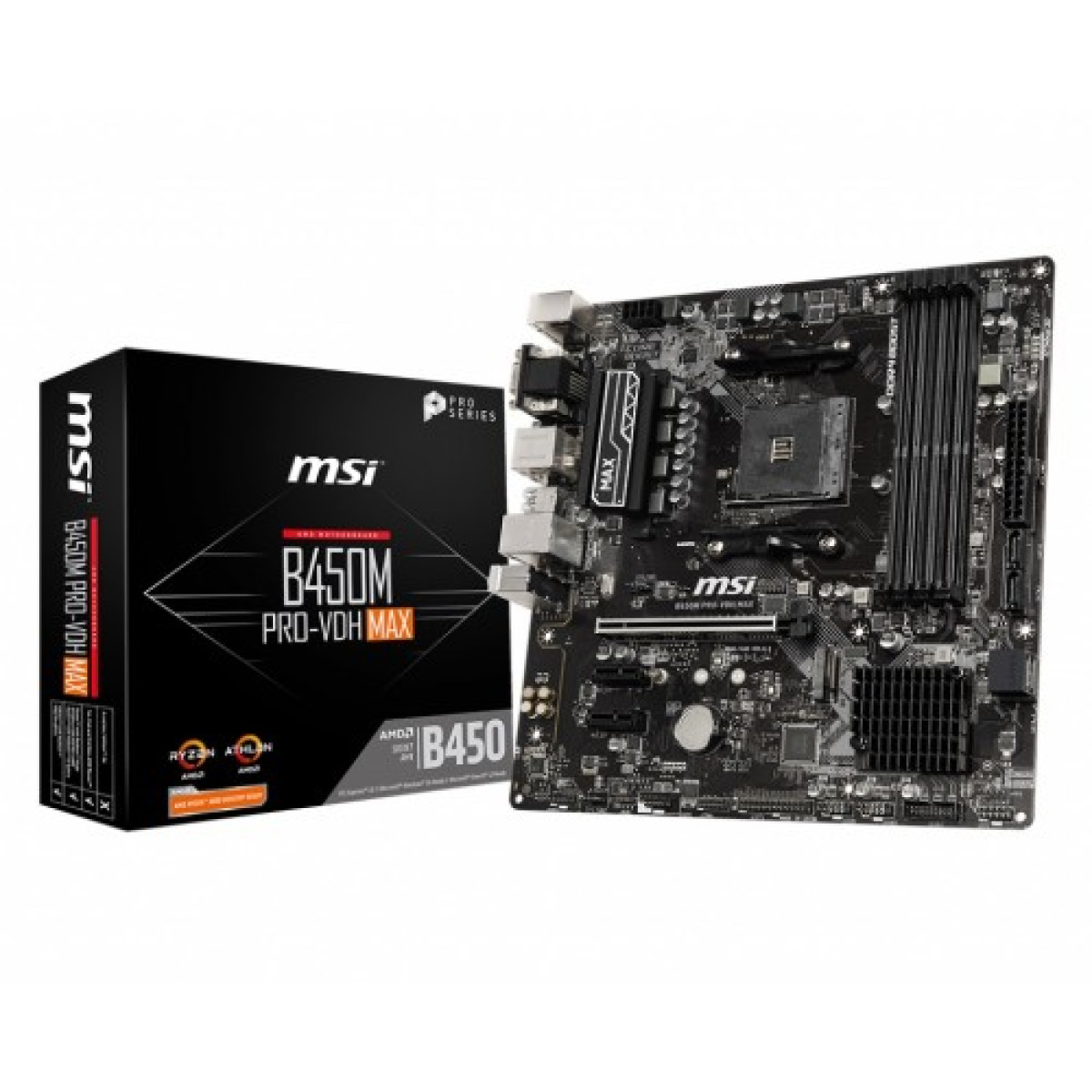

Elevate Your Gaming Experience with the MSI B450M PRO-VDH MAX
The MSI B450M PRO-VDH MAX is a top-tier AMD AM4 Gaming Motherboard designed for gamers and PC builders in Bangladesh looking for reliability and performance. Featuring the AM4 socket, this motherboard supports the latest Ryzen processors, ensuring you can handle even the most demanding games with ease. With a compact micro-ATX form factor, it's perfect for building a powerful gaming rig without taking up too much space.
One of the standout features of this motherboard is its DDR4 memory support, allowing for speeds of up to 4133 MHz (OC). This means faster load times and improved performance in graphic-intensive applications. The Audio Boost technology enhances your gaming experience by delivering immersive sound quality, while the Turbo M.2 slot allows for lightning-fast SSD performance, making loading times a thing of the past.
Additionally, the motherboard is equipped with multiple USB ports for easy connectivity of peripherals, ensuring your gaming setup is as efficient as possible. The Steel Armor feature provides added durability and protection for your graphics card, ensuring longevity even during intense gaming sessions.
Unleash Your Gaming Potential with MSI B450M PRO-VDH
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) m-ATX Form Factor |
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD B450 Chipset |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices |
| PCI | 1 x PCIe 3.0 x16 slot 1st, 2nd and 3rd Gen AMD Ryzen support x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode Athlon with Radeon Vega Graphics support x4 mode 2 x PCIe 2.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | Maximum shared memory of 2048 MB |
| Graphics | 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz |
| Memory Specifications | |
| Maximum Size | 64GB |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE) For AMD Other Processors Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) Supports Dual Channel mode Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory |
| Type | Dual Channel Architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
| DVI-D (s) | Yes1 x DVI-D port (resolution of 1920x1200@60Hz) |
| HDMI | 1 x HDMI 1.4 port (resolution of 4096x2160 @30Hz, 2560x1600 @60Hz) |
| LAN Port (s) | 1 x Realtek 8111H Gigabit LAN controller |
| Supported Storage | AMD B450 Chipset 4 x SATA 6Gb/s ports Supports RAID 0, RAID1 and RAID 10 1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices |
| USB (s) | AMD B450 Chipset 2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors) AMD processor 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
