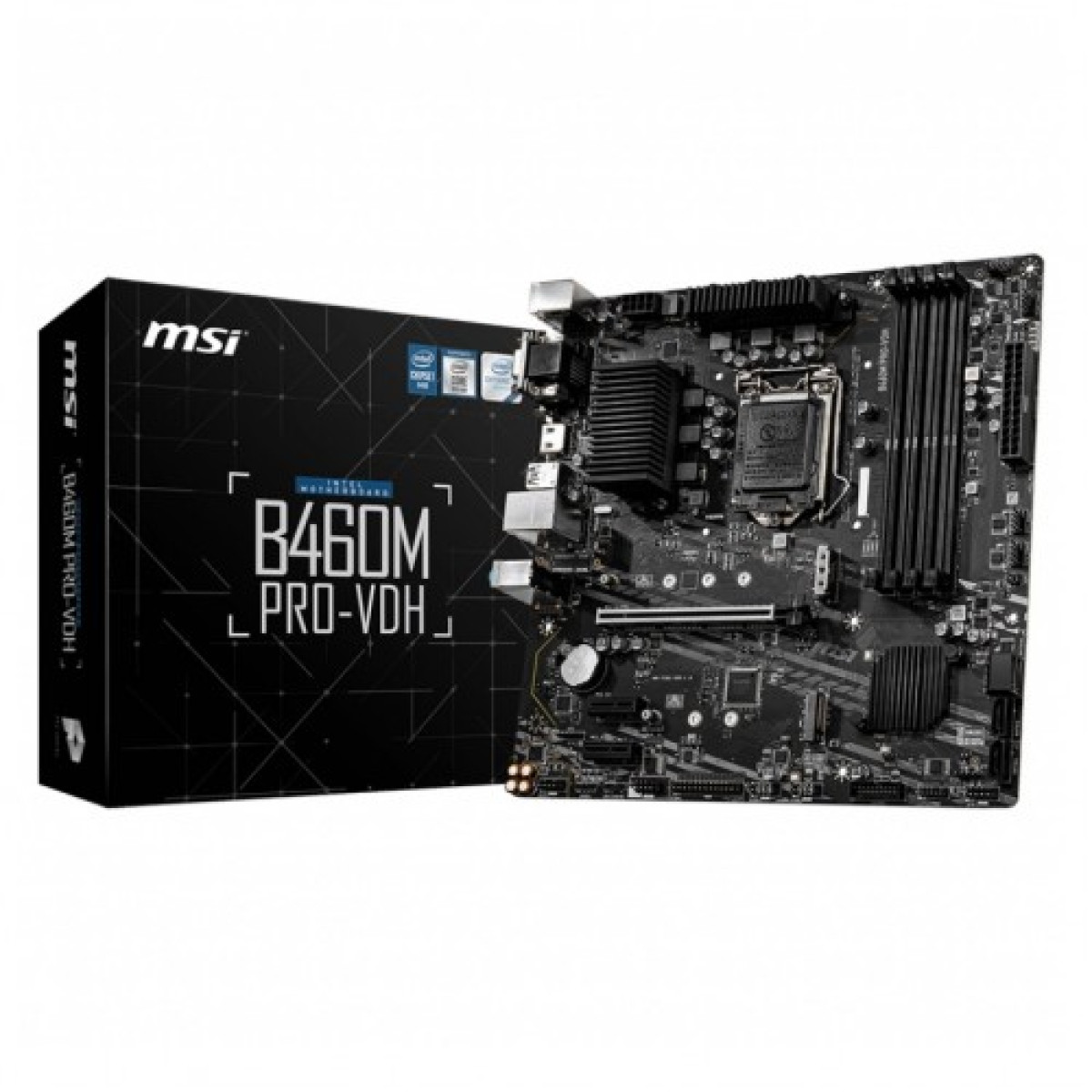

MSI B460M PRO-VDH 10th Gen Micro ATX Motherboard
৳9,800
Key highlights
- Form Factor: mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Supported CPU: Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket.
- Chipset: Intel B460 Chipset
- Memory: 128GB
- Slots: 4x DDR4 memory slots
Description
Get the Best Performance with MSI B460M PRO-VDH
Elevate Your Build with MSI B460M PRO-VDH Motherboard
The MSI B460M PRO-VDH is a robust Micro ATX motherboard designed specifically for Intel's 10th generation processors. This motherboard not only enhances your computing experience but also ensures reliability and performance. With support for DDR4 memory up to 2933 MHz, it offers seamless multitasking and improved responsiveness for everyday tasks and gaming.
Featuring multiple expansion slots, including PCIe 3.0 x16 for graphics cards, and M.2 slots for ultra-fast SSDs, the B460M PRO-VDH provides the flexibility needed for future upgrades. The Audio Boost technology delivers high-definition sound quality, making it a perfect choice for gamers and media enthusiasts alike.
Additionally, the motherboard is equipped with USB 3.2 Gen 1 ports for lightning-fast data transfer, ensuring your peripherals perform at their best. The Military Class 4 components enhance durability and longevity, making this motherboard a reliable choice for your PC build.
Invest in the MSI B460M PRO-VDH for a balanced blend of performance, features, and reliability that meets the needs of both casual users and hardcore gamers.
Upgrade Your System with Reliable Micro ATX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket. |
| Chipset | Intel B460 Chipset |
| Memory | 128GB |
| Slots | 4x DDR4 memory slots |
| Audio | 1x front panel audio connector |
| Connectivity | |
| VGA | 1x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz |
| Expansion Slots | |
| M.2 Socket | 2x M.2 slots (Key M) |
| PCI | 1x PCIe 3.0 x16 slot (from CPU) 2x PCIe x1 slots (from PCH) |
| Graphics Specifications | |
| Graphics | 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz |
| Memory Specifications | |
| Supported Memory | Intel Core i7/ i9 Support DDR4-2933 Memory (Max.) Intel Core i5 (Below) Supports DDR4-2666 Memory (Max.) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz |
| LAN Port (s) | 1x Realtek RTL8111H Gigabit LAN Controller |
| Supported Storage | Intel B460 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260 / 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready for the M2_2 slot only Supports Intel Smart Response Technology for Intel Core processors |
| USB (s) | Intel B460 Chipset 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x parallel port connector 1x serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
