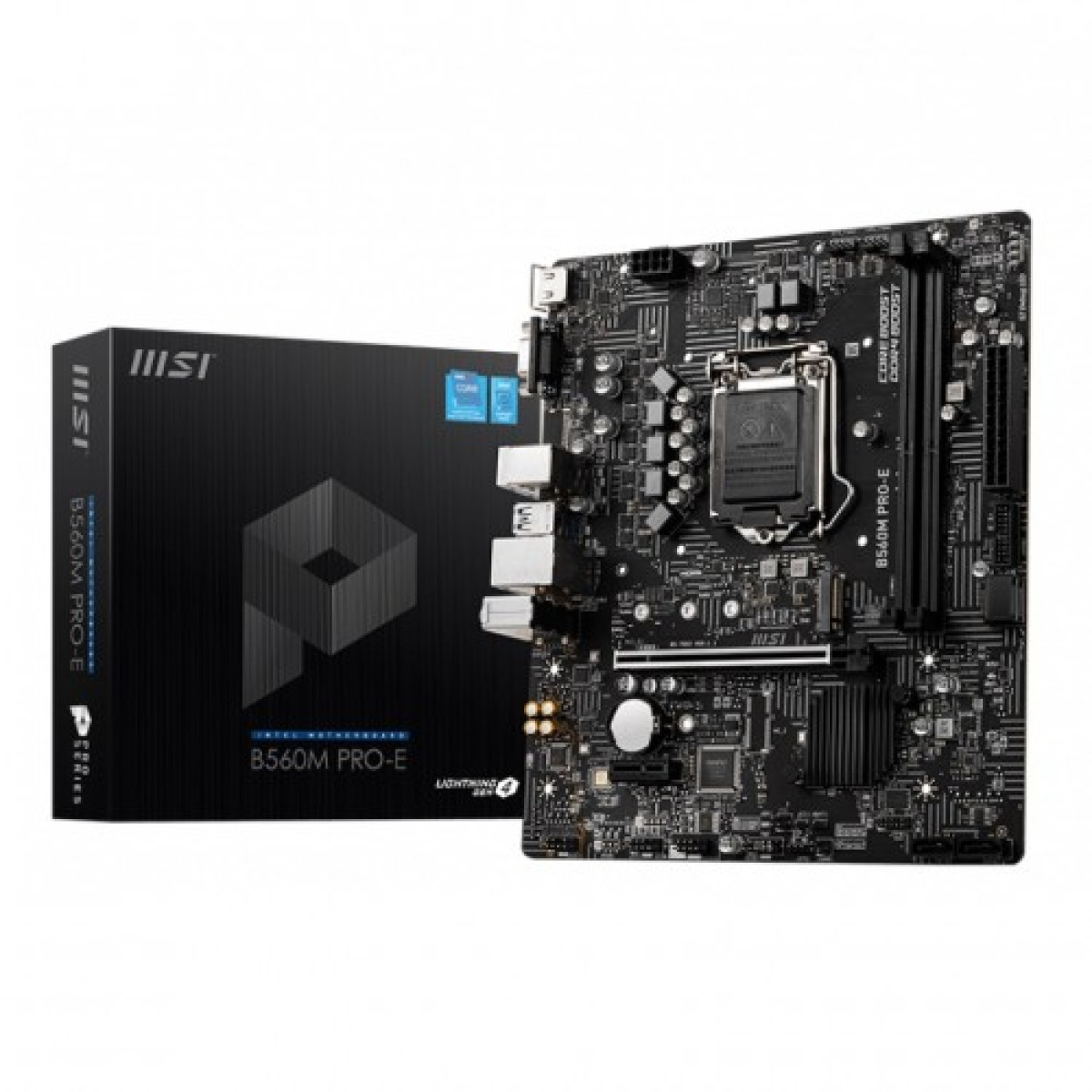

MSI B560M PRO-E Motherboard for 10th and 11th Gen CPUs
- Brand: MSI
- Product Code: B560M PRO-E
- Availability: Out Of Stock
Specification
| BASIC INFORMATION | |
| Form Factor | mATX Form Factor 9.29 in. x 7.95 in. (23.6 cm x 20.2 cm) |
| Others | 1 x TPM module connector |
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200 |
| Chipset | Intel B560 chipset |
| Audio | Realtek AL897 Codec 7.1-Channel High Definition Audio |
| BIOS | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
| Connectivity | |
| VGA | 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot (Key M) |
| PCI | 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 1x PCIe 3.0 x1 slots (From B560 chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz |
| Memory Specifications | |
| Maximum Memory | Up to 64GB |
| Slots | 2x DDR4 memory slots |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800 MHz 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 1x Front panel audio connector |
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports (From B560 Chipset) 1x M.2 slot (Key M) M2_1 slot (From B560 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| USB (s) | 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
Description
Experience Unmatched Performance with MSI B560M PRO-E
The MSI B560M PRO-E Micro ATX Motherboard is a powerhouse designed for both 10th and 11th Gen Intel processors. With its robust build and advanced features, this motherboard offers superior performance for gamers and professionals alike. Optimized for efficiency, it supports high-speed memory with overclocking capabilities, ensuring that your system runs smoothly even under heavy loads.
Equipped with multiple USB ports for connectivity and enhanced cooling solutions, the MSI B560M PRO-E keeps your components operating at optimal temperatures. The motherboard’s premium capacitors and solid hardware guarantee longevity and reliability, making it a great investment for your computing needs.
With features like Dual Channel DDR4 and PCIe 4.0 support, you can enjoy faster data transfer rates and improved graphics performance. The intuitive BIOS interface allows for easy customization, while the steel-reinforced PCIe slots provide added durability for heavy graphics cards.
