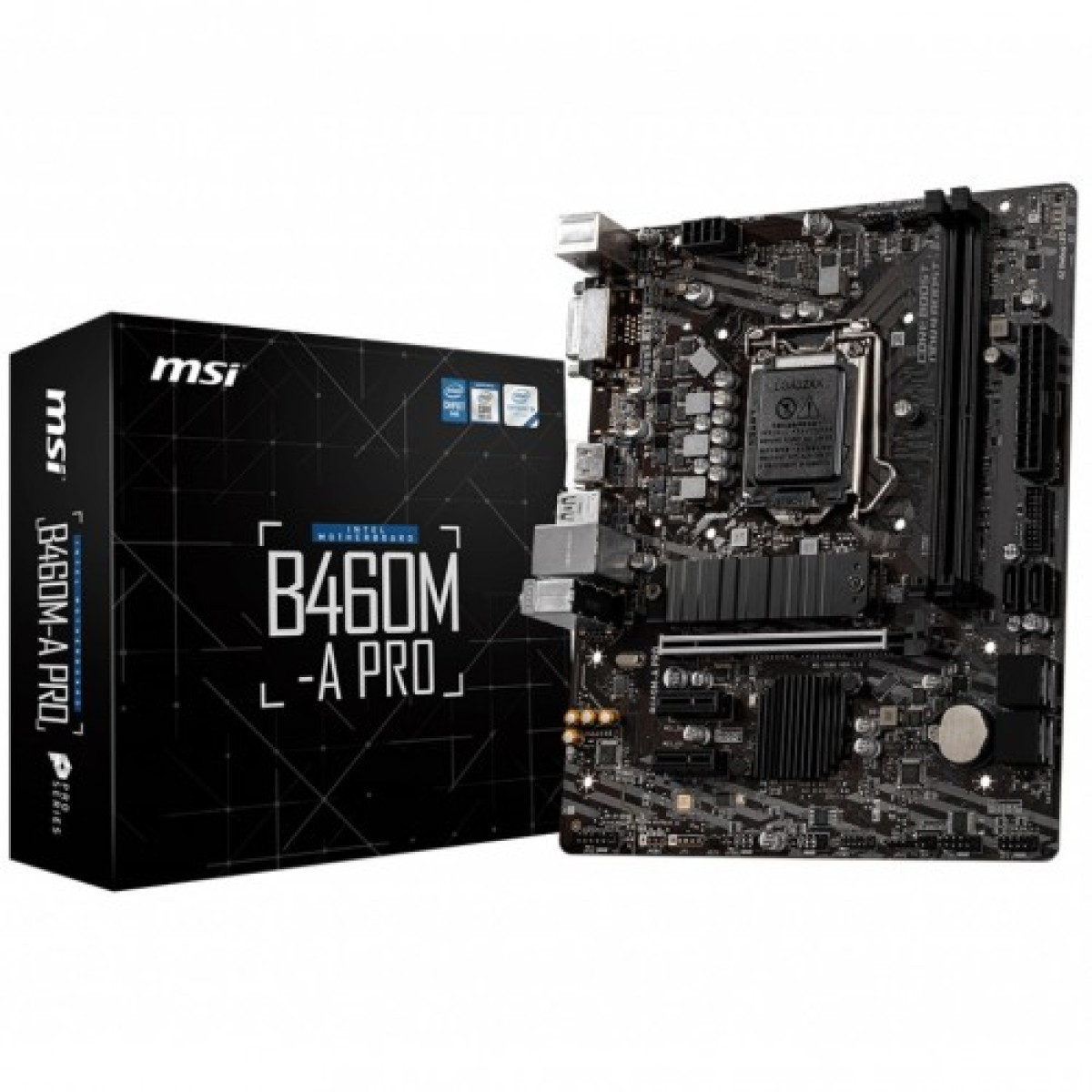

MSI Intel B460M-A Pro 10th Gen Intel Motherboard
৳9,000
Key highlights
- Form Factor: Miro-ATX Form Factor 9.3 in. x 7.6 in. (23.6 cm x 19.2 cm)
- Supported CPU: Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
- Chipset: Intel B460
- Memory: 64GB
- Slots: 2x DDR4 memory slots
Description
High-Performance MSI B460M-A Pro for Gamers and Builders
Unleash Your Potential with the MSI Intel B460M-A Pro Motherboard
The MSI Intel B460M-A Pro is designed to elevate your computing experience, whether for professional tasks or gaming adventures. Built for the 10th generation Intel processors, this motherboard offers exceptional performance and reliability. With its Micro-ATX form factor, it fits perfectly into compact builds while providing essential features for power users.
Key benefits include support for dual-channel DDR4 memory up to 2933MHz, ensuring lightning-fast data access and multitasking capabilities. The motherboard also features USB 3.2 Gen 1 ports for fast data transfers and an array of SATA III connectors for ample storage options. Enhanced audio performance is guaranteed with the Realtek ALC892 codec, delivering crystal-clear sound whether you’re gaming or enjoying music.
Additionally, the MSI B460M-A Pro comes equipped with multiple PCIe slots that allow for easy expansion, whether you want to add a dedicated graphics card or other peripherals. Its robust design incorporates military-grade components for durability and longevity, making it a wise investment for any PC build.
Upgrade Your PC with MSI Intel B460M-A Pro Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Miro-ATX Form Factor 9.3 in. x 7.6 in. (23.6 cm x 19.2 cm) |
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket |
| Chipset | Intel B460 |
| Memory | 64GB |
| Slots | 2x DDR4 memory slots |
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
| BIOS | 1x 128 Mb flash UEFI AMI BIOS Multi-language |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices |
| PCI | 1x PCIe 3.0 x16 slot 2x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | 1GB |
| Graphics | 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz |
| Memory Specifications | |
| Supported Memory | Intel Core i7/ i9 Supports up to DDR4 2933 MHz Intel Core i5 and below Supports up to DDR4 2666 MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | Dual-Channel Architecture |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1x DVI-D port, maximum resolution of 1920x1200 @60Hz |
| HDMI | 1x HDMI 1.4 port, maximum resolution of 4096x2160 @30Hz |
| LAN Port (s) | 1x Realtek 8111H Gigabit LAN controller |
| Supported Storage | Intel B460 Chipset 6x SATA 6Gb/s ports 1x M.2 slot (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
| USB (s) | Intel B460 Chipset 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED |
| Special | |
| Special Feature | Intel B460 Chipset Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
