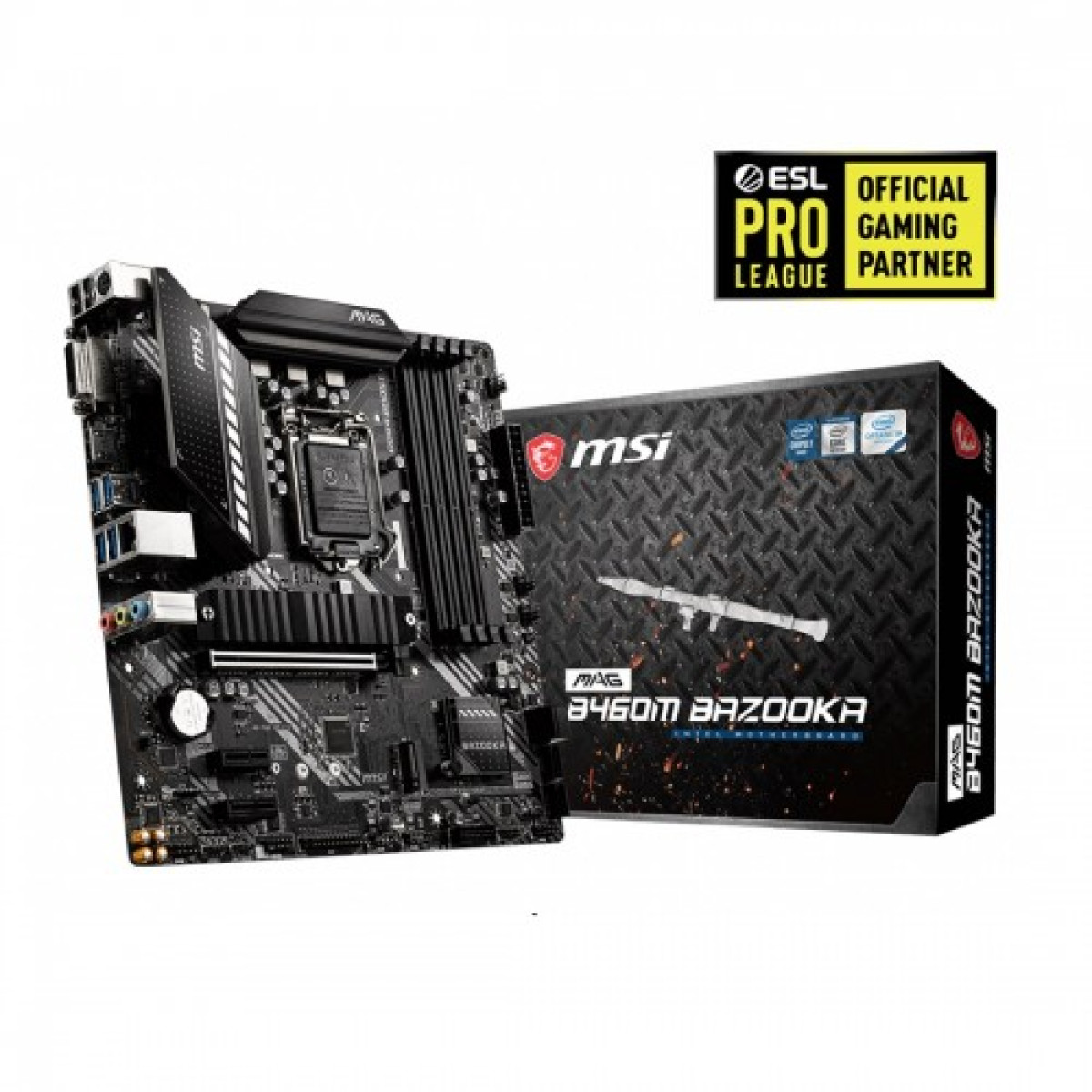

MSI MAG B460M BAZOOKA Intel Motherboard
Key highlights
- Form Factor: mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Supported CPU: Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
- Chipset: Intel B460
- Memory: 128GB
- Slots: 4x DDR4 memory slots
Description
Affordable MSI MAG B460M BAZOOKA for Gamers & Builders
Unleash the Power of Gaming with MSI MAG B460M BAZOOKA
The MSI MAG B460M BAZOOKA Intel Motherboard is tailored for gamers and PC enthusiasts seeking performance without breaking the bank. With a micro-ATX form factor, this motherboard fits perfectly in compact builds while still offering a robust set of features. Equipped with the latest Intel B460 chipset, it supports 10th Gen Intel Core processors, ensuring that you have the power needed for intense gaming sessions and demanding applications.
Enhanced Cooling Solutions are a hallmark of the MSI MAG B460M BAZOOKA. It includes multiple fan headers and dedicated cooling zones, ensuring that your system remains cool even during the most intense gaming marathons. The motherboard also features MSI's Mystic Light technology, allowing for a customizable RGB lighting experience that synchronizes with other compatible components.
Additionally, with support for DDR4 memory up to 2933 MHz, you can enjoy faster data transfer rates and improved overall system performance. The Audio Boost technology provides an immersive sound experience, making it a perfect choice for gamers who value audio quality. With its durable construction, including reinforced PCIe slots and high-quality capacitors, the MSI MAG B460M BAZOOKA is built to last.
Features of MSI MAG B460M BAZOOKA Intel Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket |
| Chipset | Intel B460 |
| Memory | 128GB |
| Slots | 4x DDR4 memory slots |
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
| BIOS | 1x 128 Mb flash UEFI AMI BIOS ACPI 6.2, SM BIOS 3.2 Multi-language |
| Expansion Slots | |
| PCI | 1x PCIe 3.0 x16 slot (from CPU) 2x PCIe x1 slots (from PCH) |
| Graphics Specifications | |
| Graphics | 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz |
| Memory Specifications | |
| Supported Memory | Intel Core i7/i9 Support DDR4-2933 Memory (Max.) Intel Core i5 (Below) Supports DDR4-2666 Memory (Max.) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| LAN Port (s) | 1x Realtek RTL8111H Gigabit LAN Controller |
| Supported Storage | 4x SATA 6Gb/s ports 1 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1 M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready 2 Supports Intel Smart Response Technology for Intel Core processors |
| USB (s) | 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x parallel port connector 1x serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector |
| Special | |
| Special Feature | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 4x EZ Debug LED |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
