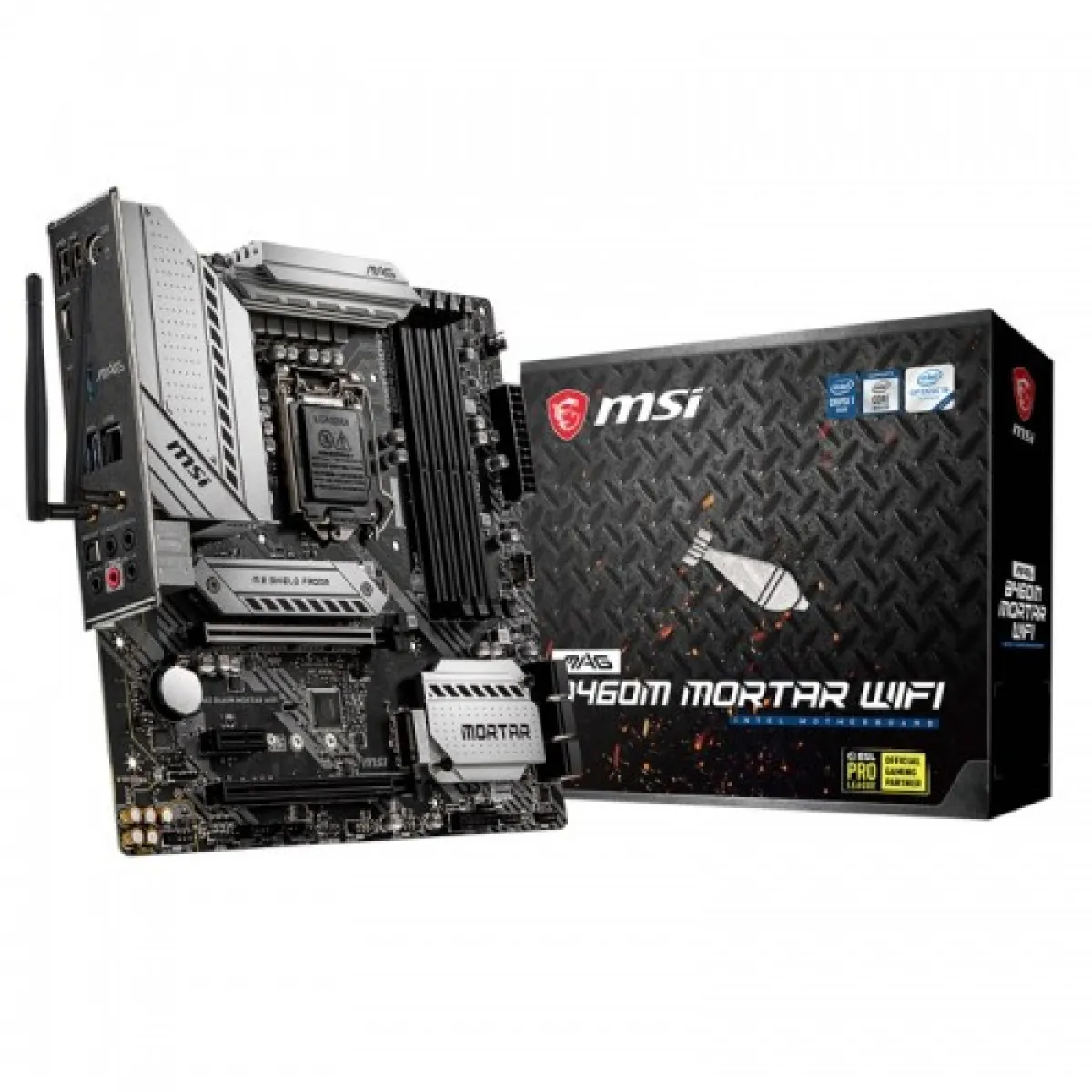

MSI MAG B460M Mortar Wi-Fi Intel 10th Gen Micro-ATX Motherboard
Key highlights
- Form Factor: mATX Form Factor 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
- Supported CPU: Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
- Chipset: Intel B460 Chipset
- Memory: 128GB
- Slots: 4x DDR4 memory slots
Description
Intel 10th Gen Micro-ATX Motherboard for Gamers
Elevate Your Gaming Experience with MSI MAG B460M Mortar Wi-Fi
The MSI MAG B460M Mortar Wi-Fi is a premium Micro-ATX motherboard designed for Intel's 10th Generation processors, offering a perfect blend of performance, reliability, and advanced features. This motherboard is ideal for gamers and PC enthusiasts in Bangladesh who demand high-quality components to enhance their gaming rigs.
Equipped with Wi-Fi 6 technology, the MAG B460M ensures lightning-fast wireless connectivity, allowing you to game seamlessly without interruptions. The dual-channel DDR4 memory support provides exceptional speed and efficiency, ensuring that your system can handle even the most demanding applications.
With its robust MIL-STD-810G certified components, the MSI MAG B460M is built to last. It features a well-designed cooling solution with multiple fan headers and a dedicated heat sink for improved thermal performance. This means you can enjoy long gaming sessions without worrying about overheating.
This motherboard also supports RGB lighting, allowing you to customize your build's aesthetics to match your style. The intuitive BIOS interface makes system tuning and overclocking a breeze, enabling you to get the most out of your hardware. Overall, the MSI MAG B460M Mortar Wi-Fi is not just a motherboard; it's a gateway to an enhanced gaming experience.
High-Performance Features of MSI MAG B460M Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm) |
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket |
| Chipset | Intel B460 Chipset |
| Memory | 128GB |
| Slots | 4x DDR4 memory slots |
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| BIOS | 1x 128 Mb flash UEFI AMI BIOS ACPI 6.2, SM BIOS 3.2 ∙Multi-language |
| Expansion Slots | |
| M.2 Socket | 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices |
| PCI | 1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH, supports x4 mode) 1x PCIe 3.0 x1 slot (from PCH) |
| Graphics Specifications | |
| Graphics | 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz |
| Memory Specifications | |
| Supported Memory | Intel Core i7/ i9 Support DDR4-2933 Memory (Max.) Intel Core i5 Supports DDR4-2666 Memory (Max.) Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz |
| HDMI | 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz |
| LAN Port (s) | 1x Realtek RTL8125B 2.5G LAN Controller WIFI & BLUETOOTH: Intel AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot |
| Supported Storage | Intel® B460 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready for the M2_2 slot only Supports Intel Smart Response Technology for Intel Core™ processors |
| USB (s) | Intel B460 Chipset 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port through the internal USB connector) 5x USB 3.2 Gen 1 5Gbps Type-A ports (3 ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 1 5Gbps Type-C connector 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TBT connector 1x RTD3 connector |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
