Key highlights
- Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Graphics: 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz Support HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096 x 2160 @60Hz Supports 2-Way AMD CrossFire Technology
- Supported CPU: Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
- Chipset: AMD B550 Chipset
- Type: DDR4
Description

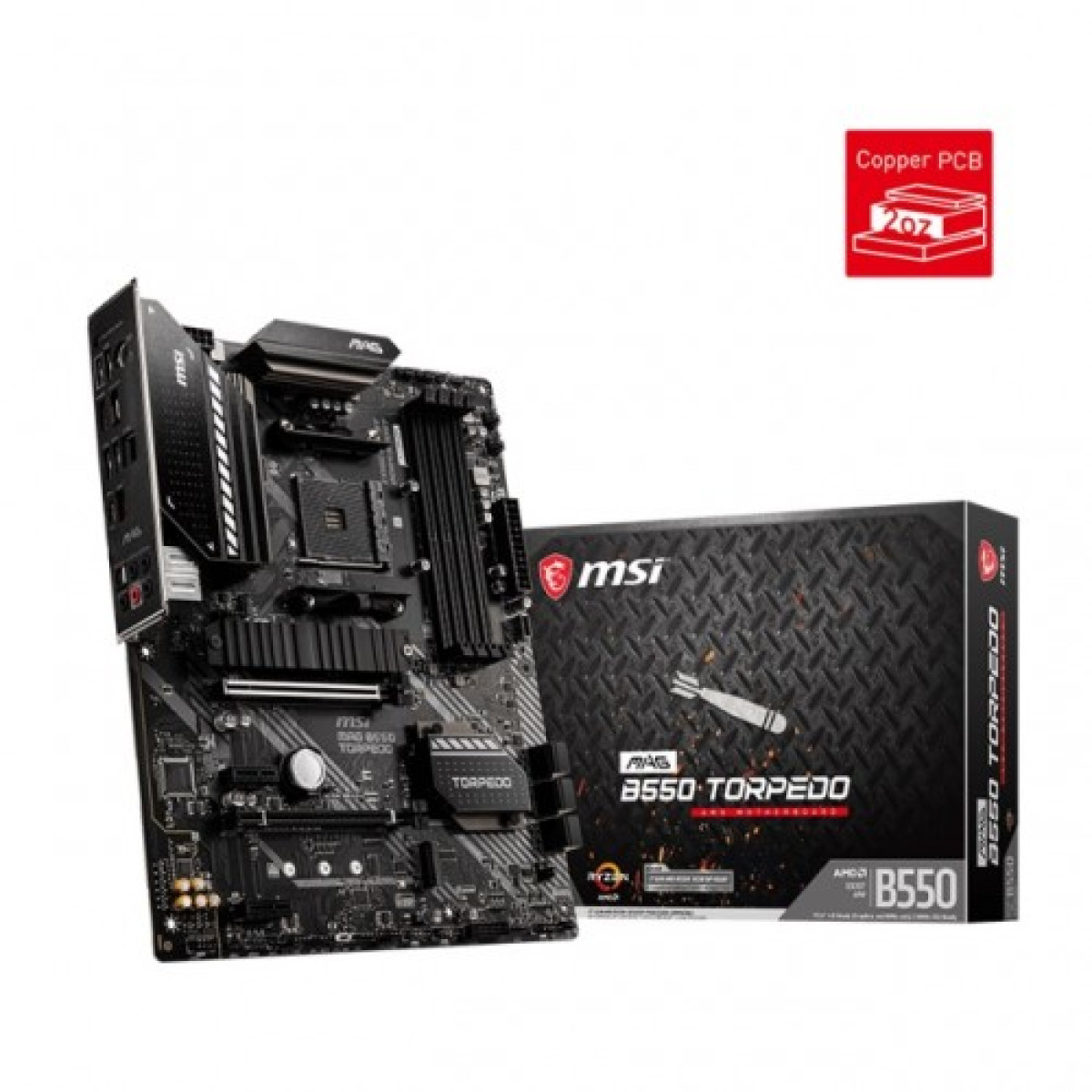

Explore Features of MSI MAG B550 TORPEDO Motherboard
Unleash Your Gaming Potential with MSI MAG B550 TORPEDO
The MSI MAG B550 TORPEDO AM4 ATX Motherboard is designed for gamers and PC enthusiasts who demand high performance and reliability. Featuring the AMD B550 chipset, this motherboard supports the latest Ryzen processors, ensuring unmatched speed and efficiency. With advanced thermal solutions and a robust power design, the MAG B550 TORPEDO guarantees stability even during intense gaming sessions.
Equipped with PCIe 4.0 slots, this motherboard allows for lightning-fast data transfer rates, making it perfect for high-speed SSDs and graphics cards. The Lightning USB 3.2 Gen 2 connectivity provides fast data transfer for peripherals, enhancing your gaming setup. Additionally, the motherboard boasts Audio Boost technology for immersive sound experiences, essential for competitive gaming.
With its customizable Mystic Light RGB, the MAG B550 TORPEDO not only performs well but also looks stunning in any build. The user-friendly BIOS interface makes overclocking and system tuning accessible, even for beginners. Choose the MSI MAG B550 TORPEDO for a motherboard that combines performance, aesthetics, and durability, making it a top choice for gamers in Bangladesh.
Top Performance with MSI MAG B550 ATX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz Support HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096 x 2160 @60Hz Supports 2-Way AMD CrossFire Technology |
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors |
| Chipset | AMD B550 Chipset |
| Type | DDR4 |
| Expansion Slots | |
| M.2 Socket | M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| PCI | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | 16GB |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 x memory slots |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733/ 4800/ 4866+ MHz by A-XMP OC MODE 1DPC 1R max speed 4866 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort, supports a maximum resolution of 4096 x 2160 @60Hz |
| HDMI | 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
