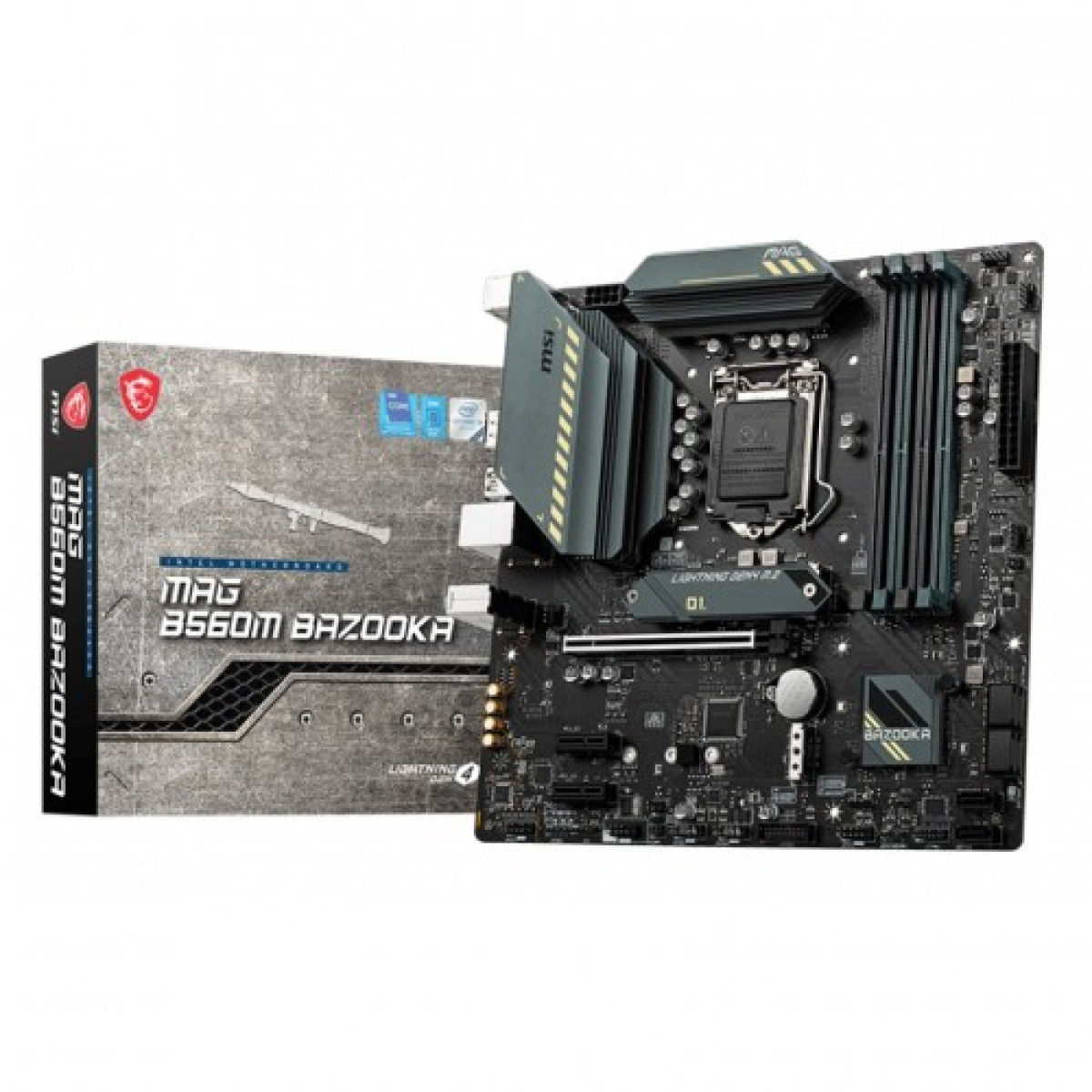

MSI MAG B560M BAZOOKA 10th and 11th Gen Micro ATX Motherboard
৳12,300
Key highlights
- Form Factor: Micro ATX Form Factor
- Graphics: 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
- Supported CPU: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium® Gold, and Celeron Processors
- Chipset: Intel B560 Chipset
- Slots: 4 x DIMM slots
Description
Powerful 10th and 11th Gen Motherboard for Gamers
MSI MAG B560M BAZOOKA - Elevate Your Gaming Experience
The MSI MAG B560M BAZOOKA is a feature-rich Micro ATX motherboard designed to support both 10th and 11th generation Intel processors, making it an ideal choice for gamers, content creators, and PC enthusiasts alike. With its robust build quality and advanced technology, the B560M BAZOOKA guarantees an excellent foundation for your next PC build. This motherboard is engineered to deliver superior performance, enhanced connectivity, and remarkable durability, ensuring that your system runs smoothly under all conditions.
One of the standout features of the B560M BAZOOKA is its support for PCIe 4.0, enabling faster data transfer rates and improved graphics performance. The motherboard comes equipped with dual M.2 slots that support NVMe SSDs, allowing users to take advantage of blazing-fast storage solutions. Additionally, the B560M BAZOOKA provides USB 3.2 Gen 2 connectivity for rapid file transfers and peripheral connectivity, making it an excellent choice for users who demand speed and efficiency.
Another key benefit of this motherboard is its enhanced thermal design. With multiple fan headers and an integrated heatsink, the B560M BAZOOKA keeps your system cool, even during intensive gaming sessions or heavy workloads. This thermal management not only prolongs the lifespan of your components but also ensures stable performance throughout.
For those who value aesthetics, the B560M BAZOOKA features customizable RGB lighting, allowing you to personalize your build and create a stunning visual experience. This feature is particularly appealing to gamers and PC builders who want their system to stand out.
In terms of use cases, the B560M BAZOOKA is perfect for building a high-performance gaming rig, a powerful workstation for content creation, or a versatile home PC. Its compatibility with a wide range of CPUs and RAM ensures that it can adapt to various user needs, making it a future-proof choice.
Customers should consider the MSI MAG B560M BAZOOKA not only for its performance but also for its value. With a competitive price point, this motherboard offers features typically found in higher-end models. Its reliability, combined with MSI's reputation for quality, makes it a sound investment for anyone looking to build or upgrade their PC.
High-Performance MSI MAG B560M BAZOOKA Motherboard Review
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium® Gold, and Celeron Processors |
| Chipset | Intel B560 Chipset |
| Slots | 4 x DIMM slots |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Type | DDR4 |
| Memory Specifications | |
| Maximum Memory | Up to 128GB |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Serial port connector 1x Tuning Controller connector |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU(From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices M2_2 slot(from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | Intel B560 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 2x USB 2.0 Type-A ports on the back panel USB Hubs GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors |
