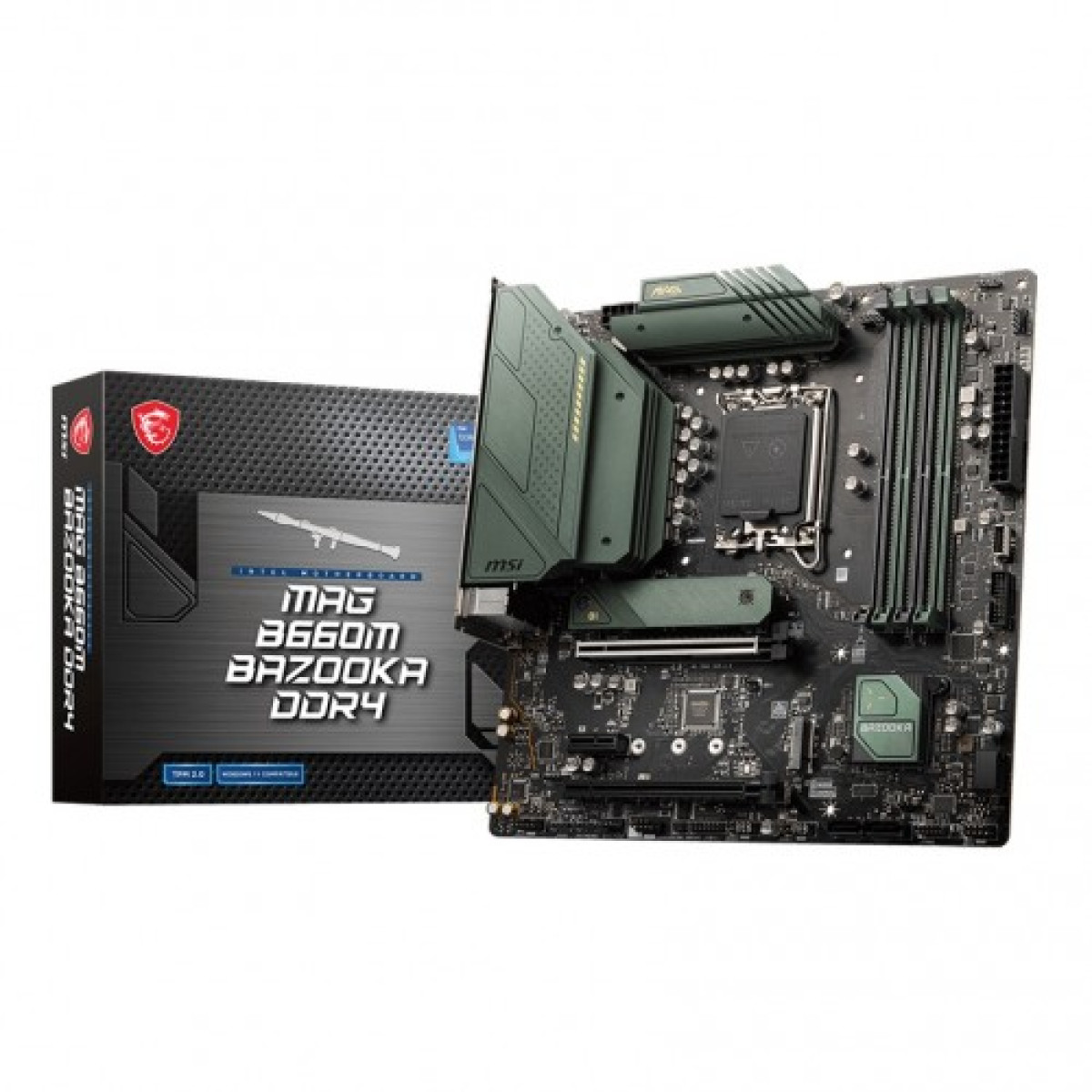

MSI MAG B660M BAZOOKA DDR4 12th Gen Micro-ATX Motherboard
Key highlights
- Form Factor: Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
- SpecialFeatures: Supports 2-Way AMD® CrossFire Technology
- Supported CPU: Supports 12th Gen Intel Core Processors Processor socket LGA1700
- Chipset: Intel B660 Chipset
Description
Upgrade Your PC with MSI B660M BAZOOKA Motherboard
Elevate Your Gaming Experience with MSI MAG B660M BAZOOKA
The MSI MAG B660M BAZOOKA DDR4 Motherboard is designed for gamers and PC enthusiasts who demand high performance and reliability. Featuring a micro-ATX form factor, this motherboard offers a perfect balance of size and functionality, making it ideal for compact builds without sacrificing features. Powered by Intel's 12th Generation processors, it supports cutting-edge technologies that enhance your gaming and multitasking experience.
With DDR4 memory support, the MSI MAG B660M BAZOOKA allows for fast data transfer rates, ensuring smoother gameplay and quicker load times. The motherboard is equipped with advanced thermal solutions to keep your system cool during intense gaming sessions. Additionally, the robust build quality and durable components ensure longevity, giving you peace of mind while you push your system to its limits.
Connectivity is also top-notch, featuring multiple USB ports, HDMI output, and support for high-speed networking. This makes it easy to connect all your peripherals and enjoy seamless online gaming. Experience the difference with the MSI MAG B660M BAZOOKA, a motherboard that combines performance, reliability, and style.
12th Gen Support for Exceptional Performance and Stability
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
| SpecialFeatures | Supports 2-Way AMD® CrossFire Technology |
| Supported CPU | Supports 12th Gen Intel Core Processors Processor socket LGA1700 |
| Chipset | Intel B660 Chipset |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Type | DDR4 |
| Interface | |
| HDMI | 1x HDMI 2.1 with HDR port |
| Memory Specifications | |
| Maximum Memory | Support up to 128GB |
| Slots | 4x DDR4 memory slots |
| PORTS, CONNECTORS & SLOTS | |
| LAN Port (s) | 1x Realtek 8125BG 2.5Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory Supports Intel Smart Response Technology for Intel Core processors Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | Intel B660 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) Asmedia ASM1074 2x USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
