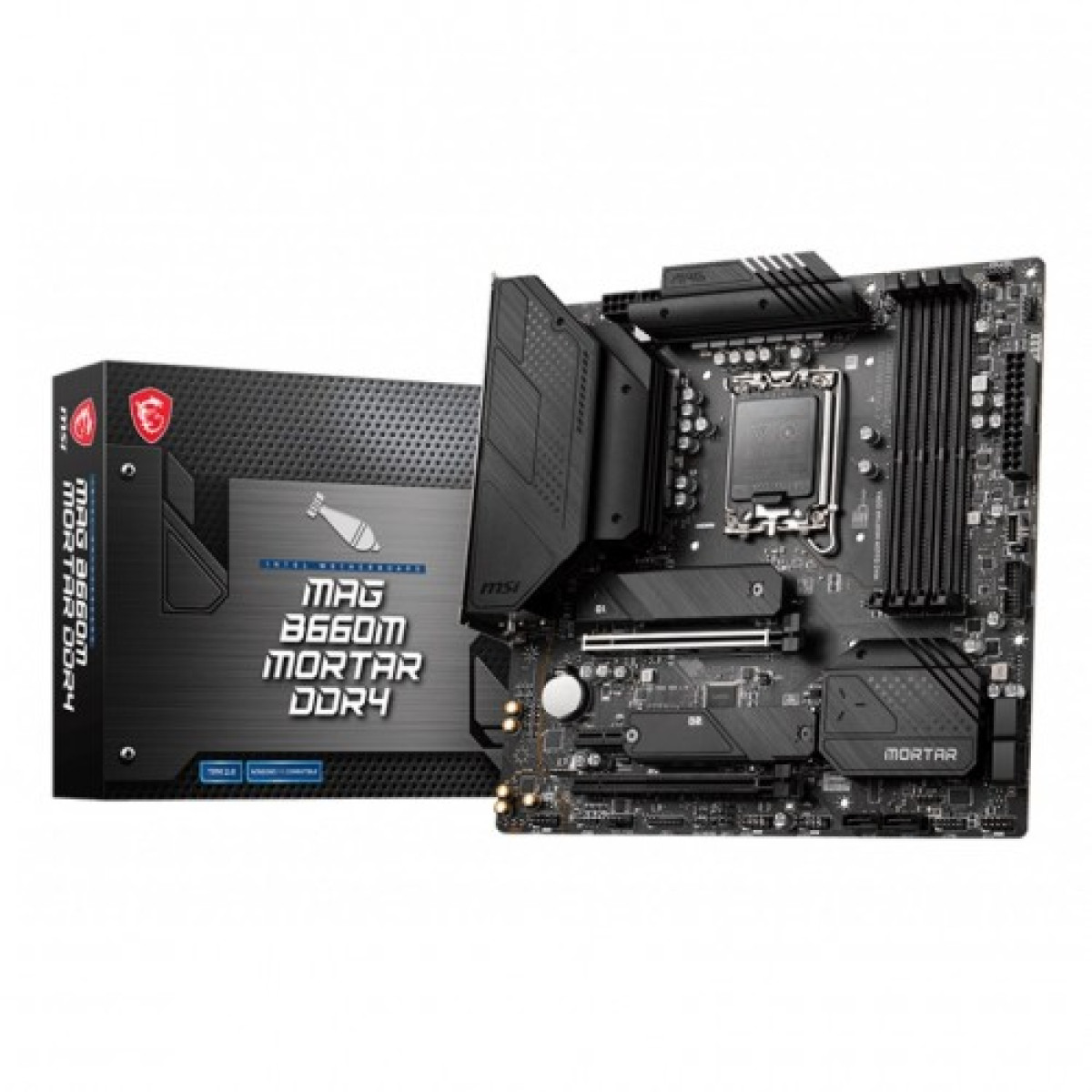

MSI MAG B660M MORTAR DDR4 12th Gen Micro-ATX Motherboard
Key highlights
- Form Factor: Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- SpecialFeatures: Supports 2-Way AMD CrossFire Technology
- Supported CPU: Supports 12th Gen Intel Core, Pentium Gold and Celeron processors Processor socket LGA1700
- Chipset: Intel B660 Chipset
- Audio: 7.1-Channel High Definition Audio Supports S/PDIF output
Description
High-Performance Micro-ATX Motherboard in Jashore
Elevate Your Gaming with the MSI MAG B660M MORTAR DDR4 Motherboard
The MSI MAG B660M MORTAR DDR4 motherboard is designed to cater to the needs of gamers and PC builders who demand performance and reliability. Built on the Intel B660 chipset, this Micro-ATX motherboard supports the latest 12th Generation Intel processors, ensuring that you have the power to handle any task, from gaming to content creation. Experience lightning-fast data transfer speeds with PCIe 4.0 slots, while the DDR4 memory support allows for up to 128GB of RAM, providing ample memory for multitasking and demanding applications.
With a robust thermal solution including extended heatsinks and a dedicated thermal pad, the MSI MAG B660M MORTAR keeps your system cool during intense gaming sessions. The motherboard is equipped with multiple USB ports and high-definition audio outputs, ensuring you stay connected and immersed in your gaming world. Durability is key with MSI’s military-grade components, offering longevity and stability for your PC build. Additionally, the user-friendly BIOS interface allows for easy overclocking and system tuning, making it suitable for both novices and experienced builders. Choose the MSI MAG B660M MORTAR DDR4 motherboard for a reliable, high-performance foundation for your next gaming rig.
Upgrade Your Build with MSI B660M MORTAR Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| SpecialFeatures | Supports 2-Way AMD CrossFire Technology |
| Supported CPU | Supports 12th Gen Intel Core, Pentium Gold and Celeron processors Processor socket LGA1700 |
| Chipset | Intel B660 Chipset |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
| Type | DDR4 |
| Expansion Slots | |
| PCI | 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot |
| Memory Specifications | |
| Maximum Memory | support up to 128GB |
| Slots | 4x DDR4 memory slots |
| Supported Memory | Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | DisplayPort 1.4 (BACK PANEL PORTS) |
| HDMI | HDMI 2.1 Port (BACK PANEL PORTS) |
| Internal I/O Ports | INTERNAL CONNECTORS: 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector BACK PANEL PORTS: USB 2.0 Port USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port HD Audio Connectors USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT |
| LAN Port (s) | 2.5G LAN Port |
| Supported Storage | 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
