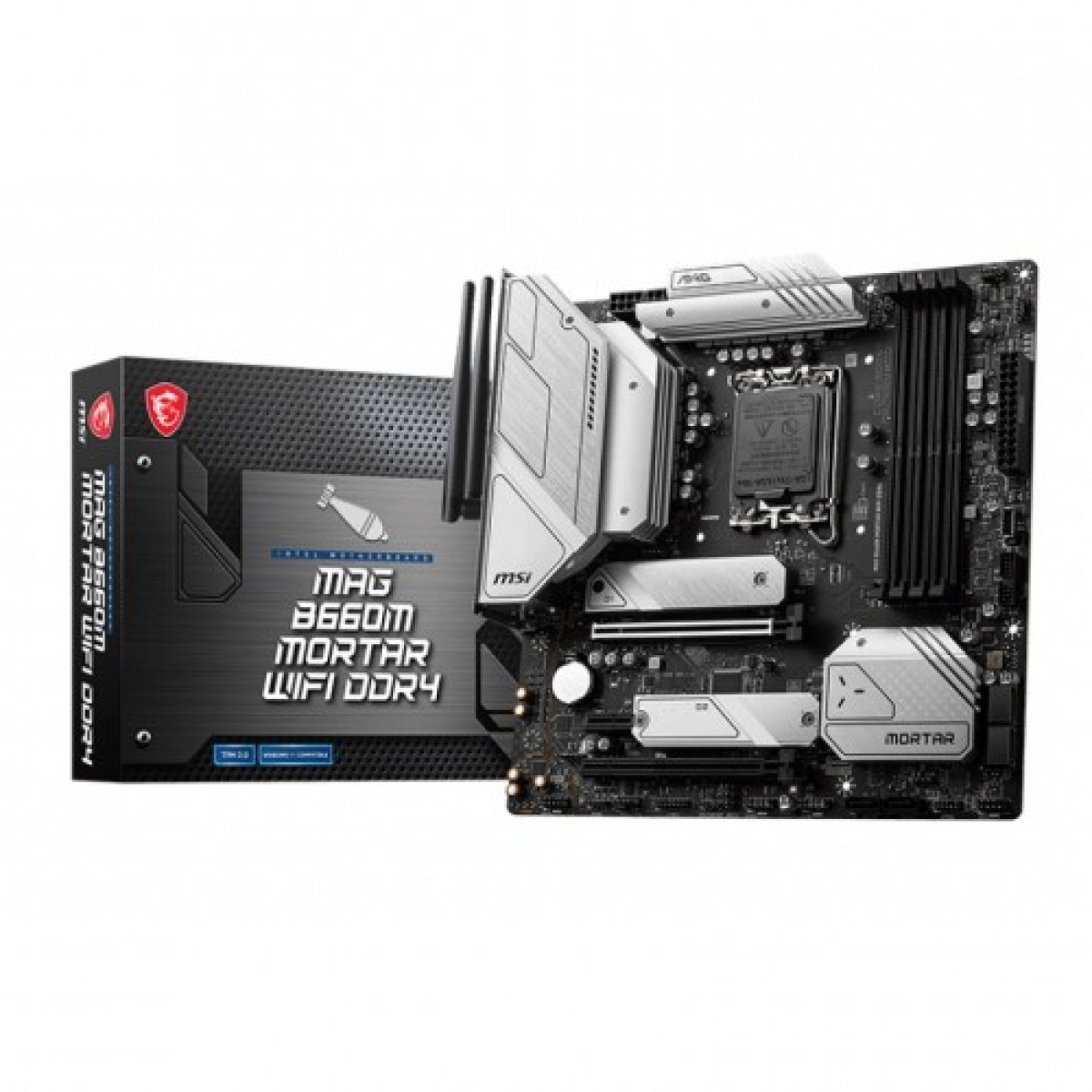

MSI MAG B660M MORTAR WIFI DDR4 12th Gen Micro-ATX Motherboard
Key highlights
- Form Factor: Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2
- Supported CPU: Supports 12th Gen Intel Core, Pentium Gold and Celeron processors Processor socket LGA1700
- Chipset: Intel B660 Chipset
- M.2 Socket: 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory
Description
Affordable MSI MAG B660M Motherboard for Gamers
Elevate Your Gaming Experience with MSI MAG B660M MORTAR WIFI DDR4
The MSI MAG B660M MORTAR WIFI DDR4 motherboard is engineered to meet the demands of gamers and professionals alike. Featuring the latest 12th Gen Intel Core processors, this micro-ATX motherboard provides an exceptional platform for building high-performance systems. The advanced cooling system ensures optimal thermal management, allowing for extended gaming sessions without overheating.
With built-in WiFi 6 capabilities, you can enjoy lag-free online gaming and seamless streaming. The motherboard supports DDR4 memory, enabling faster data transfer rates and improved performance. Whether you're a casual gamer or a dedicated streamer, the MSI MAG B660M MORTAR offers remarkable stability and speed.
This motherboard also boasts multiple USB ports, including USB 3.2 Gen 2, ensuring you can connect all your peripherals without hassle. The durable build quality and military-grade components enhance longevity, making it a reliable choice for your computer build. Upgrade your setup today and experience the difference!
Explore Advanced Features of MSI B660M Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2 |
| Supported CPU | Supports 12th Gen Intel Core, Pentium Gold and Celeron processors Processor socket LGA1700 |
| Chipset | Intel B660 Chipset |
| Expansion Slots | |
| M.2 Socket | 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory |
| Memory Specifications | |
| Slots | 4x DDR4 memory slots |
| Supported Memory | Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | DisplayPort 1.4 (BACK PANEL PORTS) |
| HDMI | HDMI 2.1 Port (BACK PANEL PORTS) |
| LAN Port (s) | 2.5G LAN Port |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| Wireless Communication module | Intel Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
