Key highlights
- Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Supported CPU: Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors Processor socket LGA1200
- Chipset: Intel Z590 Chipset
- Audio: Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
- M.2 Socket: 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slot (From Z590 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Description
Shop Intel 11th Gen ATX Motherboard at Unix Network

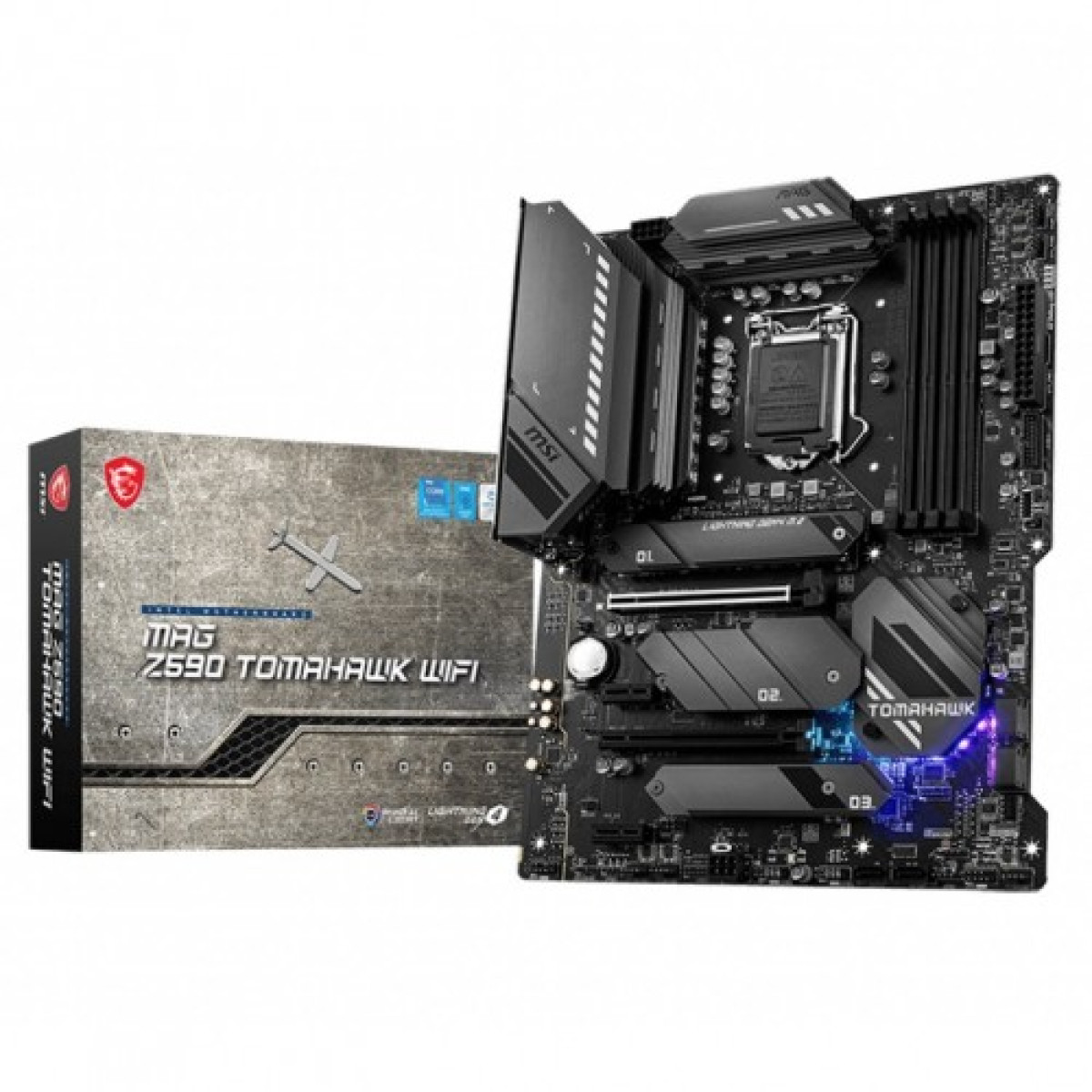

Unleash Your Gaming Potential with the MSI MAG Z590 Tomahawk Wi-Fi
If you’re looking for a high-performance motherboard that can handle the demands of Intel's 11th Gen processors, the MSI MAG Z590 Tomahawk Wi-Fi is your best choice. This ATX motherboard is designed for gamers and power users, providing exceptional performance and advanced features. With support for PCIe 4.0, lightning-fast memory speeds, and robust connectivity options, this motherboard is engineered to elevate your gaming experience.
Key Features:
- Wi-Fi 6 Technology: Enjoy faster and more reliable wireless connectivity.
- Enhanced Cooling Solutions: Keep your system cool during intense gaming sessions.
- Multi-GPU Support: Expand your graphics capabilities with ease.
- USB 3.2 Gen 2: Experience ultra-fast data transfer speeds for all your peripherals.
This motherboard also features a user-friendly BIOS interface that makes it easy to tweak settings and optimize performance. With its robust build quality and premium components, the MSI MAG Z590 Tomahawk Wi-Fi promises durability and longevity, making it a worthy investment for your gaming rig.
Upgrade Your PC with MSI MAG Z590 Motherboard Today
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Supported CPU | Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors Processor socket LGA1200 |
| Chipset | Intel Z590 Chipset |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| M.2 Socket | 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slot (From Z590 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
| PCI | 2x PCIe x16 slots 1x PCIe 3.0 x16 slot (from CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU PCI_E3 (From Z590 chipset) Support up to PCIe 3.0 x4 2x PCIe 3.0 x1 slots (From Z590 chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4x memory slots |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| LAN Port (s) | 1x Intel I225-V 2.5Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports (From Z590 chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slot (From Z590 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
| USB (s) | Intel Z590 Chipset 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) 1x USB 2.0 Type-A port on the back panel Hub-GL850G 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
| Special | |
| Special Feature | 1x Intel Wi-Fi 6E AX210 1x Intel The Wireless module is pre-installed in the M.2 (Key-E slot) Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
