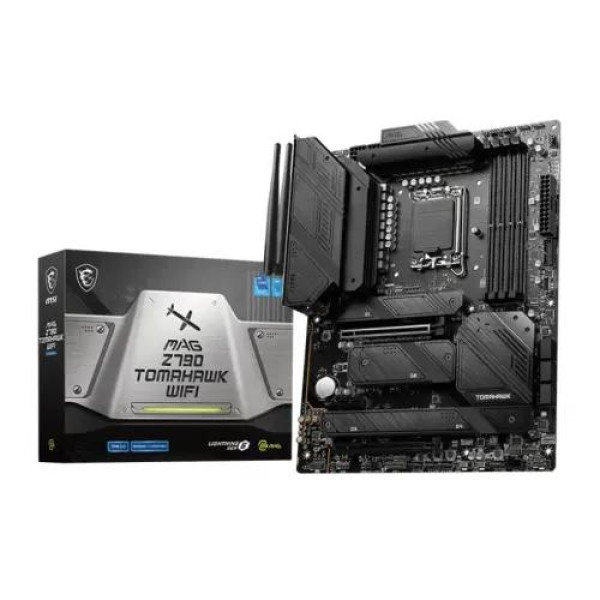

MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard
- Brand:MSI
- Product Code: MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard
- Availability:In Stock
- Updated:
৳42,899৳43,000Save ৳101
ক্যাম্পেইনের পণ্যে অন্য কোন অফার থাকলে সম্মানিত ক্রেতারা যেকোন একটি অফার উপভোগ করতে পারবেন।
Specification
| BASIC INFORMATION | |
| Form Factor | ATX 243.84mmx304.8mm |
|---|---|
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1700 |
| Chipset | Intel Z690 Chipset |
| Slots | 4 x DIMM |
| Audio | 1x Front Audio (JAUD) |
| Expansion Slots | |
| M.2 Socket | 4x M.2 slots |
| PCI | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* |
| Memory Specifications | |
| Maximum Memory | 192GB |
| Supported Memory | Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort 1.4 |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| LAN Port (s) | Intel 2.5Gbps LAN |
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard
The MSI MAG Z790 TOMAHAWK WIFI is a powerful and reliable motherboard designed to meet the needs of gamers, content creators, and performance enthusiasts. Compatible with the latest Intel processors, this motherboard is engineered to offer peak performance, boasting advanced features like Wi-Fi 6E connectivity, DDR5 support, and PCIe 5.0 capabilities. Whether you’re building a high-end gaming rig or a workstation for demanding tasks, the Z790 TOMAHAWK WIFI provides a stable foundation and the flexibility needed to future-proof your system.
Key Features:
Processor Support: Compatible with Intel's 12th and 13th Generation processors, maximizing CPU power and efficiency.
Memory: Supports DDR5 RAM with speeds up to 7200 MHz, providing lightning-fast data access for multitasking and gaming.
Wi-Fi 6E: Offers the latest Wi-Fi connectivity for seamless online experiences, reduced latency, and faster data transfers.
PCIe 5.0: Future-ready with PCIe 5.0 slots for next-gen graphics cards and storage solutions, ensuring your system is built to last.
Cooling and Overclocking: Equipped with extensive cooling options and AI-powered overclocking features for consistent performance under heavy loads.
People Also Ask (PAA)
Is the MSI MAG Z790 TOMAHAWK WIFI compatible with Intel’s 13th Generation processors?
Yes, the Z790 TOMAHAWK WIFI supports Intel’s 13th Generation processors (Raptor Lake), as well as 12th Gen (Alder Lake) CPUs. This compatibility ensures you can take advantage of the latest Intel performance upgrades without needing to change your motherboard.
Does the MSI MAG Z790 TOMAHAWK WIFI support DDR5 RAM?
Absolutely. This motherboard is built for DDR5 memory, with support for up to 128GB at speeds reaching 7200 MHz (OC). The DDR5 support enhances multitasking, data transfer speeds, and overall system responsiveness, making it ideal for high-performance applications and gaming.
What are the key differences between the MSI MAG Z790 TOMAHAWK WIFI and its competitors?
The Z790 TOMAHAWK WIFI stands out due to its robust power delivery, versatile connectivity options, and advanced cooling design. While other boards may lack Wi-Fi 6E or limit PCIe options, this model delivers a comprehensive feature set for a competitive price, balancing performance with functionality.
Can I use the MSI MAG Z790 TOMAHAWK WIFI for overclocking?
Yes, the MSI MAG Z790 TOMAHAWK WIFI is optimized for overclocking, with an advanced VRM (Voltage Regulator Module) design, AI-powered overclocking, and comprehensive cooling. It’s suitable for enthusiasts looking to push CPU and memory performance, thanks to its robust construction and heat management.
Use Cases and Benefits
1. Gamers: Gamers will appreciate the PCIe 5.0 slots, Wi-Fi 6E, and DDR5 support, which all contribute to reduced latency, faster load times, and better overall gameplay experiences. High memory speeds and a reliable power supply ensure smooth performance during intense gaming sessions.
2. Content Creators: With support for large amounts of fast DDR5 RAM and compatibility with the latest Intel CPUs, this motherboard is excellent for video editing, 3D rendering, and other demanding tasks. The extensive connectivity options allow creators to connect multiple high-speed devices, reducing bottlenecks and improving productivity.
3. Professionals and Enthusiasts: For those building a future-proof workstation, the Z790 TOMAHAWK WIFI offers both stability and versatility. The robust power delivery, ample storage options, and overclocking capabilities provide the reliability and power needed for computational tasks, multitasking, and software development.
Competitive Advantages
Compared to similar motherboards in its range, the MSI MAG Z790 TOMAHAWK WIFI offers a comprehensive suite of features without compromising on price. Its support for PCIe 5.0, DDR5, and Wi-Fi 6E ensures you’re getting the latest technology, while other boards may still offer DDR4 and PCIe 4.0, limiting future compatibility. Additionally, MSI’s AI-powered overclocking and optimized cooling solutions set it apart from competitors, making it a strong choice for users focused on maximizing their system’s performance.
The MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard is a high-performance motherboard designed for gaming enthusiasts and power users. Featuring support for the latest Intel processors, this motherboard is packed with features to enhance your gaming experience.
Key specifications include:
- ATX form factor
- Intel Z790 chipset
- Supports 12th Gen Intel Core processors
- Four DDR5 memory slots, supporting up to 128GB
- Two PCIe 5.0 x16 slots and two PCIe 4.0 x1 slots
- Integrated Intel WiFi 6E and Bluetooth 5.2 connectivity
- Six SATA 6Gb/s ports and two M.2 slots for storage
- USB 3.2 Gen 2 and USB Type-C ports for high-speed data transfer
- RGB lighting and Mystic Light support for customisable aesthetics
With its robust design and feature-packed specifications, the MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard is the perfect choice for gamers and enthusiasts looking to build a powerful and reliable system.
