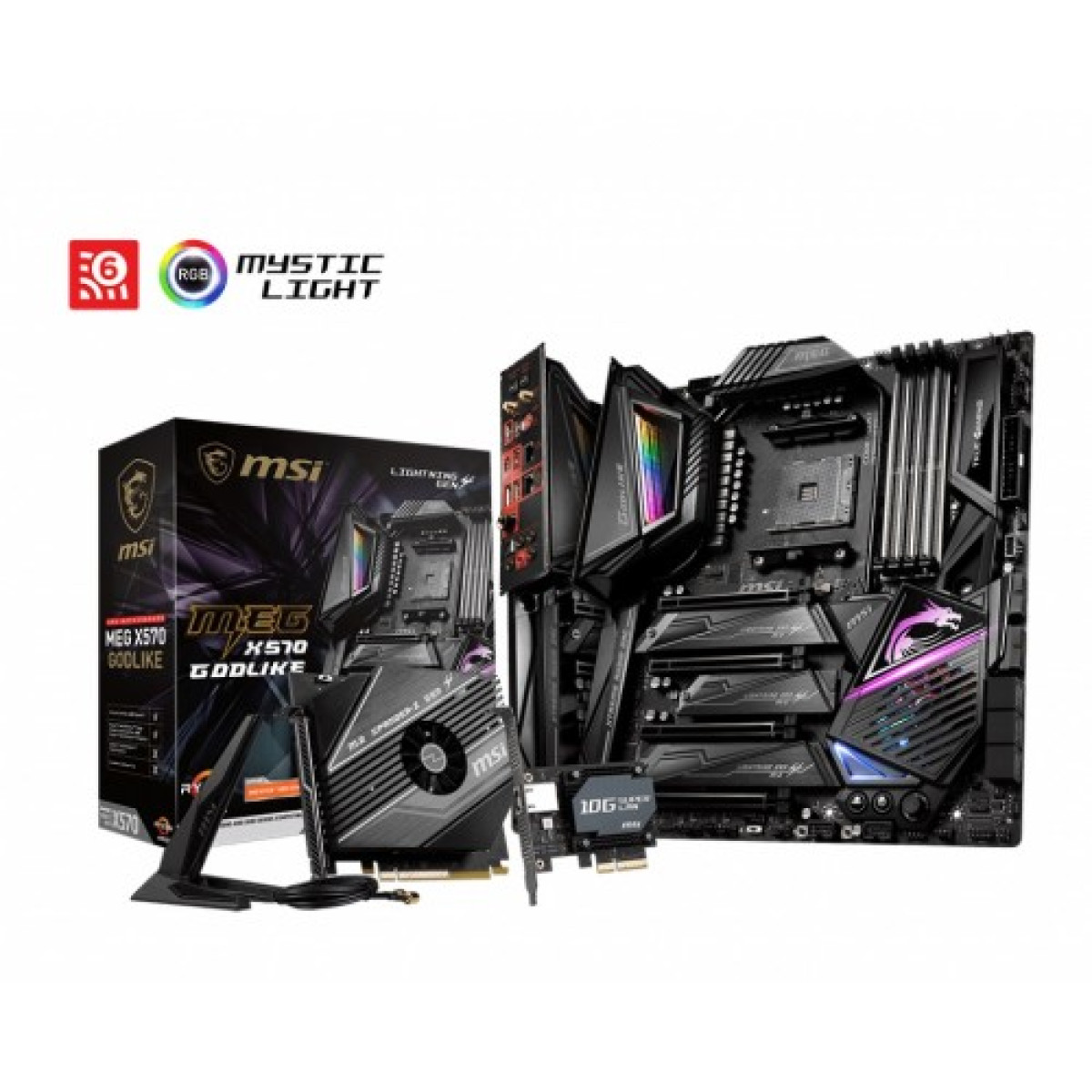

MSI MEG X570 GODLIKE AM4 AMD E-ATX Motherboard
- Brand:MSI
- Product Code: M22092936
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | E-ATX Form Factor |
|---|---|
| Supported CPU | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD X570 Chipset |
| Audio | 2x Realtek ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output ESS E9018 Codec Supports 6.3mm Gold-plated stereo headphone out |
| BIOS | Flash BIOS Button |
| Expansion Slots | |
| M.2 Socket | 3x M.2 slots (Key M): -M2_1 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices -M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280 storage devices -M2_3 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/ 2260/ 2280/ 22110 storage devices |
| PCI | 3x PCIe 4.0/3.0 x16 slot (PCI_E1~3) 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0/x0, x8/x0/x8, x8/x4/x4 mode 2nd Gen AMD Ryzen support PCIe 3.0x16/x0/x0, x8/x0/x8, x8/x4/x4 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon™ Graphics support PCIe 3.0 x8/x0/x0 mode 1x PCIe 4.0/3.0 x16 slot (PCI_E4, supports x4 mode) |
| Graphics Specifications | |
| Max Shared Memory | 128GB |
| Graphics | Supports 2-Way NVIDIA SLI Technology Supports 4-Way AMD CrossFire Technology |
| Memory Specifications | |
| Maximum Size | support up to 128GB |
| Supported Memory | Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Type | Supports DDR4 Memory, up to 4800+(OC) MHz |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 7.1-Channel High Definition Audio |
| LAN Port (s) | 1x Killer E2600 Gigabit LAN Controller 1x Killer E3000 2.5 Gbps LAN Controller |
| Supported Storage | AMD X570 Chipset: 4x SATA 6Gb/s ports (SATA1-SATA4) 3x M.2 slots (Key M)1 M2_1 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280 storage devices M2_3 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/ 2260/ 2280/ 22110 storage devices ASMedia ASM1061 2x SATA 6Gb/s ports (SATA5, SATA6) |
| USB (s) | AMD X570 Chipset: 3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connectors) 4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors 4x USB 2.0 (High-speed USB) ports through the internal USB connectors AMD Processor: 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Type-A and Type-C port on the back panel 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen2 Type-C port 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump connector 7x 4-pin system fan connectors 1x 3-pin Water Flow connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connectors 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector |
| Special | |
| Special Feature | The Wireless module is pre-install in the M2_4 (Key-E) slot Supports Wi-Fi 802.11 a/b/g/n/ac/ax, dual band (2.4GHz, 5GHz) up to 2.4 Gbps speed Supports Bluetooth 5 Support for Windows 10 64-bit Supports RAID 0, RAID 1 and RAID 10 |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
Description
Unleash Your Gaming Potential with the MSI MEG X570 GODLIKE
The MSI MEG X570 GODLIKE AM4 AMD E-ATX Motherboard is designed for gamers and PC enthusiasts who demand nothing but the best in performance and aesthetics. This high-end motherboard features the latest AMD X570 chipset, ensuring compatibility with the latest Ryzen processors for exceptional processing power. With its advanced thermal design, including heat pipes and heatsinks, the motherboard keeps your system cool during intense gaming sessions, allowing for better performance and longevity.
Equipped with multiple M.2 slots for ultra-fast SSD storage and DDR4 Boost technology, it supports high-speed RAM for superior multitasking capabilities. The GODLIKE also comes with customizable Mystic Light RGB lighting, giving you the ability to personalize your build with stunning visuals. Its enhanced audio capacitors and dedicated DAC provide immersive audio experiences that elevate your gaming and media consumption.
Furthermore, the motherboard includes advanced networking capabilities with Wi-Fi 6 and 10G Super LAN, ensuring you stay connected with high-speed internet. With a robust design that supports extensive overclocking features, the MSI MEG X570 GODLIKE is the ultimate choice for serious gamers and creators alike.
