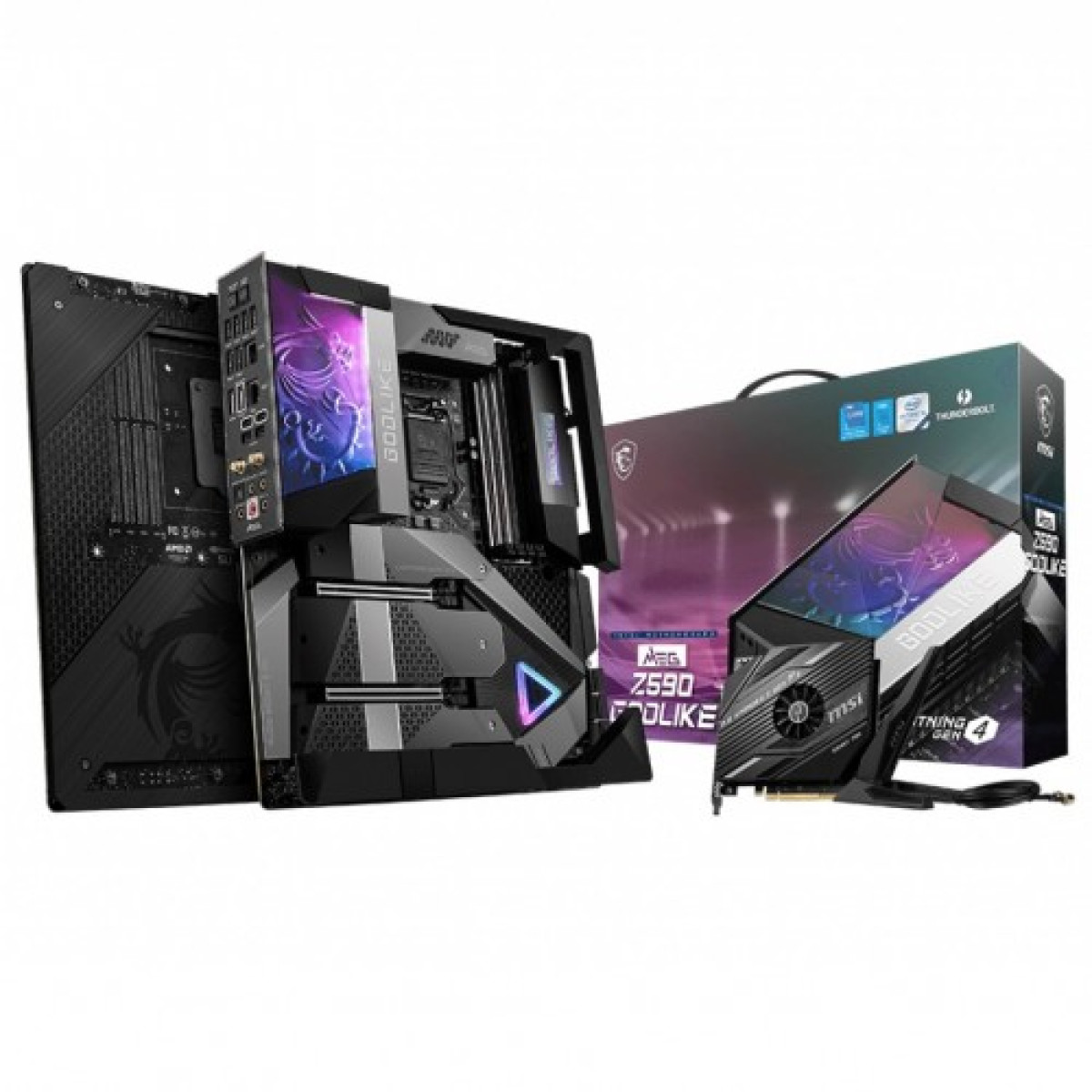

MSI MEG Z590 GODLIKE Intel 11th Gen E-ATX Gaming Motherboard
Call for price
01715143685 / 01711131207
Key highlights
- Form Factor: 12 in. x 10.9 in. (30.5 cm x 27.7 cm) E-ATX Form Factor
- Supported CPU: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors Processor socket LGA1200
- Chipset: Intel Z590 Chipset
- Audio: Realtek ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output
- M.2 Socket: 4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3 & M2_4 slots (from Z590 chipset) M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready
Description
Unleash Gaming Performance with Intel 11th Gen Support
Unleash Your Gaming Potential with the MSI MEG Z590 GODLIKE
The MSI MEG Z590 GODLIKE motherboard is engineered for gamers and enthusiasts who demand the best performance from their systems. Built on the E-ATX form factor, this powerhouse supports Intel's 11th Gen processors, providing unparalleled speed and efficiency. Experience lightning-fast data transfer with PCIe 4.0 technology, ensuring your graphics cards and NVMe SSDs operate at peak performance. The advanced thermal solutions and premium components ensure stability even during intense gaming sessions.
With support for up to 128GB of DDR4 RAM, the MEG Z590 GODLIKE allows for smooth multitasking and seamless gameplay. Its customizable Mystic Light RGB lighting adds a personal touch to your gaming rig, making it visually stunning as well. The motherboard's robust audio capabilities, powered by the ESS DAC, deliver crystal-clear sound, enhancing your gaming experience.
Whether you’re a hardcore gamer or a content creator, the MSI MEG Z590 GODLIKE is designed to meet your needs. With extensive connectivity options, including USB 3.2 Gen 2 and Thunderbolt 4, you can easily connect all your peripherals and accessories. Elevate your gaming setup with this exceptional motherboard that combines aesthetics, performance, and reliability.
Explore Features of MSI MEG Z590 GODLIKE Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | 12 in. x 10.9 in. (30.5 cm x 27.7 cm) E-ATX Form Factor |
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors Processor socket LGA1200 |
| Chipset | Intel Z590 Chipset |
| Audio | Realtek ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| M.2 Socket | 4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3 & M2_4 slots (from Z590 chipset) M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready |
| PCI | 3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, x8+(x4+x4)/x0/x4 PCI_E1 & PCI_E2 slots (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU PCI_E3 slot (From Z590 chipset) Supports up to PCIe 3.0 |
| Graphics Specifications | |
| Graphics | Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4x memory slots |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| LAN Port (s) | 1x Aquantia AQC107 10Gbps LAN controller 1x Intel I225-V 2.5Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3 & M2_4 slots (from Z590 chipset) M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
| USB (s) | Intel® JHL8540 Thunderbolt™ 4 Controller 2x Thunderbolt™ 4 (Type-C) ports on the back panel Support up to 40 Gbps transfer rate with Thunderbolt devices Support up to 20 Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A , 15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display Intel Z590 Chipset: 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel and 1 Type-C internal connector) 2x USB 2.0 ports are available through the internal USB 2.0 connector Hub GL850G: 2x USB 2.0 ports are available through the internal USB 2.0 connector Asmedia 1074 Chipset: 10x USB 3.2 Gen 1 5Gbps ports (6 Type-A ports on the back panel, 4 ports are available through the internal USB 3.2 Gen 1 connectors) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 8x 4-pin system fan connectors 1x 3-pin Water Flow connector 1x Front panel audio connector 2x System panel connectors 1x Chassis intrusion connector 2x 2-pin Thermal sensors connectors 1x TPM module connector 1x Tuning controller connector |
| Special | |
| Special Feature | Intel WiFi-6E AX210: The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 , FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
