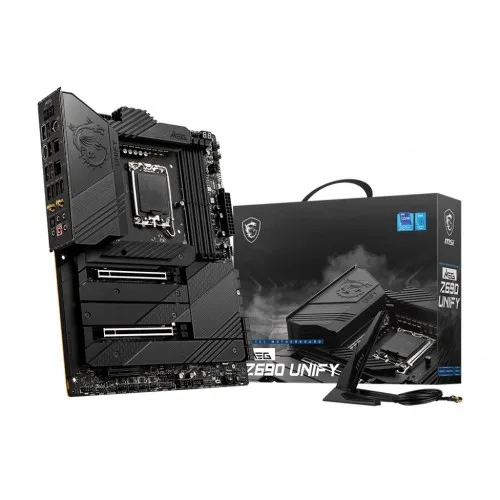

MSI MEG Z690 UNIFY DDR5 12th Gen ATX Motherboard
৳48,900
Key highlights
- Form Factor: E-ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 27.7 cm)
- Graphics: 1x Type-C Display port, supporting a maximum resolution of 4K 60Hz
- Raid controller: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
- Supported CPU: Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Chipset: Processor socket LGA1700
Description
Top Features of MSI MEG Z690 UNIFY DDR5 Motherboard
MSI MEG Z690 UNIFY DDR5 12th Gen ATX Motherboard: Unleashing the Power of Performance
The MSI MEG Z690 UNIFY is an exceptional ATX motherboard designed for enthusiasts and gamers who demand top-notch performance and cutting-edge technology. Featuring support for Intel's 12th generation processors, this motherboard is engineered to deliver unmatched power, speed, and stability. With a robust design and advanced features, it stands out in the crowded motherboard market, making it the perfect choice for those looking to build a high-performance PC.
Exceptional Performance: Equipped with the latest DDR5 memory technology, the MEG Z690 UNIFY supports memory speeds up to 6400 MHz and beyond, ensuring lightning-fast data transfer rates. This allows users to experience seamless multitasking and improved gaming performance, giving them a competitive edge in fast-paced environments.
Comprehensive Connectivity: The motherboard features multiple PCIe 5.0 slots, offering enhanced bandwidth for high-speed graphics cards and expansion cards. With support for the latest NVMe SSDs, users can take advantage of ultra-fast storage solutions, significantly reducing load times and enhancing overall system responsiveness.
Robust Cooling Solutions: The MEG Z690 UNIFY is designed with advanced thermal management in mind. It includes a powerful heatsink design that efficiently dissipates heat, ensuring that your system remains cool even under heavy loads. The motherboard also supports customizable fan controls, allowing users to optimize airflow according to their specific needs.
Enhanced Gaming Experience: With features like MSI's Mystic Light technology, users can personalize their system with customizable RGB lighting, creating an immersive gaming atmosphere. The motherboard also includes optimized audio components, delivering crystal-clear sound quality that enhances the overall gaming experience.
Why Choose MSI MEG Z690 UNIFY: This motherboard is not just about high performance; it's also about reliability and durability. MSI has a reputation for building high-quality components, and the MEG Z690 UNIFY is no exception. Its military-grade materials and rigorous testing processes ensure that it can withstand the rigors of intense gaming sessions. For users in Bangladesh, this motherboard represents a valuable investment, as it combines cutting-edge technology with local availability, making it easier to find support and service when needed.
Best Deals on MSI MEG Z690 UNIFY for Gamers in Jashore
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | E-ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 27.7 cm) |
| Graphics | 1x Type-C Display port, supporting a maximum resolution of 4K 60Hz |
| Raid controller | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Chipset | Processor socket LGA1700 |
| Slots | 4x DDR5 memory slots, supporting up to 128GB 1 |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
| BIOS | Flash BIOS Button |
| Type | DDR5 Supports 1R 4800 MHz (by JEDEC & POR) |
| Expansion Slots | |
| M.2 Socket | 5x M.2 slots (M-Key) |
| PCI | 3x PCIe x16 slots Supports x16/x0/x4, x8/x8/x4 PCI_E1 & PCI_E2 slots (From CPU) PCI_E1 supports up to PCIe 5.0 x16 PCI_E2 supports up to PCIe 5.0 x8 PCI_E3 1 (From Z690 chipset) Supports up to PCIe 4.0 x4 |
| Memory Specifications | |
| Maximum Memory | supporting up to 128GB |
| Supported Memory | Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 5600+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 5x M.2 slots (M-Key) 1x USB 3.2 Gen 2x2 20Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connector (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connector 1x Water flow connector 1x V-check point 1x Tuning controller connector 1x Debug port connector 1x TBT connector (Supports RTD3) |
| LAN Port (s) | 2x Intel I225-V 2.5Gbps LAN controllers |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | Intel Z690 Chipset 2x USB 3.2 Gen2x2 20Gbps ports ( 1 Type-C port on the back panel, 1 Type-C internal connector) 3x USB 3.2 Gen2 10Gbps Type-A ports on the back panel 2x USB 2.0 Type-A port on the back panel Hub GL3590 4x USB 3.2 Gen2 10Gbps ports on the back panel Hub ASM1074 4x USB 3.2 Gen1 5Gbps ports available through internal USB connectors Hub GL850G 4x USB 2.0 ports available through internal USB connectors |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
