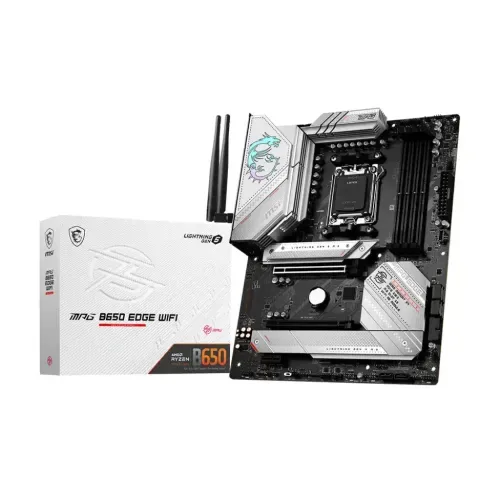

MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard
- Brand:MSI
- Product Code: MPG B650 EDGE WIFI
- Availability:In Stock
- Updated:
ক্যাম্পেইনের পণ্যে অন্য কোন অফার থাকলে সম্মানিত ক্রেতারা যেকোন একটি অফার উপভোগ করতে পারবেন।
Specification
| BASIC INFORMATION | |
| Form Factor | ATX 243.84mmx304.8mm |
|---|---|
| Graphics | 1x HDMI 1x DisplayPort Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz Support DP 1.4 HBR3, maximum resolution of 8K 60Hz |
| Supported CPU | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Type | DDR5 |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset) |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 DIMMs |
| Supported Memory | Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz • 2DPC 1R Max. speed up to 6400+ MHz • 2DPC 2R Max. speed up to 4000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LAN Port (s) | Realtek RTL8125BG 2.5Gbps LAN |
| Supported Storage | 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
Description
Unlock Your Gaming Potential with the MSI MPG B650 EDGE WIFI
The MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard is designed for gamers and PC enthusiasts in Bangladesh seeking top-tier performance and cutting-edge technology. This motherboard supports the latest AMD Ryzen processors, ensuring you have the power to tackle even the most demanding tasks. With its advanced DDR5 memory support, you can experience lightning-fast data transfer rates, enhancing your gaming and productivity experience.
Connectivity is a breeze with the integrated Wi-Fi 6 and Bluetooth capabilities, allowing you to connect your devices seamlessly without the clutter of cables. The motherboard's robust thermal design includes high-quality heatsinks that keep your system cool during intense gaming sessions. Additionally, the customizable RGB lighting enhances the aesthetic appeal of your build.
Furthermore, MSI's exclusive features like the Mystic Light Sync and Game Boost technology provide an extra edge in performance and visuals. With the MPG B650 EDGE WIFI, you're not just building a PC; you're creating a high-performance machine that stands out in any setup.
