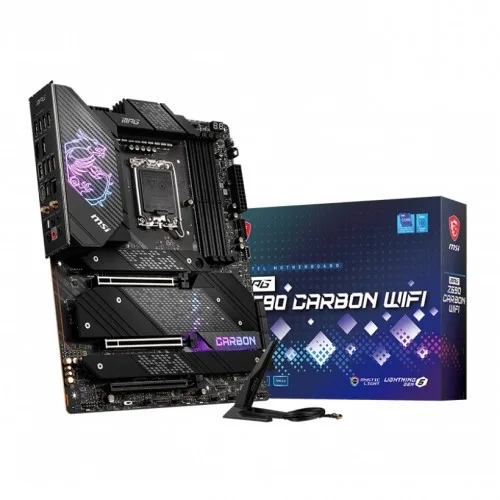

MSI MPG Z690 CARBON WIFI 12th Gen ATX Motherboard
Key highlights
- Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
- Supported CPU: Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors Processor socket LGA1700
- Chipset: Intel Z690 Chipset
- Slots: 4 x DIMM
- Audio: 7.1-Channel High Definition Audio Supports S/PDIF output
Description
Experience High Performance with MSI MPG Z690 Motherboard
MSI MPG Z690 CARBON WIFI 12th Gen ATX Motherboard Overview
The MSI MPG Z690 CARBON WIFI motherboard is designed for high-performance gaming and content creation, offering an ideal foundation for your 12th Gen Intel Core processor. With its robust features and cutting-edge technology, this motherboard is perfect for gamers, enthusiasts, and professionals looking to build a powerful and reliable system. The MPG Z690 CARBON WIFI stands out with its sleek aesthetics, advanced connectivity options, and exceptional performance metrics, ensuring that every aspect of your computing experience is enhanced.
Benefits of the MSI MPG Z690 CARBON WIFI
One of the key benefits of this motherboard is its support for the latest PCIe 5.0 technology, allowing for faster data transfer rates that are crucial for high-end graphics cards and storage devices. With its Wi-Fi 6E connectivity, users can enjoy stable and fast wireless internet, ensuring seamless online gaming and streaming experiences. Moreover, the motherboard features an advanced thermal solution, including extended heat sinks and multiple fan headers, which keep your system cool even during intensive workloads.
Use Cases
This motherboard is perfect for various use cases, whether you are building a high-end gaming rig, a workstation for content creation, or a general-purpose PC. Its support for DDR5 memory means you can take advantage of the latest in memory technology, ensuring faster load times and improved multitasking capabilities. Additionally, the MPG Z690 CARBON WIFI includes multiple M.2 slots for NVMe SSDs, allowing users to maximize their storage performance and capacity.
Why Choose MSI MPG Z690 CARBON WIFI?
Purchasing the MSI MPG Z690 CARBON WIFI motherboard means investing in a product that combines cutting-edge technology, exceptional build quality, and a user-friendly experience. With a comprehensive warranty and support from MSI, customers can trust that their investment is protected. For users in Bangladesh, this motherboard is readily available at Unix Network, ensuring that you have access to the best technology without the hassle of international shipping. Choose the MSI MPG Z690 CARBON WIFI for a powerful, reliable, and future-proof motherboard that meets all your computing needs.
Best Gaming Motherboard for 12th Gen Processors in Bangladesh
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
| Supported CPU | Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors Processor socket LGA1700 |
| Chipset | Intel Z690 Chipset |
| Slots | 4 x DIMM |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
| Type | DDR5 |
| Expansion Slots | |
| M.2 Socket | 5x M.2 slots (Key M) |
| PCI | 3x PCIe x16 slots PCI_E1 & PCI_E2 slots (From CPU) Support PCIe 5.0 Support x16/ x0, x8/ x8 PCI_E3 slot (From Z690 Chipset) Supports PCIe 3.0 x4 |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 5600+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort 1.4 |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 5x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
| LAN Port (s) | 1x Intel I225V 2.5Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset) 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061) 5x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_4 slot (From Z690 Chipset) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_5 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_2~5 support Intel Optane Memory Supports Intel Smart Response Technology for Intel Core processors |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| Wireless Communication module | Intel Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
