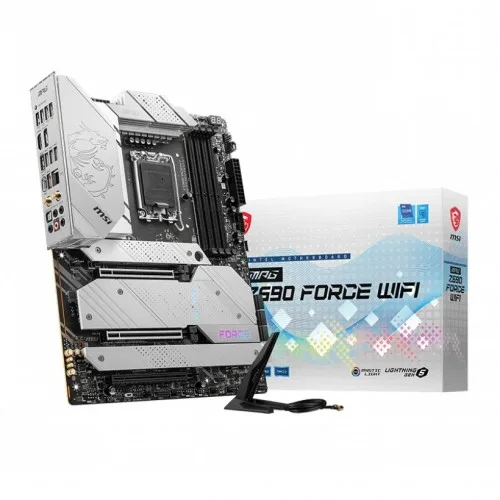

MSI MPG Z690 FORCE WIFI 12th Gen ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
- Supported CPU: Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors Processor socket LGA1700
- Chipset: Intel Z690 Chipset
- Slots: 4 x DIMM
Description
Upgrade Your PC with MSI MPG Z690 Motherboard Today
MSI MPG Z690 FORCE WIFI 12th Gen ATX Motherboard Overview
The MSI MPG Z690 FORCE WIFI is a cutting-edge ATX motherboard designed for performance enthusiasts, gamers, and content creators who demand the best from their systems. Built on the robust Intel Z690 chipset, this motherboard supports Intel's 12th generation Alder Lake processors, offering a perfect blend of power and efficiency. With its advanced features and premium build quality, the MPG Z690 FORCE WIFI is engineered to provide unparalleled performance, ensuring a seamless computing experience.
Key Benefits of MSI MPG Z690 FORCE WIFI
The MPG Z690 FORCE WIFI motherboard comes packed with features that are tailored for today's demanding applications. It supports DDR5 memory, allowing for faster data transfer speeds and improved bandwidth. The motherboard is equipped with MSI's exclusive Dragon Center software, which provides users with real-time monitoring and customization options to fine-tune their system's performance. Additionally, with Wi-Fi 6E support, users will enjoy faster wireless connectivity with reduced latency.
Use Cases
This motherboard is ideal for gamers looking to build a high-performance gaming rig that can handle the latest AAA titles, as well as content creators who require powerful processing capabilities for video editing and graphic design. Its extensive connectivity options, including PCIe 5.0 slots and multiple M.2 slots for SSDs, ensure that users can expand and upgrade their systems as needed.
Why Customers Should Buy This Product
The MSI MPG Z690 FORCE WIFI stands out in the crowded motherboard market due to its superior build quality, comprehensive features, and user-friendly interface. With its competitive pricing, especially in the Bangladesh market, this motherboard provides excellent value for money. Customers can expect longevity and reliability, making it a wise investment for both current needs and future upgrades.
Explore Top Features of MSI Z690 FORCE WIFI for Enthusiasts
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
| Supported CPU | Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors Processor socket LGA1700 |
| Chipset | Intel Z690 Chipset |
| Slots | 4 x DIMM |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
| Type | DDR5 |
| Expansion Slots | |
| M.2 Socket | 5x M.2 slots (Key M) |
| PCI | 3x PCIe x16 slots PCI_E1 & PCI_E2 slots (From CPU) Support PCIe 5.0 Support x16/ x0, x8/ x8 PCI_E3 slot (From Z690 Chipset) Supports PCIe 3.0 x4 |
| Memory Specifications | |
| Supported Memory | Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 5600+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort 1.4 |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 5x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
| LAN Port (s) | 1x Intel I225V 2.5Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset) 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061) 5x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_4 slot (From Z690 Chipset) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_5 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_2~5 support Intel Optane Memory Supports Intel Smart Response Technology for Intel Core processors |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | Intel Z690 Chipset 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on the back panel, 1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4 USB 2.0 ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
| Wireless Communication module | Intel Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
