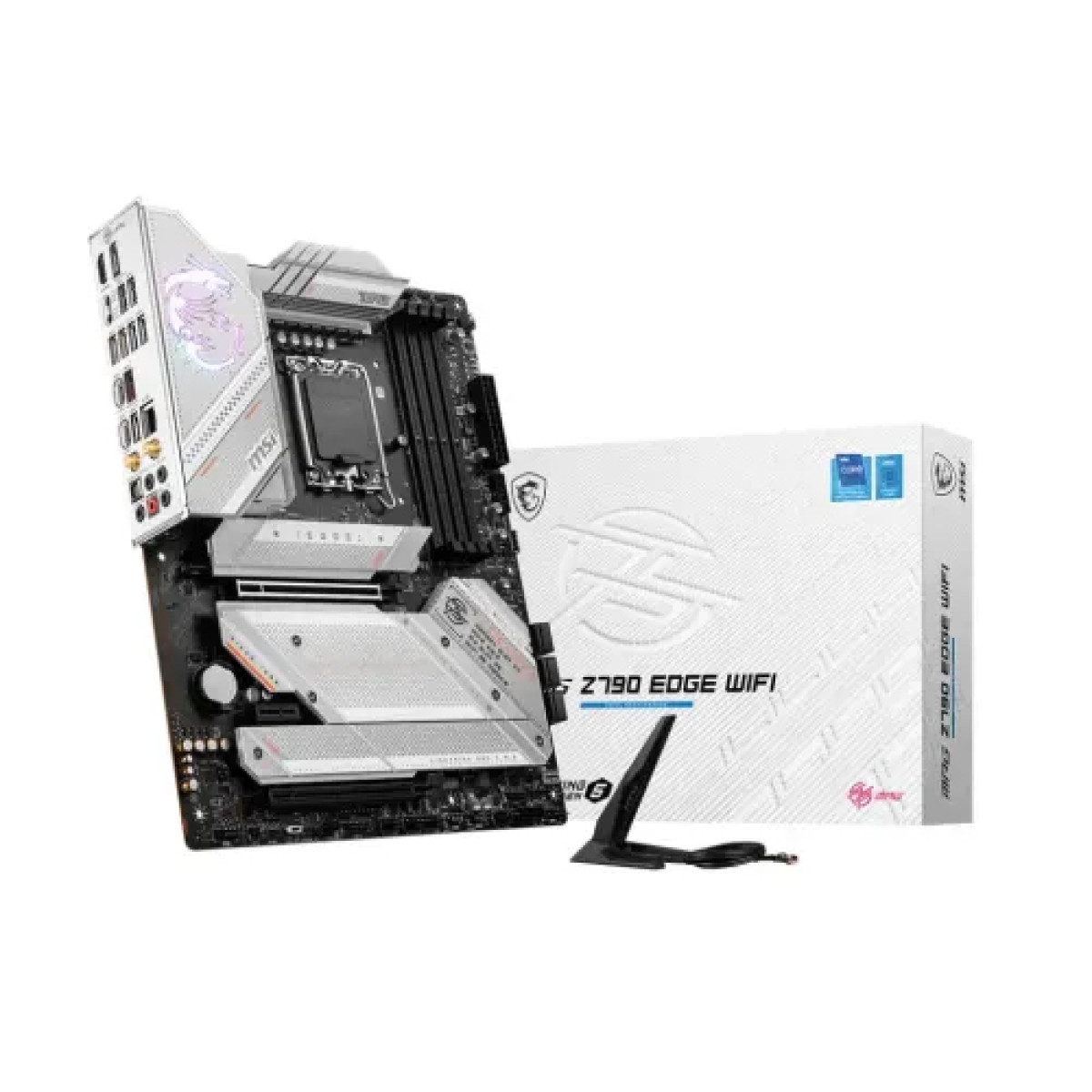

MSI MPG Z790 EDGE WIFI 13th and 12th Gen ATX Motherboard
Key highlights
- Form Factor: ATX 243.84mmx304.8mm
- Graphics: 1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz
- SpecialFeatures: 4x EZ Debug LED 1x EZ LED Control switch
- Supported CPU: Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
- Chipset: INTEL Z790
Description
High-Performance ATX Motherboard for Gamers and Creators
Elevate Your Gaming Experience with MSI MPG Z790 EDGE WIFI
The MSI MPG Z790 EDGE WIFI motherboard is engineered for gamers and content creators looking for top-tier performance. This ATX motherboard supports both 13th and 12th Gen Intel Core processors, ensuring that you have the latest technology at your fingertips. With cutting-edge features such as Wi-Fi 6E connectivity, you can enjoy lag-free online gaming and seamless streaming.
Unmatched Performance: The motherboard's advanced thermal design and robust power delivery system ensure stable performance during intense gaming sessions. The Mystic Light RGB feature allows for personalized customization, enhancing your setup's aesthetics.
Easy Installation: With an intuitive layout and user-friendly BIOS, setting up your system is a breeze, even for beginners. Plus, the extensive compatibility with various components ensures that you have a wide range of options for upgrades.
Investing in the MSI MPG Z790 EDGE WIFI motherboard means investing in future-proof technology that caters to all your gaming and productivity needs.
Explore the Features of MSI MPG Z790 EDGE WIFI Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX 243.84mmx304.8mm |
| Graphics | 1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz |
| SpecialFeatures | 4x EZ Debug LED 1x EZ LED Control switch |
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL Z790 |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Type | DDR5 |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 x DIMM |
| Supported Memory | 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| LAN Port (s) | Intel 2.5Gbps LAN |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
