Key highlights
- Form Factor: m-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Supported CPU: Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
- Chipset: AMD B550 Chipset
- Slots: 4 x DIMM Slots
- Audio: Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Description
High-Performance Micro ATX Motherboard for Gamers

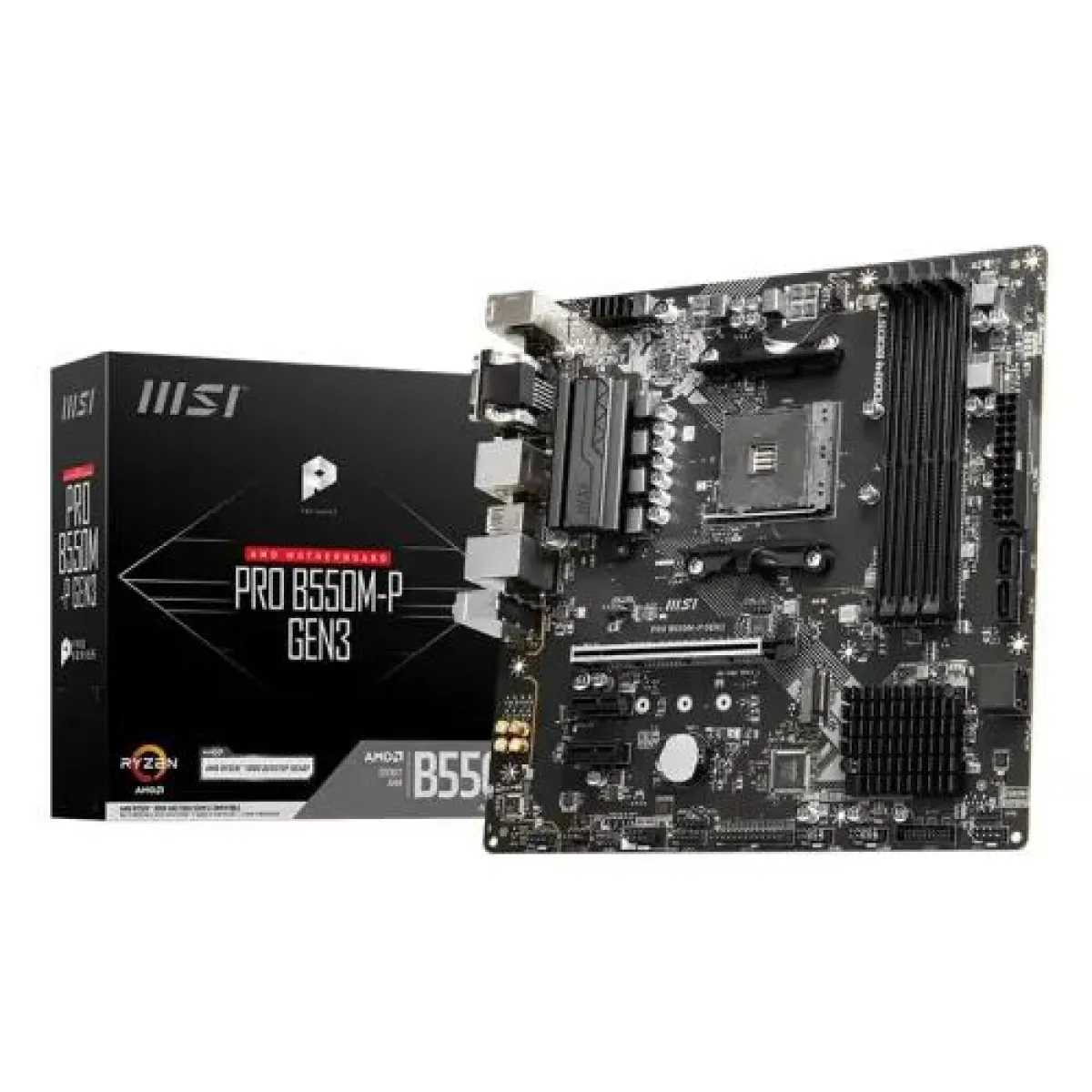

Introducing the MSI PRO B550M-P GEN3 AMD AM4 Micro ATX Motherboard
The MSI PRO B550M-P GEN3 is an exceptional motherboard that caters to both casual users and professional builders, designed specifically for the AMD AM4 socket. Built on the B550 chipset, this micro ATX motherboard showcases MSI’s commitment to quality and performance. It combines modern features with a robust design, making it an excellent choice for users looking to build a powerful yet efficient system.
Overview: The motherboard supports AMD Ryzen processors, offering users the ability to harness cutting-edge technology for gaming and productivity. With a sleek black PCB and high-quality capacitors, the MSI PRO B550M-P GEN3 not only delivers on performance but also brings an aesthetic appeal to your setup.
Benefits: One of the standout features of this motherboard is its support for PCIe 4.0, enabling faster data transfer rates and improved graphics performance. Additionally, it provides multiple USB ports, including USB 3.2 Gen 1, ensuring that you can connect all your peripherals without hassle. The motherboard also includes MSI’s exclusive Click BIOS 5, allowing users to easily manage system settings for optimal performance.
Use Cases: Whether you’re a gamer looking to build a high-performance rig, a content creator needing reliable processing power, or a business professional requiring a stable workstation, the MSI PRO B550M-P GEN3 excels in various environments. Its stability and compatibility with a wide range of components make it suitable for diverse applications.
Why Buy This Product: Choosing the MSI PRO B550M-P GEN3 means investing in a product that stands out in the competitive motherboard market. With its combination of performance, build quality, and user-friendly features, it provides excellent value for your money. Additionally, for customers in Bangladesh, the availability of local support and parts makes maintenance and upgrades straightforward, ensuring a long-lasting system.
Affordable MSI PRO B550M-P for Your Next PC Build
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | m-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors |
| Chipset | AMD B550 Chipset |
| Slots | 4 x DIMM Slots |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| BIOS | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.1, SMBIOS 2.8 Multi-language |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot (Key M) M2_1 slot (From CPU) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| PCI | 1x PCIe 3.0 x16 slot (From CPU) 2x PCIe 3.0 x1 slots (From AMD B550 chipset) |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Graphics | 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz |
| Memory Specifications | |
| Maximum Memory | up to 128GB |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3733 MHz 2DPC 1R max speed 3866 MHz 2DPC 2R max speed 3466 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1x DVI-D port |
| HDMI | 1x HDMI 1.4 port |
| Internal I/O Ports | FAN CONNECTORS: 1x 4-pin CPU fan connector 2x 4-pin system fan connectors SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Parallel port connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 1x 4-pin RGB LED connector 4x EZ Debug LED |
| LAN Port (s) | 1x Realtek RTL8111H 1Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports (From AMD B550 Chipset) Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | 1x USB 3.2 Gen 1 5Gbps connectors (From AMD B550 Chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From AMD B550 Chipset) Supports additional 4 USB 2.0 ports |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
