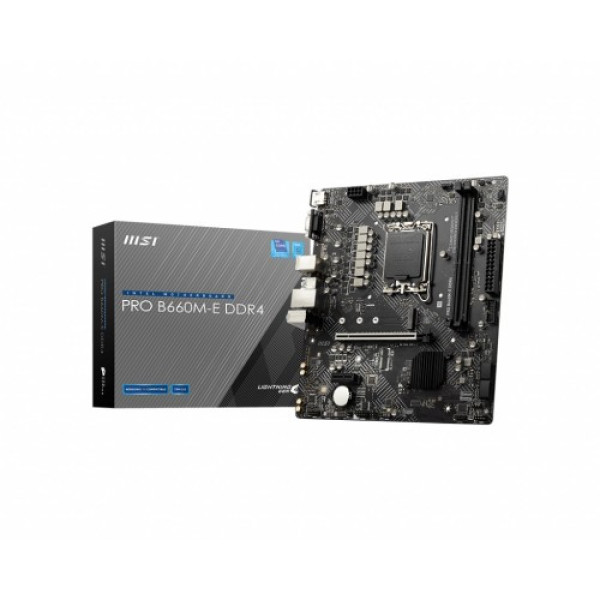

MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard
Key highlights
- Form Factor: M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
- Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
- SpecialFeatures: 4x EZ Debug LED
- Supported CPU: Supports 12th Gen Intel Core Processors, Pentium® Gold and Celeron Processors Processor socket LGA1700
- Audio: Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
Description
Explore the Features of MSI PRO B660M-E Motherboard
MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard
The MSI PRO B660M-E DDR4 motherboard is designed to meet the needs of both casual users and professional gamers. Built on the Intel B660 chipset, this motherboard is compatible with the latest 12th generation Intel processors, ensuring optimal performance for multitasking and gaming. With its M-ATX form factor, it is perfect for compact builds without compromising on features.
Key Features: The motherboard supports DDR4 memory with speeds up to 3200 MHz, providing fast data access and improved system performance. The inclusion of multiple PCIe slots allows for extensive upgrade options, including high-performance graphics cards and additional storage solutions. MSI’s user-friendly BIOS interface enables easy configuration and overclocking, making it ideal for users seeking to maximize their system's potential.
Moreover, the motherboard features advanced thermal solutions, ensuring that your system remains cool under load. It also includes high-quality audio capacitors for an immersive sound experience. The MSI PRO B660M-E is built to last, with a durable design that meets the demands of the Bangladeshi market.
Upgrade Your PC with MSI B660M-E M-ATX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm) |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| SpecialFeatures | 4x EZ Debug LED |
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium® Gold and Celeron Processors Processor socket LGA1700 |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| Type | DDR4 |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot (Key M, from B660 chipset) 1 Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Support Intel Optane Memory Supports Intel Smart Response Technology for Intel Core™ processors |
| Memory Specifications | |
| Maximum Memory | support up to 64GB |
| Slots | 2x DDR4 memory slots |
| Supported Memory | Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | DisplayPort (BACK PANEL PORTS) |
| Internal I/O Ports | 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | Intel B660 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| WARRANTY | |
| Manufacturing Warranty | 3 years warranty |
