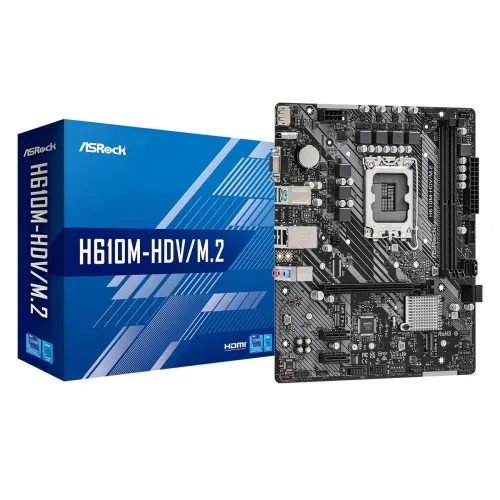

ASRock H610M-HDV/M.2 Micro ATX Motherboard for 13th & 12th Gen

  • Brand: ASRock
  • Product Code: H610M-HDV/M.2
  • Availability: Out Of Stock
৳6,600
Out Of Stock

One email when this product is in stock again. Nothing else.

0 reviews Write a review

Share on FacebookSend in MessengerShare on TelegramShare on X (Twitter)Share by email
Unisoft ERP Accounting Software – Free Smartphone Offer Unisoft ERP Accounting Software – Free Smartphone Offer

Specification

BASIC INFORMATION
Form Factor- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm - Solid Capacitor design
Graphics- Intel Xe Graphics Architecture (Gen 12) - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
SpecialFeaturesASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Slots2 x DDR4 DIMM Slots
Audio- HD Audio Jacks: Line in / Front Speaker / Microphone
BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
TypeDual Channel DDR4 Memory Technology
Expansion Slots
PCI- 1 x PCIe Gen4x16 Slot - 2 x PCIe Gen3x1 Slots - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Memory Specifications
Maximum Memory64GB
PORTS, CONNECTORS & SLOTS
D-Sub (s)1 x D-Sub Port
Display Port (s)1 x DisplayPort 1.4
HDMI1 x HDMI Port
Internal I/O Ports- 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
LAN Port (s)- Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE
Supported Storage- 4 x SATA3 6.0 Gb/s Connectors - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
TPM (Trusted Platform Module )1 x SPI TPM Header
USB (s)- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
WARRANTY
Manufacturing Warranty3 years

Description

ASRock H610M-HDV/M.2: The Perfect Micro ATX Motherboard for 13th and 12th Gen Processors

The ASRock H610M-HDV/M.2 Micro ATX motherboard emerges as a powerful solution designed specifically for Intel's 13th and 12th Gen processors. This motherboard is engineered to meet the demands of both casual users and gaming enthusiasts, providing a robust platform for high-performance computing. With its compact Micro ATX form factor, it fits perfectly into smaller cases, making it an ideal choice for those looking to build a compact yet powerful system.

Unmatched Performance and Versatility: Featuring an LGA 1700 socket, the H610M-HDV/M.2 supports a range of Intel processors, allowing users to benefit from the latest advancements in CPU technology. Users can experience faster data transfer rates thanks to the motherboard's PCIe 4.0 slots, which enhance the performance of graphics cards and NVMe SSDs.

Enhanced Connectivity: This motherboard comes with a variety of connectivity options, including multiple USB 3.2 Gen1 ports, HDMI, and Ethernet. Whether you are transferring files, streaming media, or gaming online, the ASRock H610M-HDV/M.2 ensures seamless performance. Its built-in Realtek Gigabit Ethernet controller provides stable internet connectivity, crucial for online gaming and streaming applications.

Future-Proof Your Build: The ASRock H610M-HDV/M.2 is designed with future upgrades in mind. It supports up to 64GB of DDR4 RAM, ensuring that your system remains capable of handling demanding applications and multitasking with ease. Additionally, the M.2 slots allow for high-speed SSD installations, further enhancing your system's overall performance.

Why Choose ASRock H610M-HDV/M.2?: This motherboard stands out due to its exceptional build quality and performance metrics. It is equipped with a durable power design that ensures stable operation even under heavy loads. The user-friendly BIOS interface allows for easy system tweaks and overclocking options, enabling users to maximize their hardware's potential.

The ASRock H610M-HDV/M.2 is perfect for anyone looking to build a new system or upgrade an existing one. Whether you're a gamer, content creator, or a general user, this motherboard offers the perfect blend of performance, reliability, and value. Invest in the ASRock H610M-HDV/M.2 and experience a significant boost in your computing experience.
