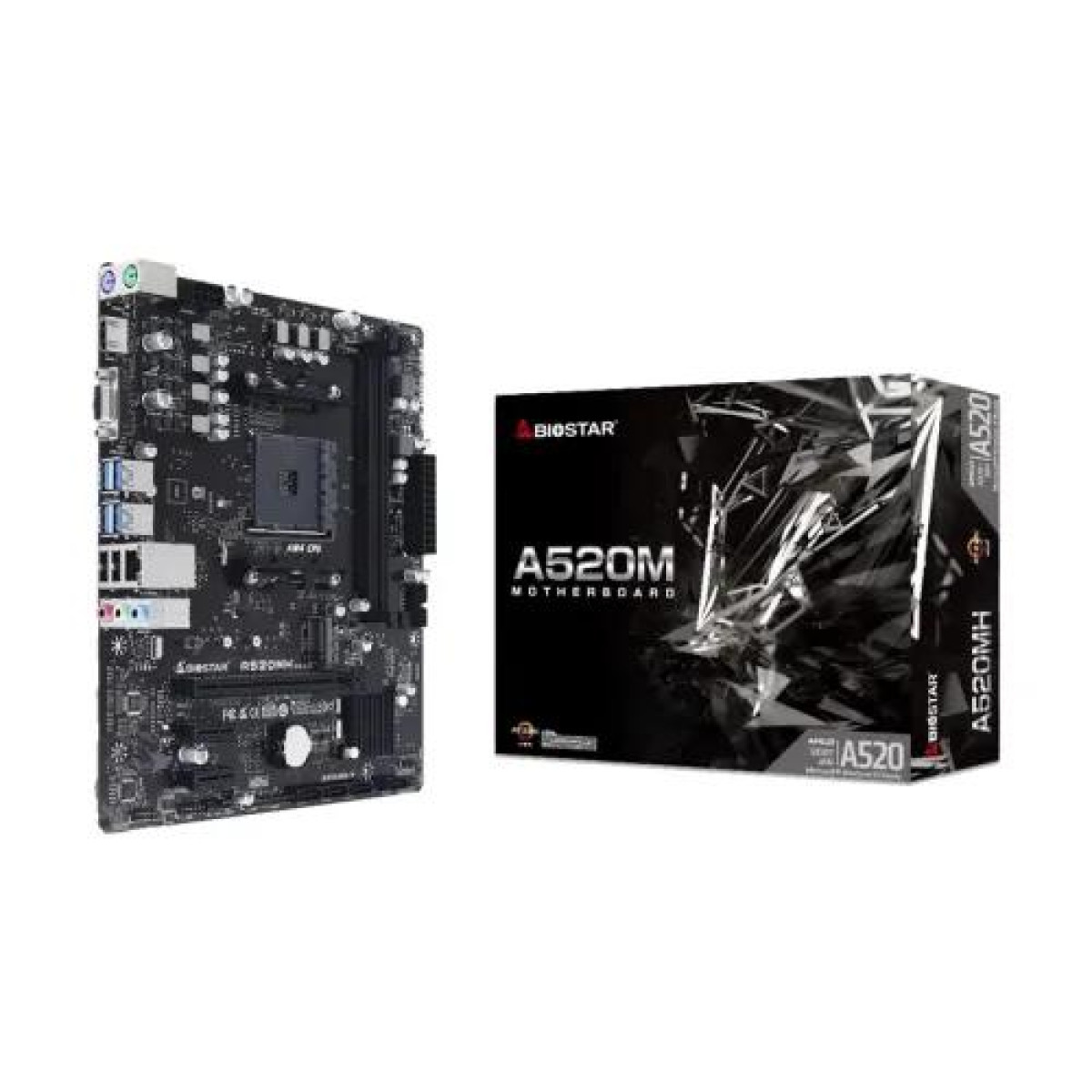

BIOSTAR A520MH DDR4 AMD AM4 Micro ATX Motherboard
- Brand:BIOSTAR
- Product Code: BIOSTAR A520MH DDR4 AMD AM4 Micro ATX Motherboard
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L ) |
|---|---|
| Supported CPU | Socket AM4 support AMD 3rd Gen Ryzen (Matisse/ Renoir) processors and Ryzen 4th Gen (Vermeer) processors Support for future AMD Ryzen processors with BIOS update |
| Chipset | AMD A520 |
| Slots | 2 x DIMM |
| Audio | 3 x Audio Jack |
| Expansion Slots | |
| M.2 Socket | Supports M.2 Type 2242/ 2260/ 2280 SSD module |
| PCI | AMD Ryzen 5000/5000 G/4000 G/3000 Processors 1 x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 Slot |
| Graphics Specifications | |
| Graphics | By CPU model Supports DX12 Supports HDCP |
| Memory Specifications | |
| Maximum Memory | Up to 64 GB |
| Supported Memory | 3rd Gen AMD Ryzen Processors (Matisse CPUs) Supports for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200/ 2933 / 2667 / 2400 / 2133 / 1866 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs) Supports for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | 4 x SATA III (6.0Gb/s) Connectors 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x Internal Stereo Speaker Header 1 x COM Port Header |
| LAN Port (s) | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability Supports Super LAN Surge Protection |
| Supported Storage | 4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 3.0 x 4 (32Gb/s) Supports SATA III (6.0Gb/s) SSD |
| USB (s) | 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) |
| Special | |
| Bundled Software | BullGuard |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
The BIOSTAR A520MH DDR4 AMD AM4 Micro ATX Motherboard is the perfect choice for computer users and students looking for a high-quality, reliable motherboard that delivers exceptional performance.
This motherboard is designed to meet the needs of modern computer users, providing a range of features that ensure speed and efficiency. The DDR4 memory support allows for fast and seamless multitasking, while the AM4 socket provides compatibility with a wide range of AMD processors, guaranteeing smooth and reliable performance.
With the BIOSTAR A520MH DDR4 AMD AM4 Micro ATX Motherboard, you can experience lightning-fast speeds and responsive performance, making it ideal for gaming, editing, and other intensive tasks. The micro ATX form factor is perfect for compact builds, while still offering plenty of room for expansion and upgrades.
At Unix Network in Jashore, Bangladesh, we understand the importance of quality and reliability when it comes to choosing computer components. That's why we only stock products from trusted brands like BIOSTAR, ensuring that our customers receive the best possible performance and value for their money.
Whether you're a seasoned computer user or a student looking to build your first PC, the BIOSTAR A520MH DDR4 AMD AM4 Micro ATX Motherboard is the perfect choice. With its impressive features, top-notch quality, and unbeatable performance, this motherboard will take your computing experience to the next level. Visit Unix Network in Jashore today and see the difference for yourself.
