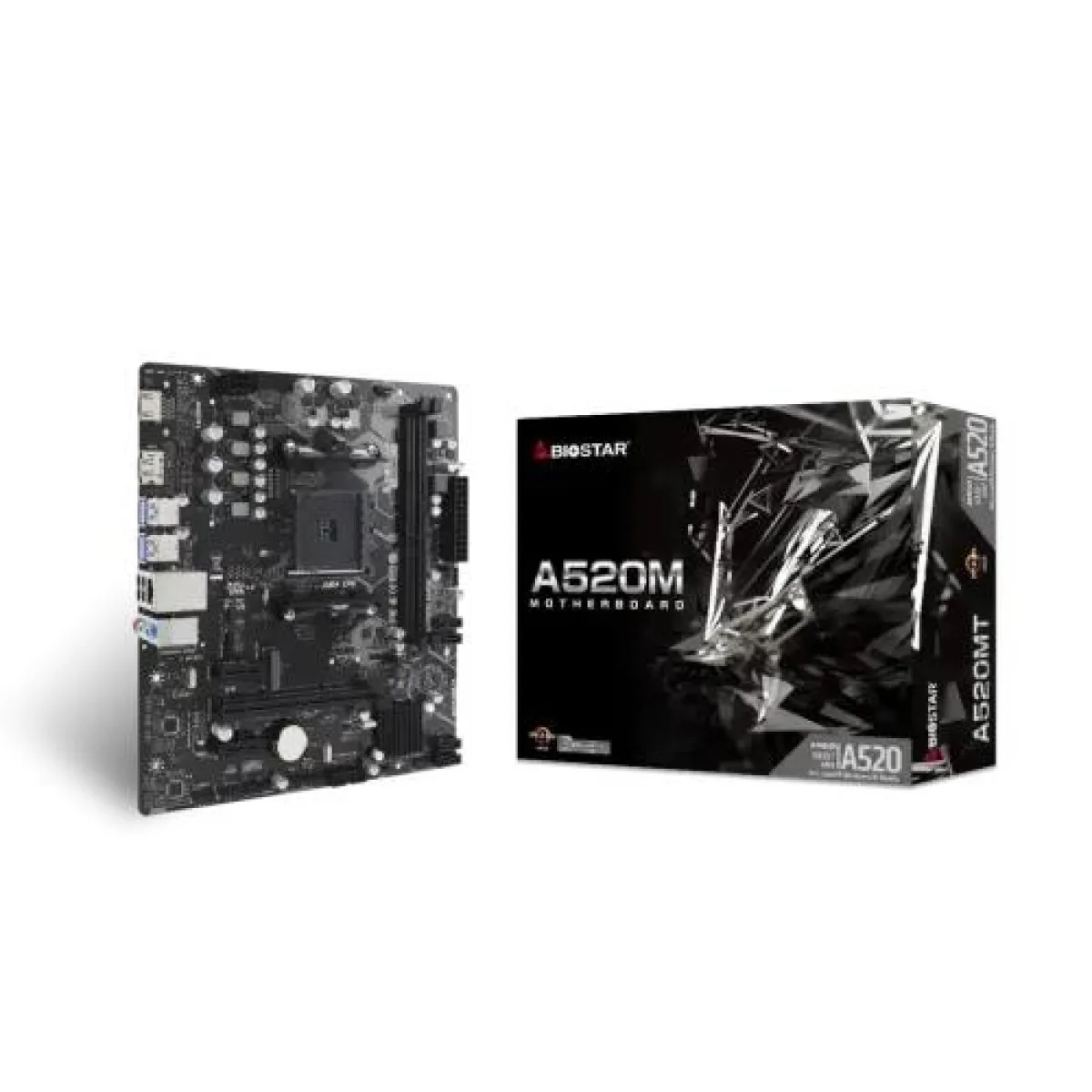

BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard
- Brand:BIOSTAR
- Product Code: BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor Dimension: 23.5cm x 20.8cm ( W x L ) |
|---|---|
| Supported CPU | Socket AM4 supports AMD Ryzen 3rd Gen (Matisse/ Renoir) and Ryzen 4th Gen (Vermeer/ Cezanne) processors Support for future AMD Ryzen processors with BIOS update |
| Chipset | AMD A520 |
| Slots | 2 x DIMM |
| Audio | 3 x Audio Jack |
| Expansion Slots | |
| M.2 Socket | Supports M.2 Type 2242/ 2260/ 2280 SSD module |
| PCI | AMD Ryzen 5000/3000 Series Processors 1 x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode) or AMD Ryzen 5000 G/4000 G Series Processors 1 x PCIe 3.0 x16 Slot(x16 or x8/x4/x4 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 Slot |
| Graphics Specifications | |
| Graphics | By CPU model Supports DX12 Supports HDCP |
| Memory Specifications | |
| Maximum Memory | Up to 64GB |
| Supported Memory | 4th Gen AMD Ryzen Processors (Vermeer CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133 4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | 4 x SATA III (6.0Gb/s) Connectors 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen2) Type-C Header 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header |
| LAN Port (s) | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| Supported Storage | Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports AMD Ryzen 5000/5000 G/4000 G/3000 Processors 1 x M.2 (M Key) Socket (M2M_CPU): Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD AMD A520 Chipset 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 |
| USB (s) | 4 x USB 3.2 (Gen1) Ports 2 x USB 2.0 Ports |
| Special | |
| Bundled Software | BullGuard |
| WARRANTY | |
| Manufacturing Warranty | 3 Years Warranty |
Description
When it comes to building the ultimate computer system, the motherboard plays a crucial role in ensuring top-notch quality, performance, and speed. Introducing the BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard, a powerhouse of a motherboard designed to exceed all expectations and cater to the needs of computer users and students alike.
Crafted with precision and attention to detail, the BIOSTAR A520MT motherboard boasts unmatched quality that is sure to impress even the most discerning tech enthusiasts. Featuring a Micro ATX form factor, this motherboard is compact yet powerful, making it the perfect choice for those looking to build a high-performing PC without compromising on space.
Equipped with DDR4 memory support, the BIOSTAR A520MT ensures lightning-fast data transfer speeds and seamless multitasking capabilities, allowing you to work, study, and play without any lag or delays. Whether you're editing videos, gaming, or running complex simulations, this motherboard delivers the performance you need to stay ahead of the curve.
Designed to meet the demands of modern computing, the BIOSTAR A520MT motherboard supports AMD AM4 processors, providing you with the flexibility to choose the perfect CPU for your needs. With support for the latest AMD technologies, including PCIe 4.0 and USB 3.2 Gen 1, this motherboard ensures that you are future-proofed and ready for whatever comes your way.
At Unix Network in Jashore, Bangladesh, we pride ourselves on offering top-of-the-line products like the BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard to our customers. With a team of knowledgeable experts and a commitment to excellence in customer service, we are dedicated to helping you find the perfect components for your next build. Upgrade your computer system today with the BIOSTAR A520MT motherboard and experience the difference in quality, performance, and speed. Trust Unix Network to deliver the best in technology products and services.
Are you a computer user or a student looking to upgrade your current system with a motherboard that offers top-notch quality, superior performance, and lightning-fast speeds? Look no further than the BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard available at Unix Network in Jashore, Bangladesh.
This Micro ATX motherboard is designed for those who demand the best in terms of functionality and reliability. Whether you're a professional working on important projects or a student looking to ace your next assignment, this motherboard is guaranteed to meet and exceed your expectations.
Featuring DDR4 memory support, this motherboard ensures seamless multitasking and smooth operation, allowing you to run multiple applications simultaneously without any lag or slowdown. With its AMD AM4 socket, you can enjoy blazing-fast speeds and performance, making it the perfect choice for gamers, content creators, and everyday users alike.
Quality is of utmost importance when it comes to motherboards, and the BIOSTAR A520MT does not disappoint. Built to last, this motherboard is made with the highest quality materials to ensure durability and longevity. You can trust that this motherboard will provide years of reliable service without any hiccups or issues.
When it comes to speed, this motherboard delivers in spades. With support for the latest technologies and features, you can experience lightning-fast data transfer speeds, smooth video playback, and crystal-clear audio quality. Say goodbye to frustrating bottlenecks and hello to a seamless computing experience.
Don't settle for subpar performance and outdated technology. Upgrade to the BIOSTAR A520MT DDR4 AMD AM4 Micro ATX Motherboard today and experience the difference for yourself. Visit Unix Network in Jashore, Bangladesh, and take advantage of our expert sales and service team who are ready to assist you in finding the perfect motherboard for your needs. Elevate your computing experience with BIOSTAR.
