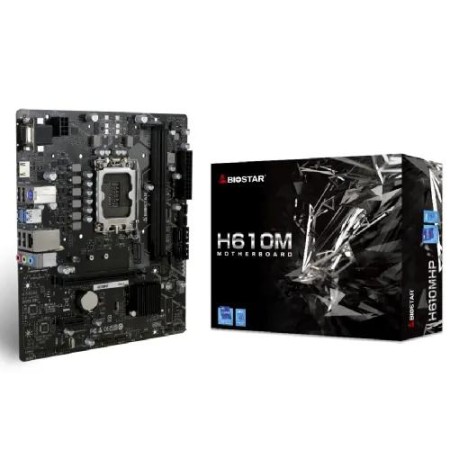

BIOSTAR H610MHP Micro ATX Motherboard
- Brand:BIOSTAR
- Product Code: H610MHP
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L ) |
|---|---|
| Supported CPU | Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package |
| Chipset | Intel H610 |
| Slots | 2 x DIMM |
| Audio | 3 x Audio Jack |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 socket |
| PCI | 1 x PCIe 4.0 x16 Slot (x16 mode) 1 x PCIe 3.0 x1 Slot |
| Graphics Specifications | |
| Graphics | Supports DX12 Supports HDCP |
| Memory Specifications | |
| Maximum Memory | Up to 64 GB |
| Supported Memory | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200 Each DIMM supports non-ECC 4/8/16/32GB DDR4 module Support Intel Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI |
| Internal I/O Ports | 4 x SATA III Connectors (6Gb/s) 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header |
| LAN Port (s) | Intel I219V 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| Supported Storage | Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports Intel H610 Chipset 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA): Supports M.2 Type 2242 /2260 /2280 SSD module Supports PCIe 3.0 x 4 (32Gb/s) & SATA lll (6Gb/s) SSD 4 x SATA III Connector (6Gb/s) |
| TPM (Trusted Platform Module ) | 1 x TPM Header |
| USB (s) | 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers) |
| Special | |
| Bundled Software | BullGuard |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
BIOSTAR H610MHP Micro ATX Motherboard Price in Bangladesh
The BIOSTAR H610MHP Micro ATX Motherboard is a budget-friendly Intel motherboard designed for office computers, home desktops, educational systems, and entry-level gaming PC builds. Built around the Intel H610 chipset and LGA1700 socket, this motherboard supports compatible Intel Core processors from the 12th, 13th, and 14th generations, subject to BIOS compatibility. With DDR4 memory support, M.2 SSD connectivity, PCIe expansion, and essential display and networking options, the BIOSTAR H610MHP provides a practical foundation for an affordable Intel desktop PC in Bangladesh.
Intel H610 Chipset and LGA1700 Processor Support
The BIOSTAR H610MHP features the Intel H610 chipset and LGA1700 processor socket, designed for compatible Intel Core i3, Core i5, Core i7, and Core i9 desktop processors from the 12th, 13th, and 14th generations. It is suitable for building an everyday desktop computer for office applications, online learning, web browsing, and general productivity. Support for newer processor generations may require a compatible BIOS version. Buyers should verify the manufacturer's CPU support list, BIOS requirements, and processor power specifications before installation.
Dual-Channel DDR4 Memory Support up to 64GB
The BIOSTAR H610MHP Micro ATX Motherboard features two DDR4 DIMM slots with dual-channel memory support and a stated maximum capacity of 64GB. It supports DDR4 memory speeds of up to 3200MHz with compatible processors and memory modules. Dual-channel operation can improve memory bandwidth when suitable RAM modules are installed in both slots. Actual supported speeds and capacities depend on the processor, BIOS version, and memory configuration.
M.2 PCIe SSD Support for Faster Storage Performance
The BIOSTAR H610MHP includes an M.2 storage slot for compatible high-speed SSDs, providing a convenient storage upgrade for modern desktop computers. PCIe NVMe SSD technology can reduce operating system startup times, improve application loading, and provide faster file access compared with traditional mechanical hard drives. The supplied specifications indicate an M.2 PCIe interface with up to 32Gb/s bandwidth. Buyers should confirm the exact supported M.2 SSD sizes, PCIe generation, and SATA M.2 compatibility for their motherboard revision before purchasing storage devices.
PCIe x16 Expansion Slot for Dedicated Graphics Cards
The BIOSTAR H610MHP provides a PCIe x16 expansion slot for installing compatible dedicated graphics cards. This allows users to upgrade from integrated processor graphics to a dedicated GPU for gaming, graphics applications, multimedia editing, and other visually demanding workloads. The supplied specifications describe PCIe 4.0 x16 support, although the effective PCIe generation and bandwidth depend on the motherboard revision and installed processor. Before selecting a graphics card, confirm compatibility with the motherboard, power supply, and computer casing.
Four SATA III 6Gb/s Ports for Additional Storage
The BIOSTAR H610MHP motherboard is described as featuring four SATA III 6Gb/s connectors for connecting compatible SATA SSDs and hard disk drives. These ports provide flexible storage options for users who need additional space for documents, applications, photographs, videos, and other files. SATA connectivity is particularly useful for combining a fast M.2 system drive with larger secondary storage devices in a desktop PC.
HDMI and VGA Display Connectivity
The BIOSTAR H610MHP includes HDMI and VGA display outputs for connecting compatible monitors and projectors. HDMI provides digital video connectivity for modern displays, while VGA offers an option for older monitors. The supplied specifications mention support for up to 4K UHD output through HDMI, subject to the motherboard's supported display mode and the installed processor's integrated graphics capabilities. Motherboard display outputs require a compatible processor with integrated graphics and will not function with Intel F-series processors that lack integrated graphics.
Realtek ALC897 High-Definition Audio
The BIOSTAR H610MHP is described as using a Realtek ALC897 high-definition audio codec with support for multichannel audio functionality. Its integrated audio system is suitable for everyday entertainment, online meetings, educational applications, gaming, and multimedia playback. Users can connect compatible headphones, speakers, and microphones through the available audio connections. Actual channel configurations and supported audio features depend on the motherboard's physical connectors and audio settings.
Realtek Gigabit LAN for Reliable Wired Networking
The BIOSTAR H610MHP Micro ATX Motherboard features a Realtek Gigabit Ethernet controller designed for wired network connections of up to 1Gbps with compatible networking equipment. Gigabit LAN connectivity is useful for office networking, internet browsing, video conferencing, online gaming, and transferring files across a local network. Actual network speeds depend on the router, switch, Ethernet cable, internet service, and network conditions.
Micro ATX Form Factor for Compact Desktop PC Builds
The BIOSTAR H610MHP uses the Micro ATX form factor, making it suitable for a wide range of compatible desktop computer casings. Its compact motherboard design is useful for office PCs, home computers, educational systems, and budget gaming builds where efficient use of internal space is important. Before assembling a computer, confirm that the casing supports Micro ATX motherboards and provides sufficient clearance for the selected processor cooler, graphics card, and other components.
Essential USB and Peripheral Connectivity
The BIOSTAR H610MHP provides connectivity options for common desktop accessories such as keyboards, mice, USB storage devices, printers, and external peripherals. Its rear-panel and internal connectors support everyday office and home computing requirements. The exact number of USB ports, supported USB versions, internal headers, and additional connectors should be checked against the official specifications of the motherboard revision being purchased.
Ideal Motherboard for Office, Home and Budget Gaming PCs
The BIOSTAR H610MHP is a practical choice for building an affordable Intel desktop computer for students, office employees, small businesses, and home users. When paired with a suitable Intel Core processor, compatible DDR4 RAM, and an SSD, it can support everyday productivity, accounting software, online classes, web browsing, and multimedia entertainment. Adding a compatible dedicated graphics card can also make it suitable for entry-level gaming, depending on the overall hardware configuration.
Why Choose the BIOSTAR H610MHP Micro ATX Motherboard?
The BIOSTAR H610MHP combines Intel LGA1700 processor support, dual-channel DDR4 memory, M.2 SSD connectivity, SATA storage expansion, a PCIe x16 graphics slot, HDMI and VGA outputs, integrated audio, and Gigabit Ethernet. Its Micro ATX design and essential connectivity make it a cost-conscious option for building or upgrading a desktop PC. Buyers should consider processor compatibility, BIOS requirements, available expansion slots, and power delivery limitations when choosing components, particularly for higher-power Intel Core processors.
BIOSTAR H610MHP Micro ATX Motherboard Price in Bangladesh
Looking for the BIOSTAR H610MHP Micro ATX Motherboard price in Bangladesh? Contact Unix Network for the latest price, stock availability, and product specifications. Whether you are building a budget Intel Core i3 desktop, an office PC, or an entry-level gaming computer, our team can help you check compatible processors, DDR4 memory, SSDs, and other essential components. Prices and availability may change, so confirm the current details before placing your order.
Buy BIOSTAR H610MHP Motherboard from Unix Network in Jashore
Buy the BIOSTAR H610MHP Micro ATX Motherboard from Unix Network in Jashore, Bangladesh. Visit our computer components shop in Jashore to enquire about Intel motherboards, processors, desktop RAM, SSDs, graphics cards, and custom PC building options. Customers from Khulna, Jhenaidah, Magura, Narail, Satkhira, and other areas of Bangladesh can also contact Unix Network for online ordering and delivery options. Confirm the motherboard revision, processor and BIOS compatibility, product authenticity, current price, and applicable warranty terms before purchasing.
