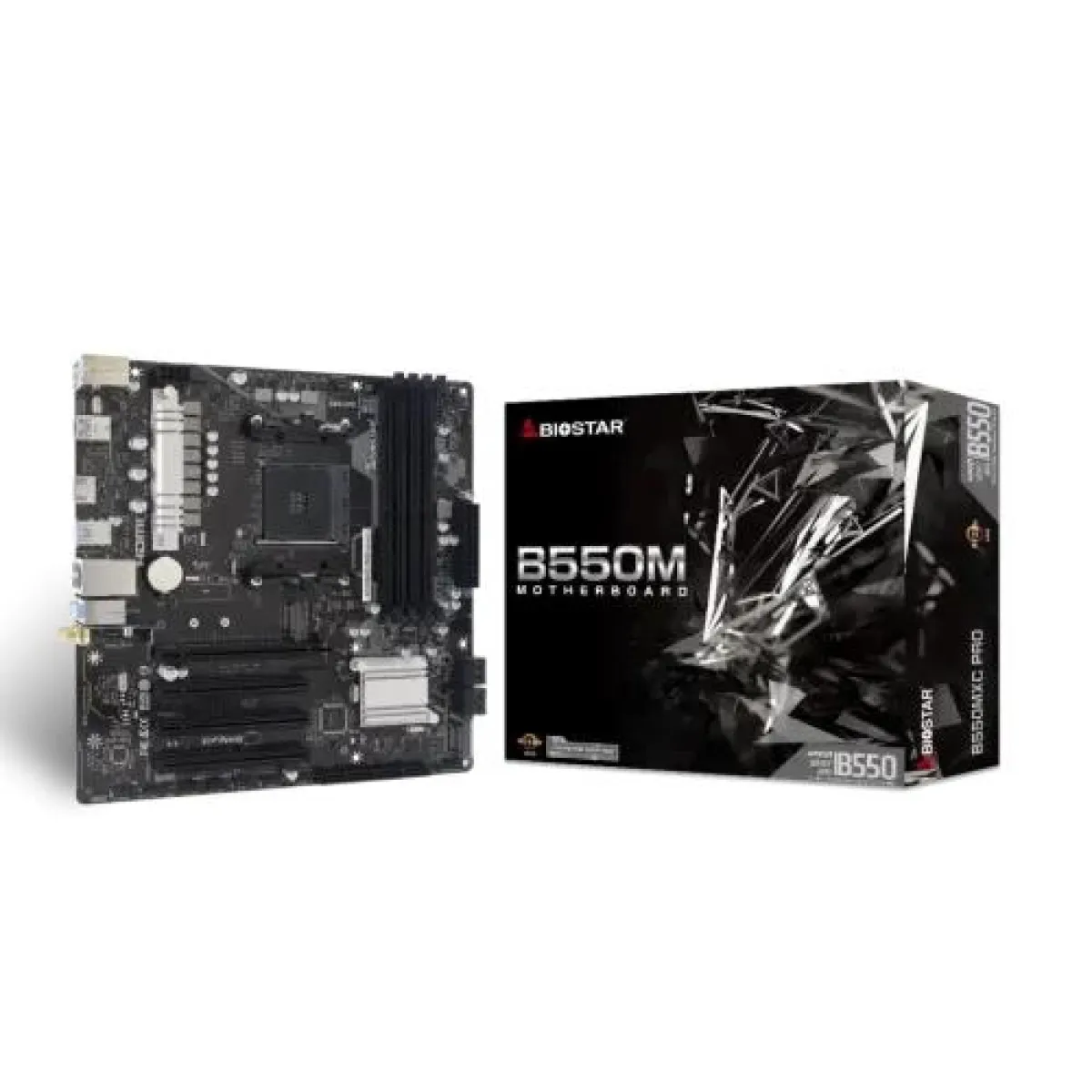

BIOSTAR B550MXC PRO DDR4 AMD AM4 Micro ATX Motherboard
- Brand: BIOSTAR
- Product Code: BIOSTAR B550MXC PRO DDR4 AMD AM4 Micro ATX Motherboard
- Availability: Out Of Stock
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L ) |
| Supported CPU | Socket AM4 support AMD Ryzen 3rd Gen (Matisse/ Renoir) and Ryzen 4th Gen (Vermeer/ Cezanne) processors Support for future AMD Ryzen processors with BIOS update |
| Chipset | AMD B550 |
| Slots | 4 x DIMM |
| Audio | 3 x Audio Jack |
| Expansion Slots | |
| M.2 Socket | 2 x M.2 sockets |
| PCI | AMD Ryzen 5000/3000 Series Processors 1 x PCIe 4.0 x16 Slot (x16 or x4/x4/x4/x4 mode) or AMD Ryzen 5000 G/4000 G Series Processors 1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 Slot (x1 mode) 1 x PCIe 3.0 x16 Slot (x1 mode) 1 x PCIe 3.0 x16 Slot (x1 mode) |
| Graphics Specifications | |
| Graphics | By CPU model Supports DX12 Supports HDCP |
| Memory Specifications | |
| Maximum Memory | Up to 128GB |
| Supported Memory | 4th Gen AMD Ryzen Processors (Vermeer CPUs/ Cezanne APUs): Supports Dual Channel DDR4 1866/2133/2400/2666/2933/3200/4533(OC) 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 1866/2133/2400/2666/2933/3200/4533(OC) 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 1866/2133/2400/2666/2933/3200/4533(OC) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | 8 x SATA III (6.0Gb/s) Connector 1 x M.2 (E Key) Socket: Supports 2230 type Wi-Fi & Bluetooth module 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 2 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x S/PDIF out Connector 1 x COM Port Header 1 x TPM Header 2 x LED Header (5V) 1 x LED Header (12V) 1 x Debug LED |
| LAN Port (s) | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability |
| Supported Storage | Total supports 8 x SATA III (6Gb/s) ports and 2 x M.2 sockets 4 x SATA III (6Gb/s) Support AHCI & RAID 0, 1, 5, 10 only for SATA1 ~ SATA4 ports* 2 x M.2 slots (Key M) 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA) (From AMD Processors) Supports PCIe 4.0/ 3.0x4** - NVMe/ AHCI Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA) (From AMD B550 Chipset) Supports PCIe 3.0x4 - NVMe/ AHCI Supports SATA 6Gb/s Supports 2280 storage devices |
| USB (s) | 4 x USB 3.2 (Gen1) Port 2 x USB 2.0 Port 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) |
| Wireless Communication module | Supports WiFi 6 module |
| Special | |
| Bundled Software | BullGuard |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
The BIOSTAR B550MXC PRO DDR4 AMD AM4 Micro ATX Motherboard is designed to deliver superior performance for gamers, content creators, and PC enthusiasts looking for a compact yet powerful motherboard. Built for the AMD AM4 socket, it supports AMD Ryzen 3000 and 5000 series processors, offering excellent performance for both gaming and multitasking. The B550MXC PRO motherboard strikes a perfect balance between affordability and high-end features, making it an excellent choice for users seeking value without compromising on performance.
Equipped with DDR4 memory support, PCIe 4.0 compatibility, and future-proof technology, the BIOSTAR B550MXC PRO provides a robust platform for high-performance computing. The Micro ATX form factor ensures that this motherboard can fit into smaller cases, without sacrificing essential features such as USB 3.2 Gen 2, M.2 slots, and advanced cooling solutions. Whether you're building a gaming rig, a home office setup, or a multimedia workstation, the BIOSTAR B550MXC PRO is built to handle demanding tasks efficiently and reliably.
People Also Ask (PAA)
What is the BIOSTAR B550MXC PRO DDR4 AMD AM4 Micro ATX Motherboard? The BIOSTAR B550MXC PRO is a Micro ATX motherboard designed for AMD Ryzen processors (3000 and 5000 series). It supports DDR4 RAM, PCIe 4.0, and features advanced connectivity options like USB 3.2 Gen 2, making it ideal for gaming, content creation, and general PC builds.
Which processors are compatible with the BIOSTAR B550MXC PRO motherboard? The BIOSTAR B550MXC PRO motherboard is compatible with AMD Ryzen 3000 and 5000 series processors. It supports AM4 socket CPUs, including Ryzen 9, Ryzen 7, Ryzen 5, and Ryzen 3 chips, giving users the flexibility to choose from a wide range of processors for their build.
Does the BIOSTAR B550MXC PRO support PCIe 4.0? Yes, the BIOSTAR B550MXC PRO motherboard supports PCIe 4.0, allowing for faster data transfer speeds and better performance with next-generation graphics cards and storage devices. This ensures optimal performance for gaming, content creation, and high-performance computing.
Can I use DDR5 RAM with the BIOSTAR B550MXC PRO? No, the BIOSTAR B550MXC PRO supports DDR4 RAM only. It is compatible with DDR4 memory speeds up to 4400MHz (OC), providing ample bandwidth for gaming, multitasking, and other demanding applications.
Is the BIOSTAR B550MXC PRO good for gaming? Yes, the BIOSTAR B550MXC PRO motherboard is an excellent choice for building a gaming PC. It offers support for AMD Ryzen processors, PCIe 4.0, and high-speed storage options like M.2 NVMe SSDs, ensuring smooth performance in modern games. The Micro ATX form factor also makes it a space-efficient choice for gaming builds.
Use Cases and Benefits
For Gamers: The BIOSTAR B550MXC PRO motherboard is a great option for gamers looking for a compact yet powerful platform. With support for Ryzen processors, PCIe 4.0, and DDR4 memory, this motherboard provides the performance needed for gaming, ensuring smooth gameplay and fast load times. The M.2 NVMe slot allows you to install high-speed storage, reducing in-game load times and increasing performance.
For Content Creators: Whether you’re working on video editing, 3D rendering, or multimedia creation, the BIOSTAR B550MXC PRO offers the power needed for resource-heavy tasks. The PCIe 4.0 support enables fast data transfer for tasks like rendering and file editing, while the Micro ATX form factor fits easily into compact workstation builds.
For Budget-Friendly Builds: The BIOSTAR B550MXC PRO is an ideal option for users who want a solid gaming PC or workstation without breaking the bank. It supports AMD Ryzen processors, DDR4 RAM, and offers key features like PCIe 4.0 and USB 3.2 at an affordable price point, making it great for budget-conscious builds.
For Compact PC Builds: The Micro ATX form factor makes this motherboard perfect for compact builds where space is limited. Despite its small size, it offers all the features you need, including support for multiple GPUs, advanced cooling options, and ample storage.
Competitive Advantages
The BIOSTAR B550MXC PRO DDR4 motherboard provides excellent value compared to other Micro ATX motherboards in its class. It supports PCIe 4.0, offering faster transfer speeds for next-gen graphics cards and NVMe SSDs. Unlike many competing B550 motherboards, the BIOSTAR B550MXC PRO offers high-speed connectivity options, such as USB 3.2 Gen 2, and is compatible with the latest AMD Ryzen 5000 series processors.
In addition, its compact design allows users to build a powerful system without needing a large case. With DDR4 memory support, the motherboard offers great performance while being more affordable than DDR5 boards. It's a solid choice for gamers and content creators who want a powerful platform without spending too much on premium features.
Introducing the BIOSTAR B550MXC PRO DDR4 AMD AM4 Micro ATX Motherboard, designed to provide top-notch performance and reliability for your PC build. This motherboard supports the latest AMD AM4 processors and features DDR4 memory compatibility for seamless multitasking and gaming.
Specifications:
- Socket: AMD AM4
- Form Factor: Micro ATX
- Memory Type: DDR4
- Expansion Slots: PCIe 4.0 x16, PCIe 3.0 x1
- Storage: 4x SATA 6Gb/s, 1x M.2
- Rear I/O: 1x PS/2, 4x USB 3.2 Gen1, 2x USB 2.0, 1x HDMI, 1x DisplayPort, 1x LAN, 3x Audio Jacks
- Audio: Realtek ALC897 7.1 Channel HD Audio
- Networking: Realtek RTL8111H 1Gb LAN
- Power Delivery: 9 Phase DrMOS
The BIOSTAR B550MXC PRO DDR4 AMD AM4 Micro ATX Motherboard is perfect for enthusiasts looking to build a powerful and reliable PC system. Upgrade your rig with BIOSTAR's top-quality components and unleash the full potential of your AMD processor.
