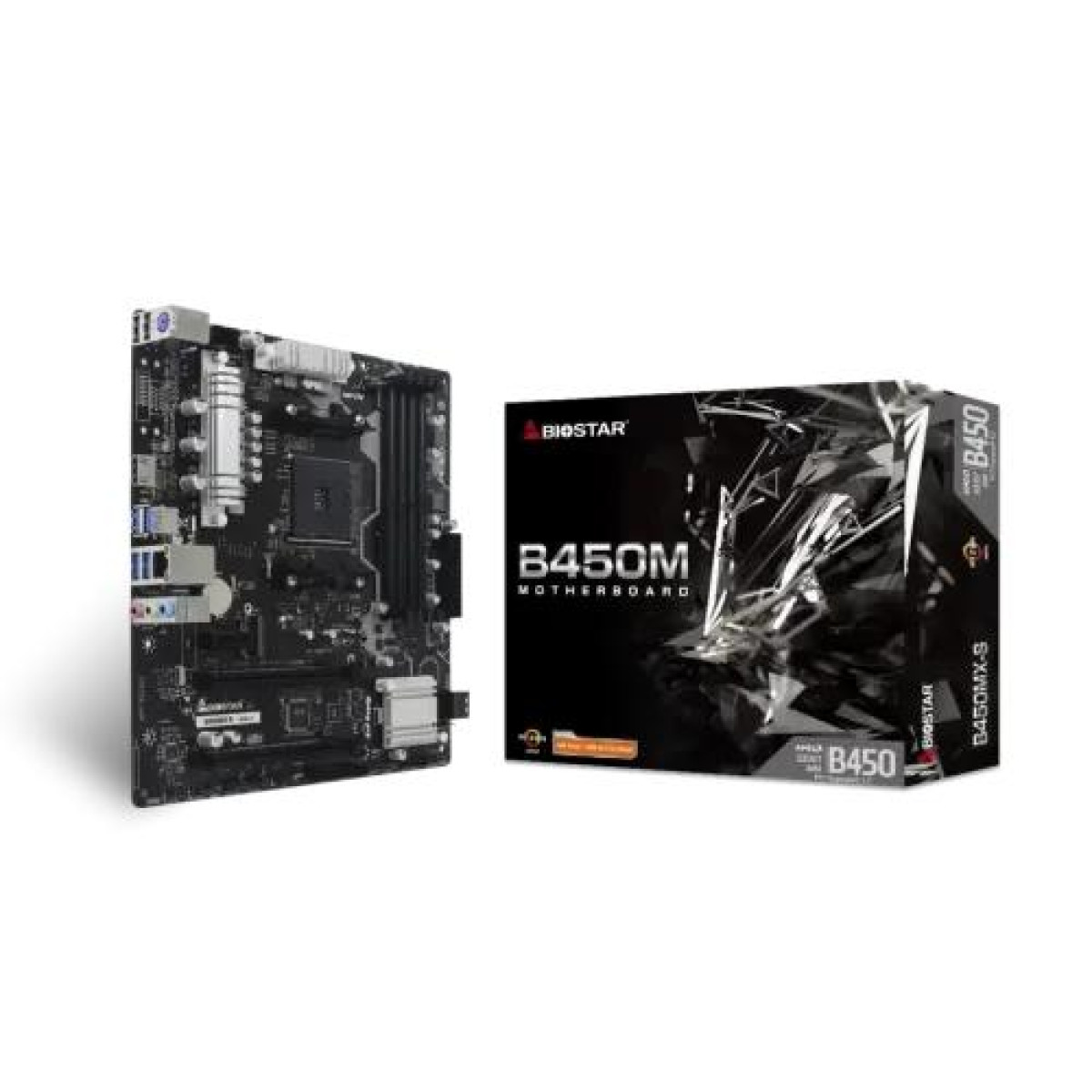

BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard
- Brand: BIOSTAR
- Product Code: BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard
- Availability: In Stock
- Usually ships in 1–2 business days
Key highlights
- Form Factor: Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )
- Supported CPU: Socket AM4 supports AMD Ryzen APU / Ryzen CPU
- Chipset: AMD B450
- Slots: 4 x DIMM
- Audio: 3 x Audio Jack
Description
Introducing the BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard, a powerhouse of a motherboard designed for both quality and performance. If you are a computer user or student looking for a reliable and efficient motherboard, look no further than the BIOSTAR B450MX-S.
Featuring advanced DDR4 memory support, this motherboard is built to handle the latest applications and software with ease. The AMD AM4 socket ensures compatibility with a wide range of processors, giving you the flexibility to choose the best one for your needs.
Designed with speed and efficiency in mind, the BIOSTAR B450MX-S is perfect for gaming, multimedia editing, and everyday tasks. With multiple PCIe slots for expansion, you can customize your setup to suit your specific requirements.
But it's not just about performance – the BIOSTAR B450MX-S also excels in terms of quality. Built with high-quality components and rigorous testing procedures, this motherboard is built to last. You can trust that your investment in the BIOSTAR B450MX-S will pay off in the long run.
At Unix Network in Jashore, Bangladesh, we are proud to offer the BIOSTAR B450MX-S DDR4 AMD AM4 Micro ATX Motherboard to our customers. Our team of experts can help you choose the right motherboard for your needs and assist you with installation and setup.
Don't settle for a subpar motherboard – invest in the BIOSTAR B450MX-S and experience the difference in quality, performance, and speed. Upgrade your computer setup today with the BIOSTAR B450MX-S from Unix Network.
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L ) |
| Supported CPU | Socket AM4 supports AMD Ryzen APU / Ryzen CPU |
| Chipset | AMD B450 |
| Slots | 4 x DIMM |
| Audio | 3 x Audio Jack |
| Expansion Slots | |
| M.2 Socket | Supports M.2 Type 2242/ 2260/ 2280 SSD module |
| PCI | AMD Processors 1 x PCIe 3.0 x16 Slot: Supports PCIe 3.0 x16 mode with AMD Ryzen™ processors. Supports PCIe 3.0 x8 mode AMD Ryzen™ with Radeon Vega Graphics processors. AMD Chipset 1 x PCIe 2.0 x16 Slot (x4 mode) 1 x PCIe 2.0 x1 Slot |
| Graphics Specifications | |
| Graphics | By CPU model Supports DX12 Supports HDCP |
| Memory Specifications | |
| Maximum Memory | Up to 128GB |
| Supported Memory | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667 Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000(OC) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | 4 x SATA III (6.0Gb/s) Connectors 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 2 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x Internal Stereo Speaker Header 1 x S/PDIF out Connector 1 x COM Port Header |
| LAN Port (s) | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| Supported Storage | 4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD Supports SATA III (6Gb/s) SSD * M.2 (M Key) Socket : The bandwidth is depended on CPU, Ryzen is 32Gb/s ; APU is 16Gb/s. |
| USB (s) | 4 x USB 3.2 (Gen1) Ports 2 x USB 2.0 Ports |
| Special | |
| Bundled Software | BullGuard |
| WARRANTY | |
| Manufacturing Warranty | 3 Years Warranty |
