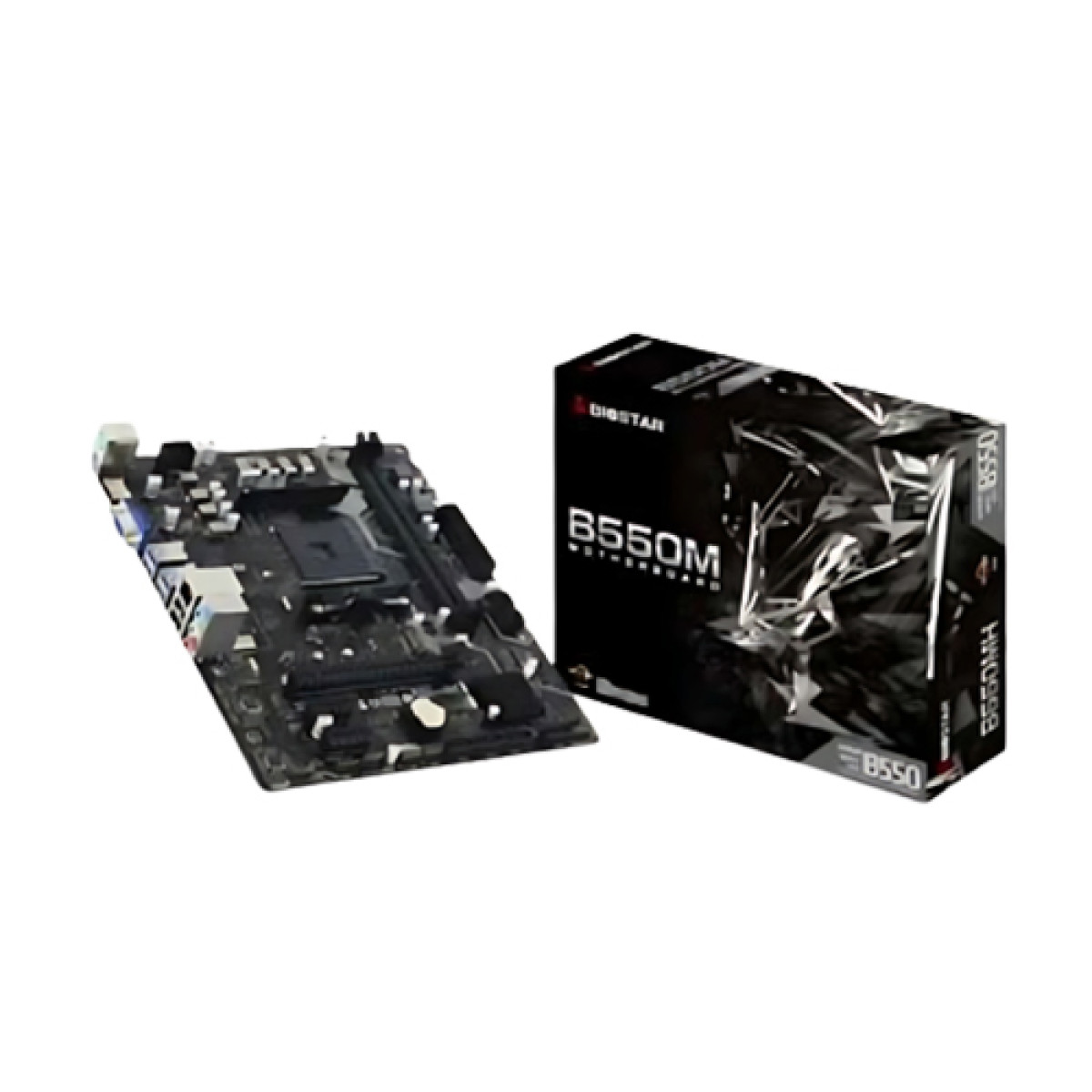

BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard in Jashore
- Brand:BIOSTAR
- Product Code: B550MH
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L ) |
|---|---|
| Supported CPU | Socket AM4 support AMD 3rd Gen Ryzen (Matisse/ Renoir) processors and Ryzen 4th Gen (Vermeer) processors Support for future AMD Ryzen processors with BIOS update |
| Chipset | AMD B550 |
| Slots | 2 x DIMM |
| Audio | 3 x Audio Jack |
| Type | DDR4 |
| Connectivity | |
| VGA | 1 x VGA Port |
| Expansion Slots | |
| PCI | 1 x PCIe 4.0/ 3.0 x 16 Slot: Supports PCIe 4.0 x 16 mode with AMD Ryzen processors. (Matisse only) Supports PCIe 3.0 x 16 mode AMD Ryzen with Radeon Vega Graphics processors. (Renoir only) 2 x PCIe 3.0 x 1 Slot |
| Memory Specifications | |
| Maximum Memory | Up to 64 GB |
| Supported Memory | 4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | 4 x SATA III (6.0Gb/s) Connectors 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x Internal Stereo Speaker Header 1 x COM Port Header |
| LAN Port (s) | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability Supports Super LAN Surge Protection |
| USB (s) | 8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
Unleash Your PC's Potential with the BIOSTAR B550MH DDR4 AMD AM4 Micro ATX Motherboard
The BIOSTAR B550MH motherboard is a powerful and versatile solution designed for users looking to build a high-performance computer system. With its Micro ATX form factor, this motherboard is perfect for compact builds while still offering robust features that cater to gamers, content creators, and everyday users alike. Built on the AMD AM4 platform, the B550MH supports the latest Ryzen processors, ensuring you can harness the full power of AMD's cutting-edge technology.
Key Features:
- Compatibility: The motherboard is compatible with a wide range of AMD Ryzen processors, including Ryzen 3000 and 5000 series, making it ideal for users who want flexibility in their CPU choices.
- Memory Support: With support for DDR4 memory up to 64GB, running at speeds of up to 3200MHz, you can expect lightning-fast performance in gaming and productivity tasks.
- Connectivity: Equipped with multiple USB 3.2 Gen 1 ports and M.2 slots for high-speed storage options, the B550MH ensures that your system stays connected and fast.
- Integrated Graphics: The motherboard features HDMI and DVI-D outputs, allowing you to connect multiple displays without needing a dedicated graphics card.
When you choose the BIOSTAR B550MH motherboard, you are investing in a product that enhances your computing experience. This motherboard is not just about performance; it also offers a range of benefits that make it a smart choice for both new and experienced builders. For instance, its BIOS user interface is intuitive, making system tweaks straightforward and accessible, even for those who are not tech-savvy.
Use Cases:
This motherboard is perfect for a variety of uses, from gaming to home office setups. Whether you are a gamer looking to get the most out of your hardware or a professional needing a reliable workstation, the B550MH is designed to meet your needs. Its solid build quality ensures durability, while the features it offers allow for future upgrades as your requirements grow.
Why Buy the BIOSTAR B550MH?
Customers should consider the BIOSTAR B550MH motherboard for its unbeatable combination of quality, features, and price. In the competitive market of motherboards, this model stands out with its exceptional value and performance, making it a wise investment for anyone looking to enhance their computing experience.
