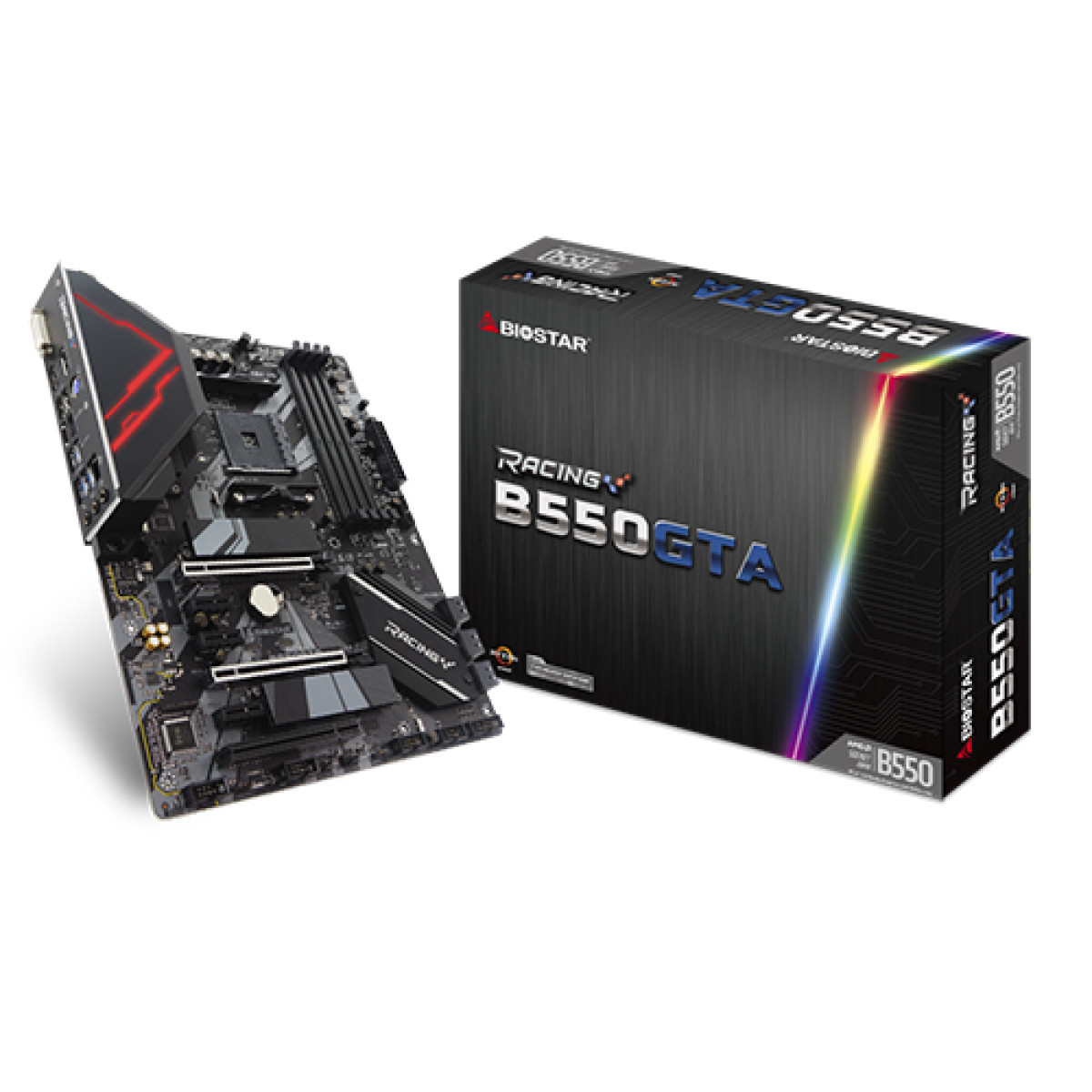

BIOSTAR B550GTA AMD B550 GAMING MOTHERBOARD
Key highlights
- Form Factor: ATX Form Factor
- Chipset: AMD B550
- Memory: 3rd Gen AMD Ryzen Processors (Matisse CPUs) Support for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs) Support for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
- Slots: 1 x PCI Slot 1 x PCIe 4.0/ 3.0 x16 Slot (PEX16_1): Supports x 16 lanes with AMD Ryzen™ 3rd Gen processors. (Matisse only) Supports x8 lanes AMD Ryzen™ with Radeon Vega Graphics processors. (depended on CPU) 1 x PCIe 3.0 x 16 Slot (PEX16_SB_1): Supports x 4 lanes 3 x PCIe 3.0 x 1 Slot * According to different CPUs will have different speeds. * PCIe 4.0 speed only for AMD® Ryzen™ 3rd Gen Matisse. * When using PCIe x 1 slots (PEX1_1/ PEX1_2/ PEX1_3 ), PCIe x 16 slot (PEX16_SB_1) will be adjusted to x1 lanes.
- Audio: ALC1150 7.1 Channels, High Definition Audio, Hi-Fi(Front)
Description
High-Performance Features of BIOSTAR B550GTA Motherboard
Upgrade Your Gaming Experience with the BIOSTAR B550GTA
The BIOSTAR B550GTA AMD B550 Gaming Motherboard is designed for gamers and PC enthusiasts seeking exceptional performance and reliability. Built on the advanced B550 chipset, this motherboard supports AMD Ryzen processors, ensuring you harness the full potential of your CPU. Enhanced performance features such as PCIe 4.0 support enable faster data transfer rates, making it perfect for high-speed gaming and demanding applications.
With its robust thermal design and premium capacitors, the B550GTA ensures stability during intensive gaming sessions. The motherboard is equipped with multiple USB ports, including USB 3.2 Gen1, allowing for quick connections to a variety of peripherals. RGB lighting adds a stylish touch to your setup, while the intuitive BIOS interface makes system tuning and optimization straightforward.
Whether you're building a new gaming rig or upgrading your existing system, the BIOSTAR B550GTA is the ideal choice for those who demand high performance and reliability. Elevate your gaming experience and enjoy seamless gameplay with this feature-packed motherboard.
Why Choose BIOSTAR B550GTA for Your Gaming Setup
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor |
| Chipset | AMD B550 |
| Memory | 3rd Gen AMD Ryzen Processors (Matisse CPUs) Support for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs) Support for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module |
| Slots | 1 x PCI Slot 1 x PCIe 4.0/ 3.0 x16 Slot (PEX16_1): Supports x 16 lanes with AMD Ryzen™ 3rd Gen processors. (Matisse only) Supports x8 lanes AMD Ryzen™ with Radeon Vega Graphics processors. (depended on CPU) 1 x PCIe 3.0 x 16 Slot (PEX16_SB_1): Supports x 4 lanes 3 x PCIe 3.0 x 1 Slot * According to different CPUs will have different speeds. * PCIe 4.0 speed only for AMD® Ryzen™ 3rd Gen Matisse. * When using PCIe x 1 slots (PEX1_1/ PEX1_2/ PEX1_3 ), PCIe x 16 slot (PEX16_SB_1) will be adjusted to x1 lanes. |
| Audio | ALC1150 7.1 Channels, High Definition Audio, Hi-Fi(Front) |
| External Features | |
| Dimensions | ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L ) |
| NETWORK & WIRELESS CONNECTIVITY | |
| LAN | RTL8125 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability Supports Realtek 2.5GbE LAN |
| PORTS, CONNECTORS & SLOTS | |
| Supported Storage | 6 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 2 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD Supports SATA III (6.0Gb/s) SSD * M.2 (M Key) Socket: The bandwidth is depended on CPU. Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse. * When M2_PCIe-SATA2 slot is occupied by SATA mode, the SATA_2L connector will be disabled. |
| USB (s) | 1 x USB 3.2 (Gen2) Type-C port (1 on rear I/O) 1 x USB 3.2 (Gen2) Type-A port (1 on rear I/O) 6 x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers) |
| Internal I/O Connectors | 6 x SATA III (6.0Gb/s) Connector 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (OPT_FAN1) 2 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x S/PDIF out Connector 1 x COM Port Header 2 x LED Header (5V) 1 x LED Header (12V) |
